Single fabric deployment - HA cluster

Figure 91
host and target edge switches in a highly redundant core-edge topology.
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
53-1002721-01

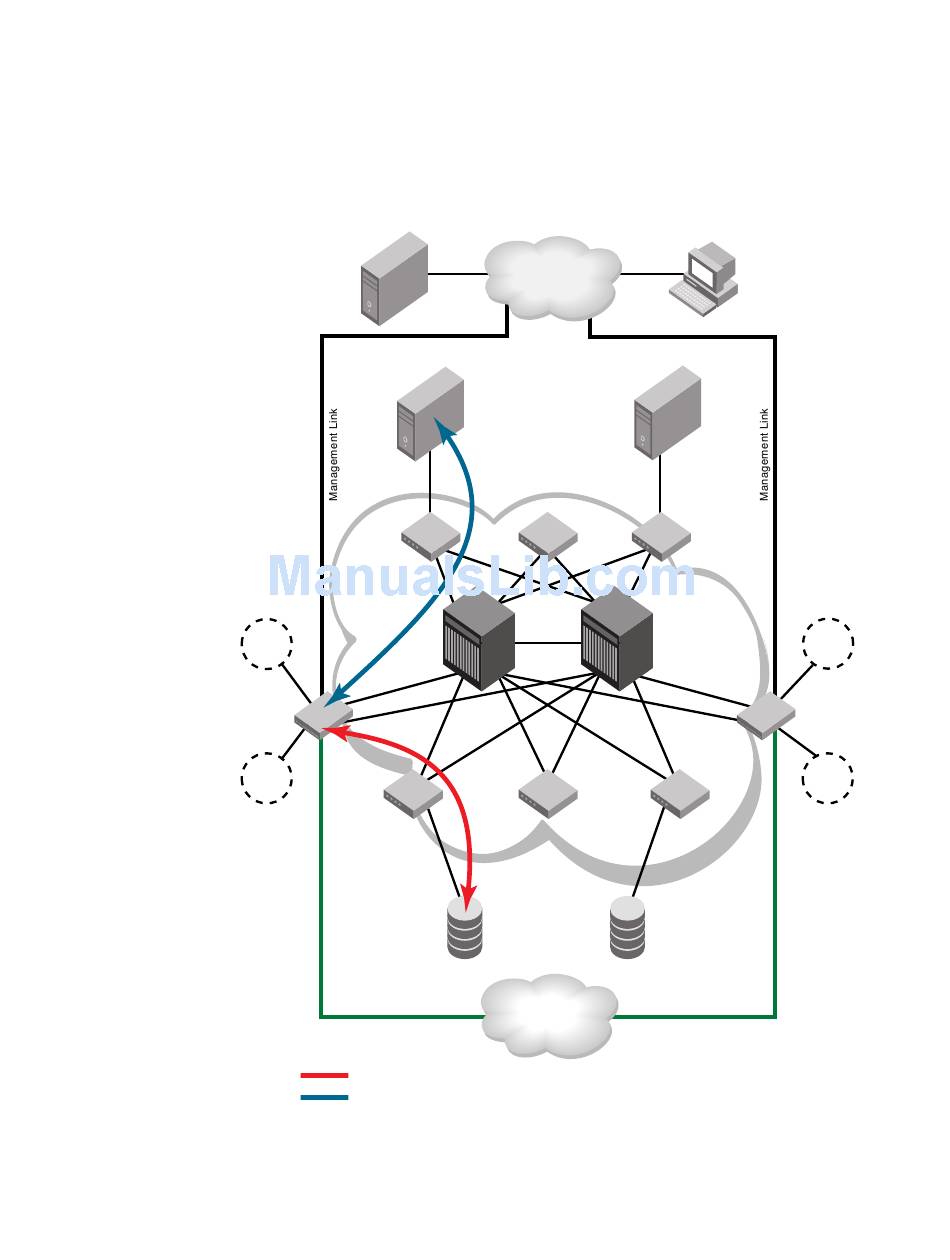

shows an encryption deployment in a single fabric with dual core directors and several
Key Management
Appliance
or Key Vault
Host Edge
Switch
Virtual
Target
Encryption
Switch
Target
Virtual
Edge
Initiator
Switch
Cluster Link
Ciphertext
Cleartext
FIGURE 91

Single fabric deployment - HA cluster

Single fabric deployment - HA cluster
