Servo/Inverter Settings; Devicenet Connection; Rs232C Connection - Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual

Servo/Inverter
DeviceNet
Connection
Settings
Right-click on 3G3MV-
PDRT2 and select [Start
Special Application]
Select [Start with Setting
Inherited]
CX-Drive starts and
Inverter property
settings are shown
Save data
RS232C
Connection
Starting CX-Drive via DeviceNet
Starting CX-Drive via DeviceNet

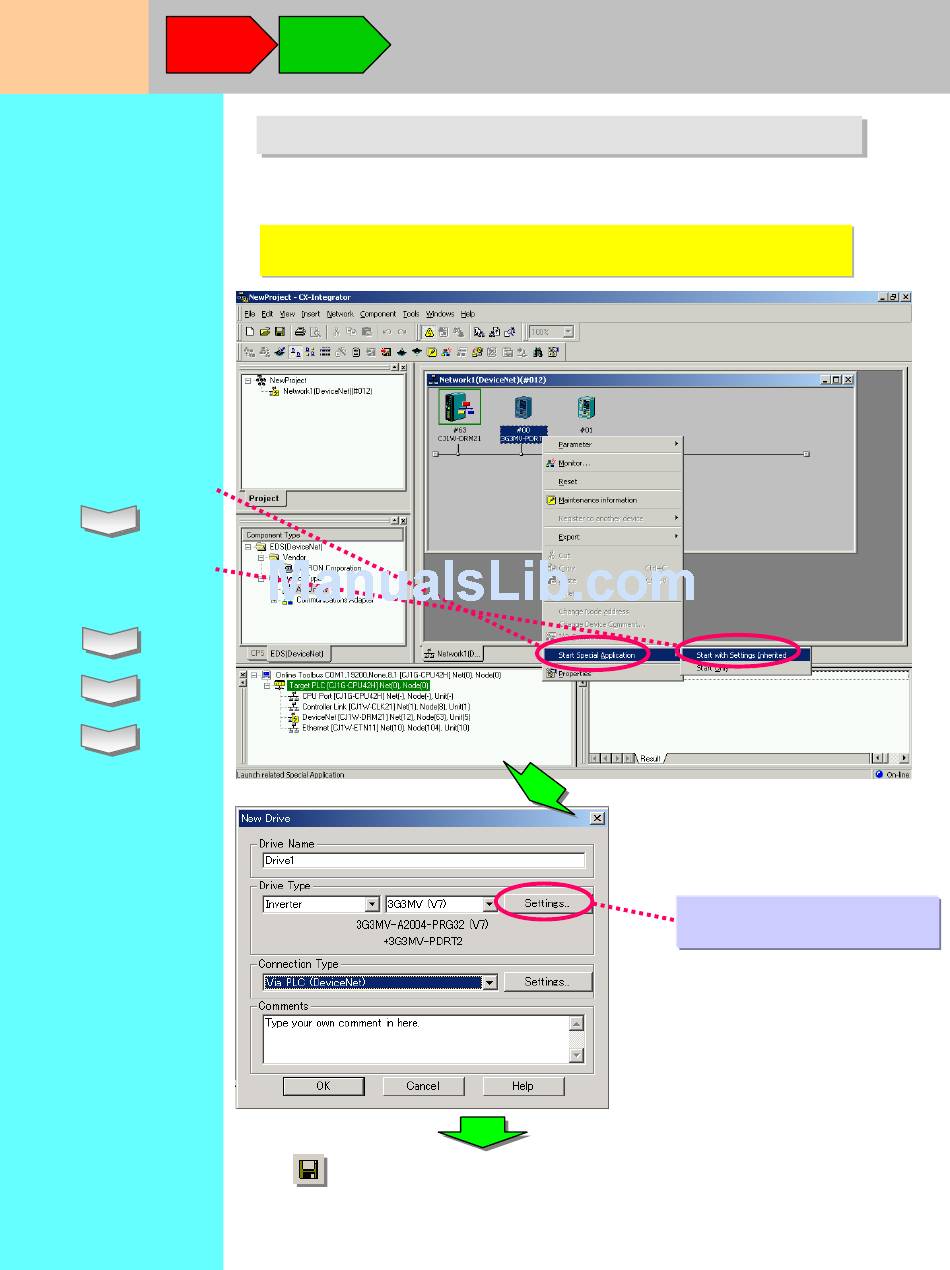

Setup Drives on DeviceNet and start CX-Drive on CX-Integrator window.
An example of 3G3MV-PDRT2 is shown below.
When opening a stored data file after starting the dedicated tool, select [Start
Only]. If [Start with Setting Inherited] is selected, new data is created.
Click and save the data.
If more than one drive setting data is edited, drive data is saved by drive type and a total
overview is saved in a work file.
Select Settings to set
detailed Inverter specifications.
