Start-Up
Start-Up
の立ち上げ

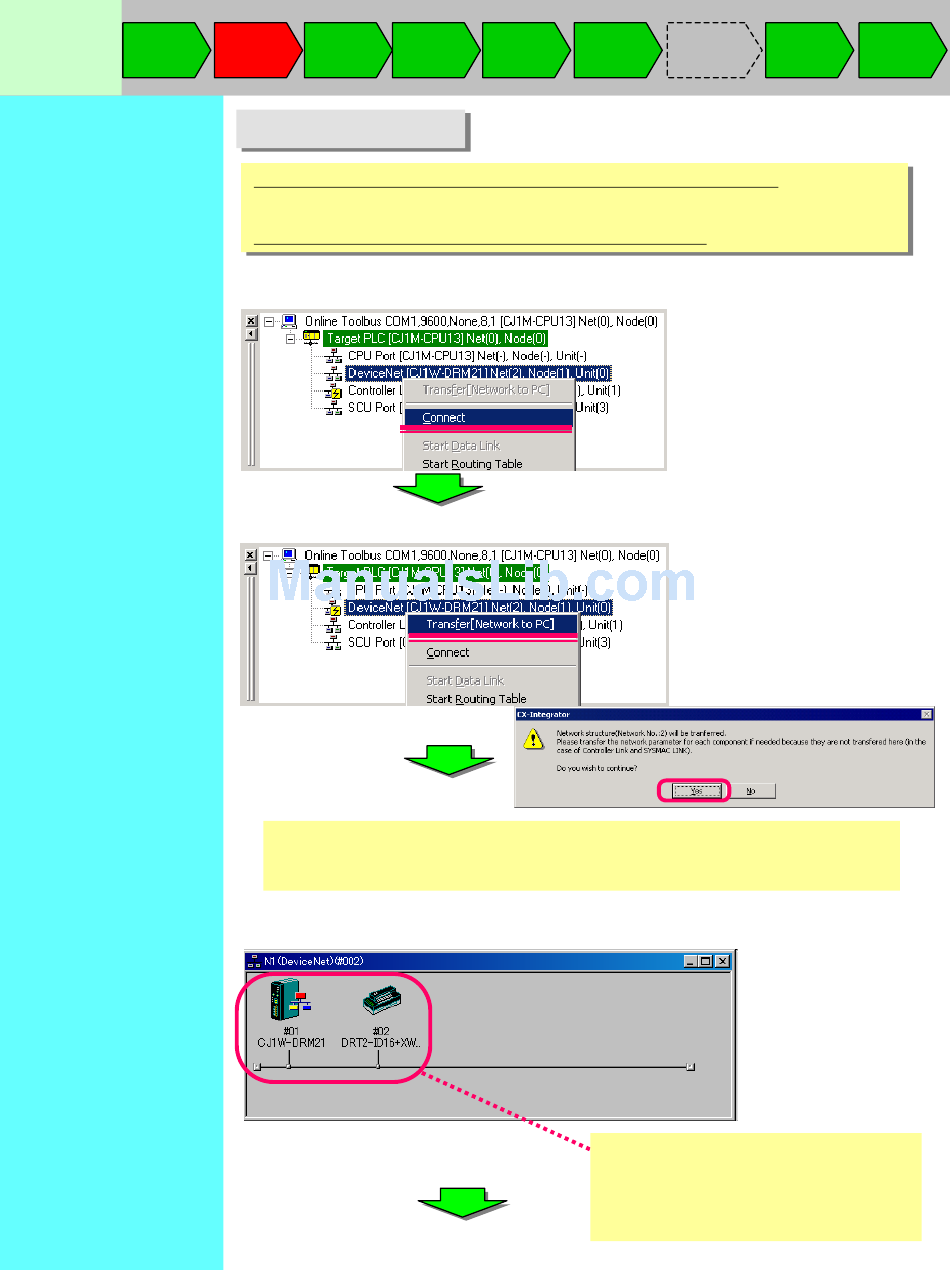

Right-click a DeviceNet
Unit under Target Device
in the online connection
information window, then
select [Connect]
DeviceNet NT Link
Start-Up Start-Up
DeviceNet Start-Up
DeviceNet Start-Up
Remove DeviceNet communications errors and establish communications.
Remove DeviceNet communications errors and establish communications.
⇒ Check DeviceNet Unit's 7SEG indication and ON state of MS/NS LED.
⇒ Check DeviceNet Unit's 7SEG indication and ON state of MS/NS LED.
⇒ Check Slave Unit configuration trough CX-Integrator.
⇒ Check Slave Unit configuration trough CX-Integrator.
Create a scan list of DeviceNet and determine the memory map.
Create a scan list of DeviceNet and determine the memory map.
(1) Connect to PLC online, then connect to DeviceNet through the online connection information
window.
(2) Next, upload the network configuration information of DeviceNet.
In this example, although one Master Unit (node number #01) and two Slave Units
(node number #02, #03) are actually connected, assume in this start-up example that
one Slave Unit (#03) is not connected due to disconnection.
(3) After transfer is confirmed, connected devices on the current DeviceNet network are
displayed as shown below.
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y
Check if a Slave device on the remote I/O
communications actually wired is
recognized. Master Unit (#01) and Slave
Unit (#02) are recognized, while another
Slave Unit (03) is not recognized.
