Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual page 52

各種PLC
PLC Network
ネットワーク PLC
Start-Up
Start-Up
の立ち上げ

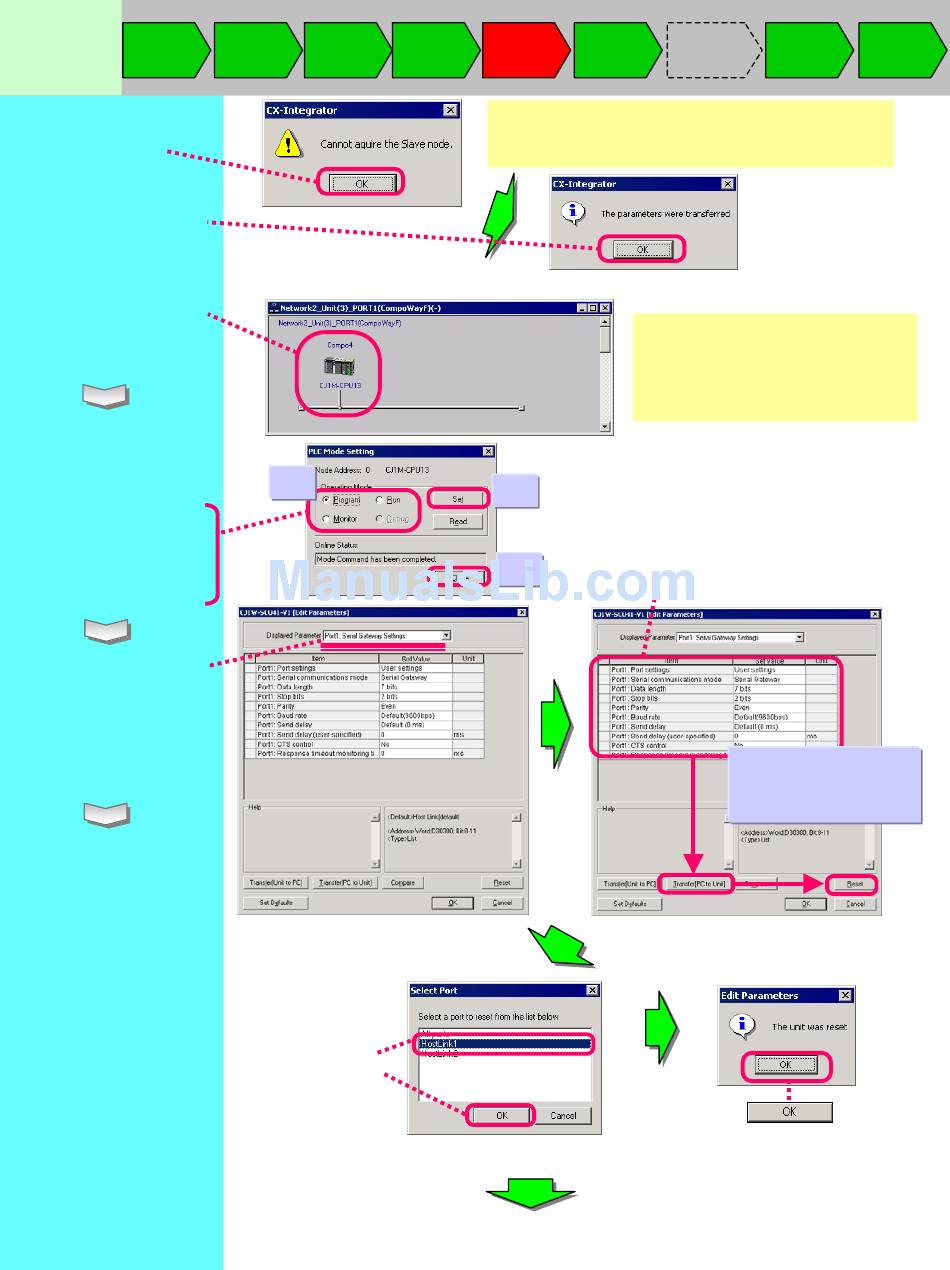

Click [OK]
Then click the [OK] button
in the dialog box indicating
completion of transmission
Place the cursor on CJ1M-
CPU in the [Network
Structure] window and
double-click
From the menu, select
[Component | Mode Setting]
to display the [PLC Mode
Setting] dialog box
(1) Select [Program] for
operation mode
(2) Click [Set]
(3) Click [Close] after
changing
From the [Display
Parameter] pull-down menu,
select [Port1: Serial
Gateway Settings]
Click [OK] in the [Edit
Parameters] dialog box and
close the dialog box
Perform the step (2) in the
previous page
Click [OK] button in a dialog
box indicating completion of
transmission
DeviceNet NT Link
Start-Up Start-Up
(3) Adjust the serial communications board parameters settings to those of the CompoWay/F.
(1)
Select
[HOSTLINK1]
and click [OK]
button.
(4) Re-upload the network configuration information of CompoWay/F. Perform the step (2)
from the previous page.
Only the Units for which connection is established are displayed in the [Network Structure]
window, as shown on the next page.
Controller
CompoWay
Link
/F Start-Up
Start-Up
This dialog box is displayed because communication is
not established between the serial communications
Unit and temperature controllers.
(2)
(3)
Saving Equipment
System Disass'y /
Config. Reass'y
The [Network Structure] window
shows a CPU Unit (CJ1M-CPU13)
that has a serial communications
Unit, but neither of the two
temperature controllers.
Configure [Port1: Port settings] to [Manual]
and [Port1: Serial communications mode] to
[Serial Gateway]. Check other settings as
well, and change if necessary.
Click the reset button to
enable settings. Click [OK]
in the reset confirmation
message dialog box.
Confirm that settings are correct, then select the
[Transfer [PC to Unit]] button. Click [OK] in the
transmission confirmation message dialog box.
Click
System Controller
Config. Link
Verification Diagnosis
