Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual page 50

各種PLC
PLC Network
ネットワーク PLC
Start-Up
Start-Up
の立ち上げ
Select
[Transfer [Network to PC]]
Click [Transfer]
DeviceNet NT Link
Start-Up Start-Up

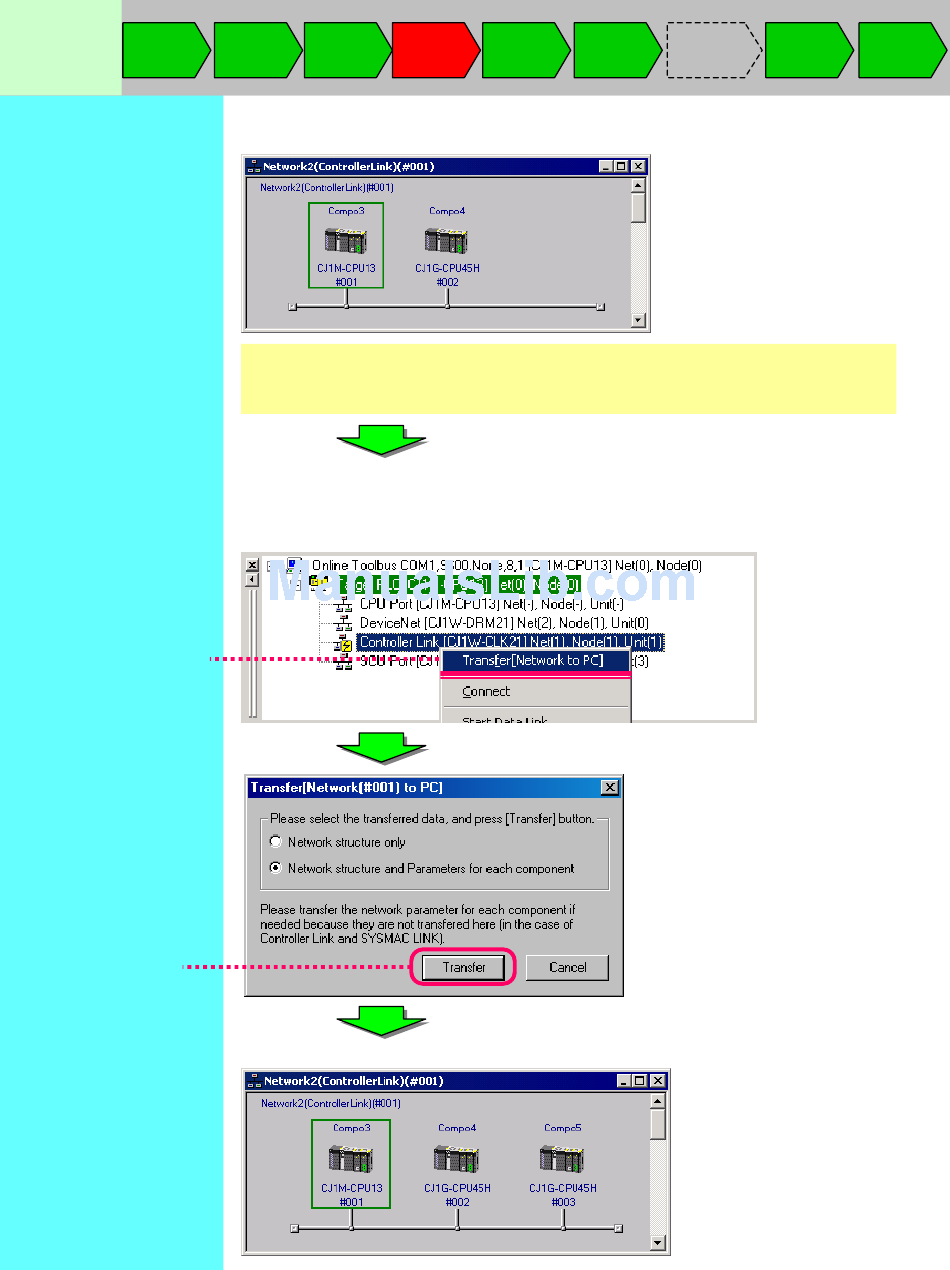

(3) After the transfer is confirmed, connected devices on the current Controller Link network are
displayed as shown below.
In this example, although three PLCs are actually connected through the Controller Link,
in this start-up example explanation assume that only two PLCs are displayed.
(One PLC did not join the communications due to incorrect Routing Table settings)
(4) Check the Routing Table and configure it correctly.
See "Confirming the Routing Table is not Configured" for configuration details.
(5) Re-upload the Controller Link network configuration information.
(6) Send the network configuration from the network to the personal computer.
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y
System Controller
Config. Link
Verification Diagnosis
