Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual page 48

各種PLC
PLC Network
ネットワーク PLC
Start-Up
Start-Up
の立ち上げ

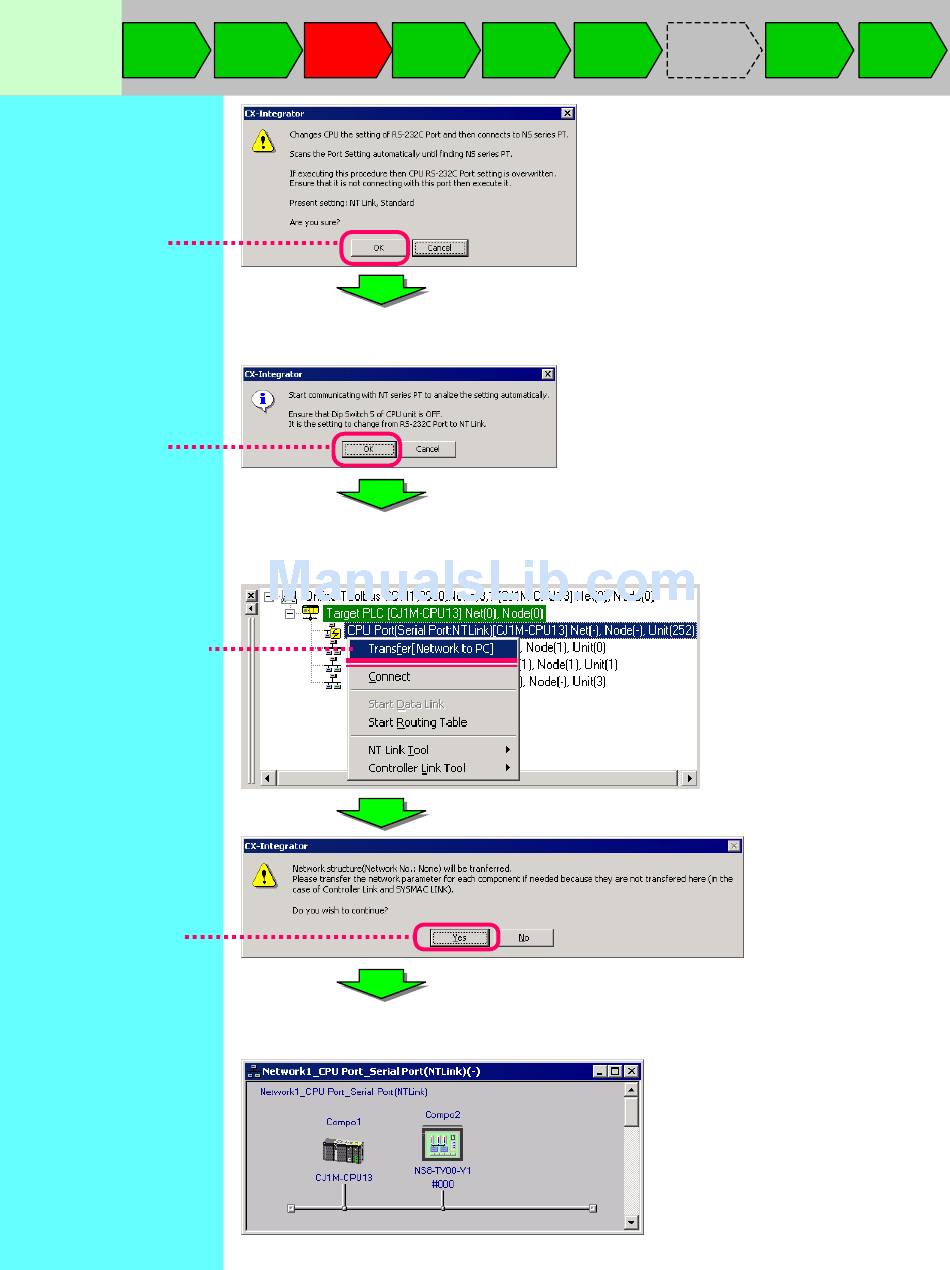

Click [OK]
Click [OK]
Select
[Transfer [Network to PC]]
Click [Yes]
DeviceNet NT Link
Start-Up Start-Up
(4) Check the CPU DIP switch.
• Follow the on screen instructions to change the DIP switch.
(5) Screen message Connecting . . . is now cleared.
(6) Next, upload the network configuration information of NT Link.
(7) After the transfer is confirmed, connected devices on the current NT Link network are
displayed as shown below.
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y
System Controller
Config. Link
Verification Diagnosis
