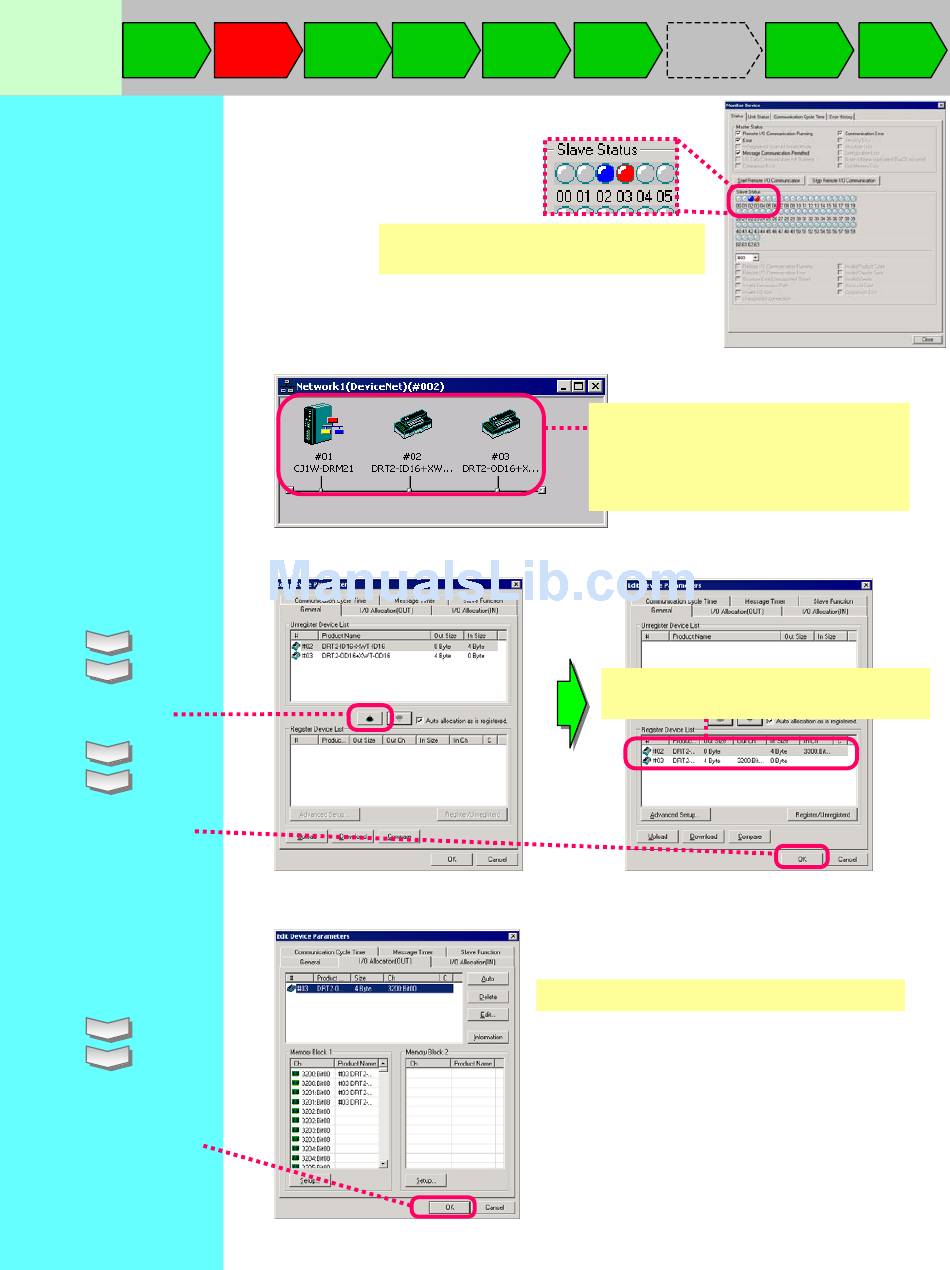

Right-click on the Master
Unit icon and select
[Monitor] to display the
device monitor screen.
Select [Status] tab
Perform the step (2) from
the previous page
Double-click a Master Unit
(CJ1W-DRM21) icon
Click twice
Click the [OK] button
Right-click the Master Unit
and select [Parameters] >
[Edit]
Edit the parameters, then
click the [OK] button
Select [Network] >
[Transfer [PC to Network]]
DeviceNet NT Link
Start-Up Start-Up
(4) Check the error on the device monitor screen.
You can check the Slave status on
the device monitor screen as well.
Slave Unit (#02) is recognized, while the
other Slave Unit (03) is not recognized.
(5) Wire Slave Unit (#03) correctly.
(6) Re-upload the network configuration information of DeviceNet.
(7) Configure DeviceNet remote I/O communications (free assignment) and register the Slave
to the Master.
(8) Configure assignment of Slaves to areas of a CPU Unit.
If necessary, configure the Slave parameters as well.
(9) Start remote I/O communication.
Controller
CompoWay
Link
/F Start-Up
Start-Up
<Master Unit parameter edit dialog box>
Saving Equipment
System Disass'y /
Config. Reass'y
Now it can be confirmed that Slave
devices on the remote I/O
communications have been recognized
and communications have been
established.
Two Slaves are now registered to the
Master.
