Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual page 51

各種PLC
PLC Network
ネットワーク PLC
Start-Up
Start-Up
の立ち上げ
Right-click an SCU port in
the online connection
information window, then
select [Connect]
Select SCU port (140)
Select CompoWay/F
Right-click an SCU port in
the online connection
information window, then
select [Transfer [Network
to PC]]
Click [Yes] in the message
dialog box
Select [Selection], enter
1 for minimum and 2 for
maximum values, then
click the [OK] button
DeviceNet NT Link
Start-Up Start-Up
CompoWay/F Start-Up
CompoWay/F Start-Up
Remove CompoWay/F communications errors and establish communications.
Remove CompoWay/F communications errors and establish communications.
⇒ Check CompoWay/F configuration through CX-Integrator.
⇒ Check CompoWay/F configuration through CX-Integrator.
⇒ Configure serial communications Unit parameters.
⇒ Configure serial communications Unit parameters.
⇒ Configure temperature controller communications.
⇒ Configure temperature controller communications.
This example explains the start-up of a serial communications Unit with two temperature
controllers (E5CN) connected via CompoWay/F.
• Two temperature controllers (E5CN) are connected to serial communications Unit
(CS1W-SCU41-V1) port no. 1 via RS485. Communication Unit numbers are #001 and #002.
• Communication settings of the serial communications Unit and the two temperature controllers are
unmatched.
• Communication settings between the two temperature controllers are unmatched as well.

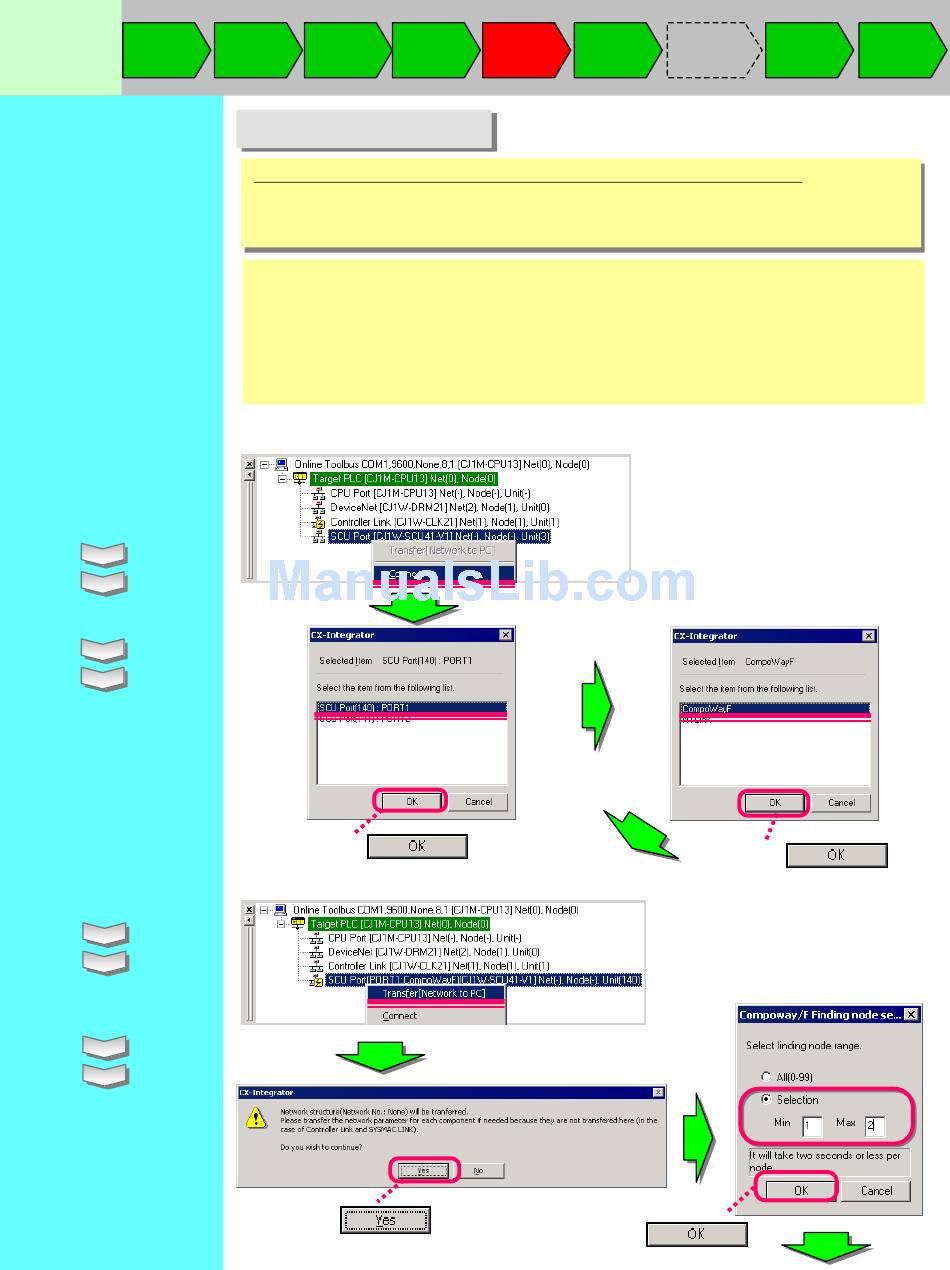

(1) Connect to PLC online, then connect to a CPU Unit through the online connection
information window.
Click
(2) Upload the CompoWay/F network configuration information.
Click
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y
Click
Click
System Controller
Config. Link
Verification Diagnosis
