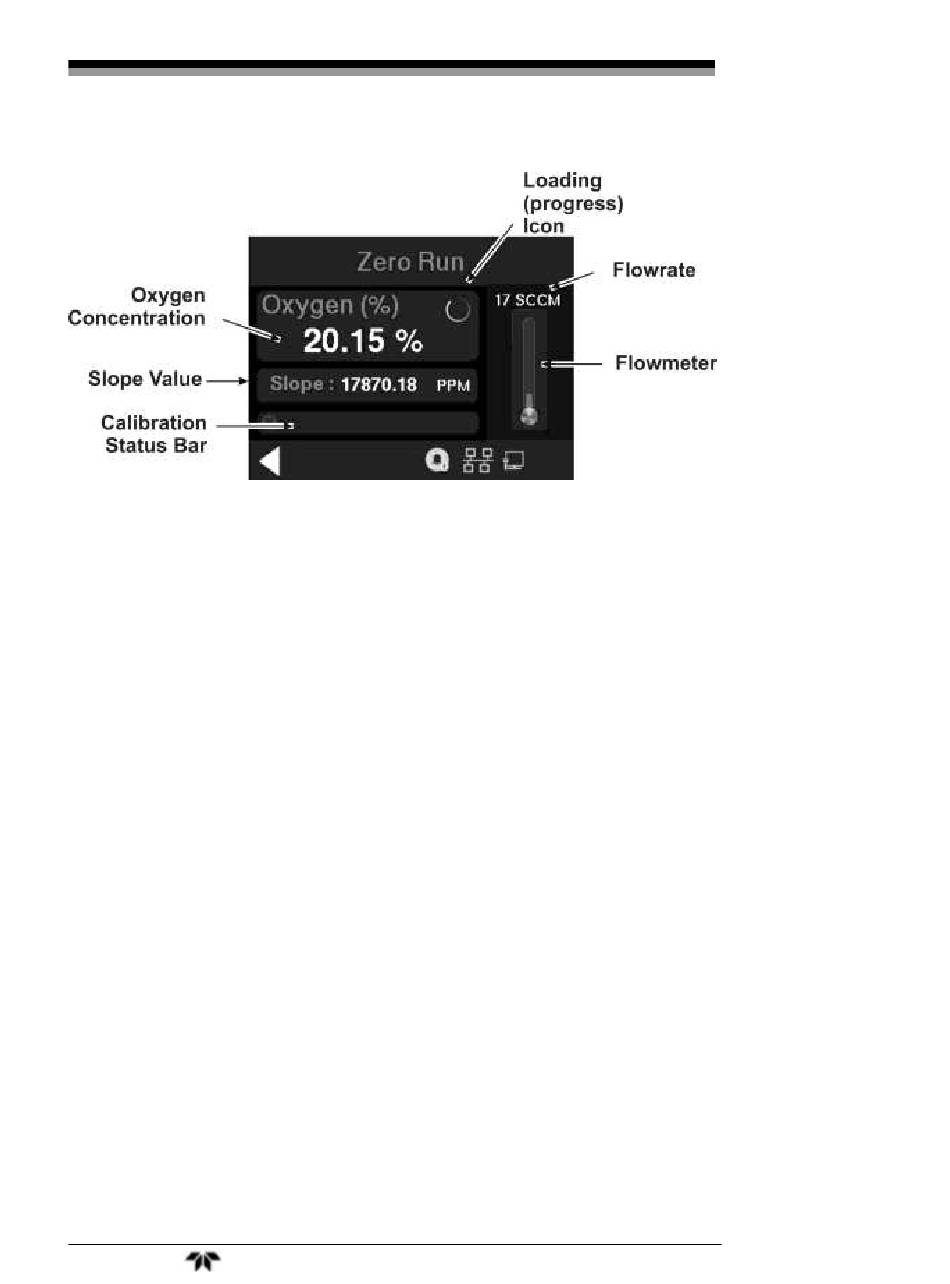

Zero Calibration Run screen:
The following items are contained within the Zero calibration auto
mode run screen:
1. Calibration is in progress icon.
2. Oxygen % values
3. Slope values
4. Calibration status bar
5. Flowmeter with flowrate and status
The Calibration in Progress icon will appear only in the Auto
calibration mode. It means that a calibration is in progress. When the
calibration is finished or if an error occurs, the icon will stop refreshing.
The current oxygen concentration (in percent) will be updated in
the Oxygen % field as will the slope as calibration proceeds.
The flowmeter display is used to show the current flow rate and the
trend in flow (fluctuating, stable, etc.). It shows the current flow values
based on scale factor. Low scale limit = 0 and the High scale limit =
100.
The Calibration status bar displays calibration progress messages as
well as any errors that may occur.
1. Message 1: "Calibration Progress" - This message displays
in the Status bar as the calibration begins.
2. Message 2: A calibration countdown displays as:
"Calibration 5 Left", "Calibration 4 Left" etc. and is based
on the currently calculated gain offset.
