Ethernet Port Configuration Screen

6.3 ETHERNET PORT CONFIGURATION SCREEN
When to Use
To change the operating mode of a specific Ethernet interface, such as the speed, duplex,
auto-negotiation, advertised ability, and the flow control settings. Configuring optional Fast
Ethernet or Gigabit Ethernet ports is also done on this screen.
How to Access
Use the arrow keys to highlight the desired Ethernet port on the Ethernet Interface Configuration
screen and press ENTER. The Ethernet Port Configuration screen,
selected port.
Screen Example

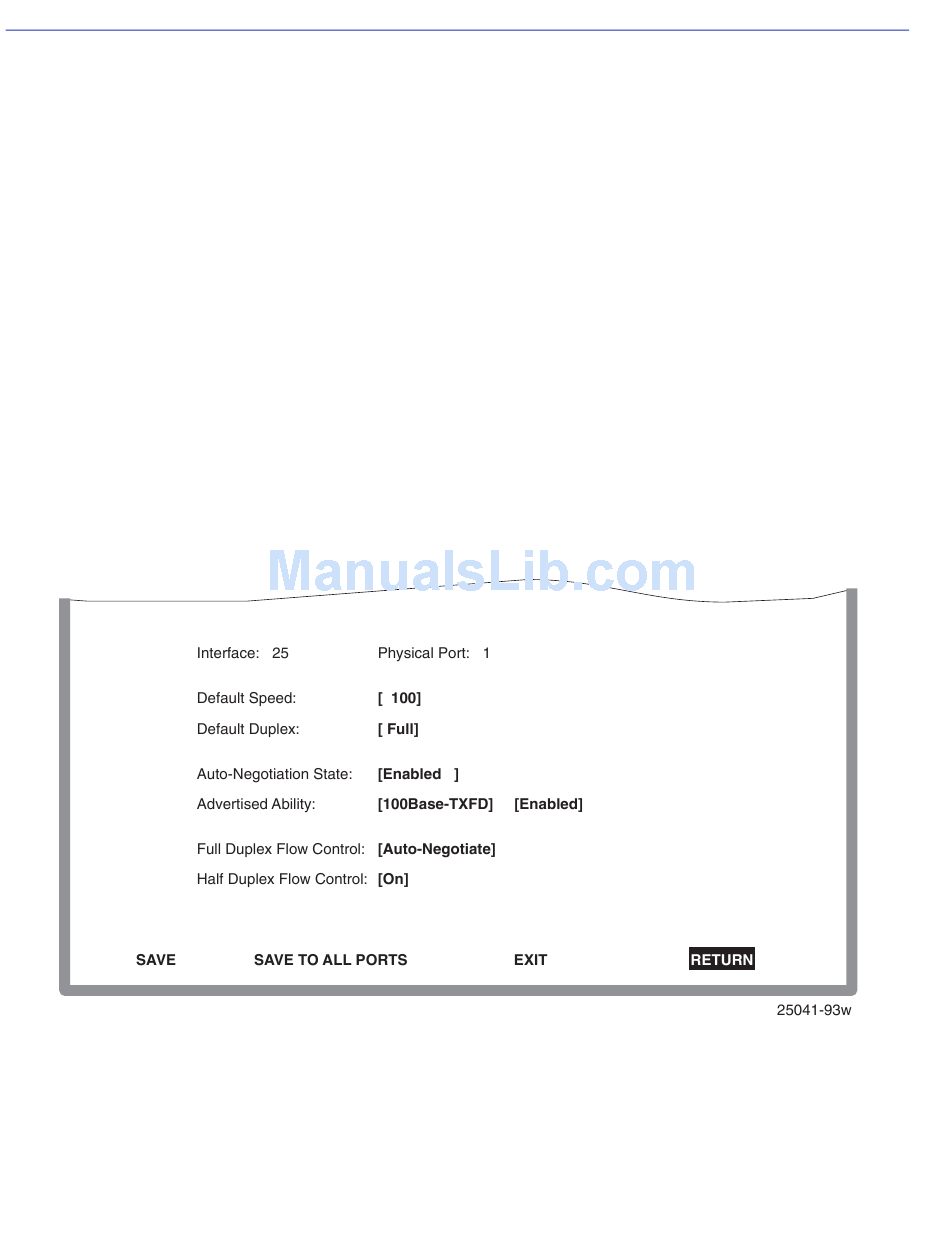

Figure 6-4 Ethernet Port Configuration Screen
6-8 Port Configuration Menu Screens
Figure 6-4, displays for the
