802.1Q VLAN Configuration Menu Screen
Screen Example

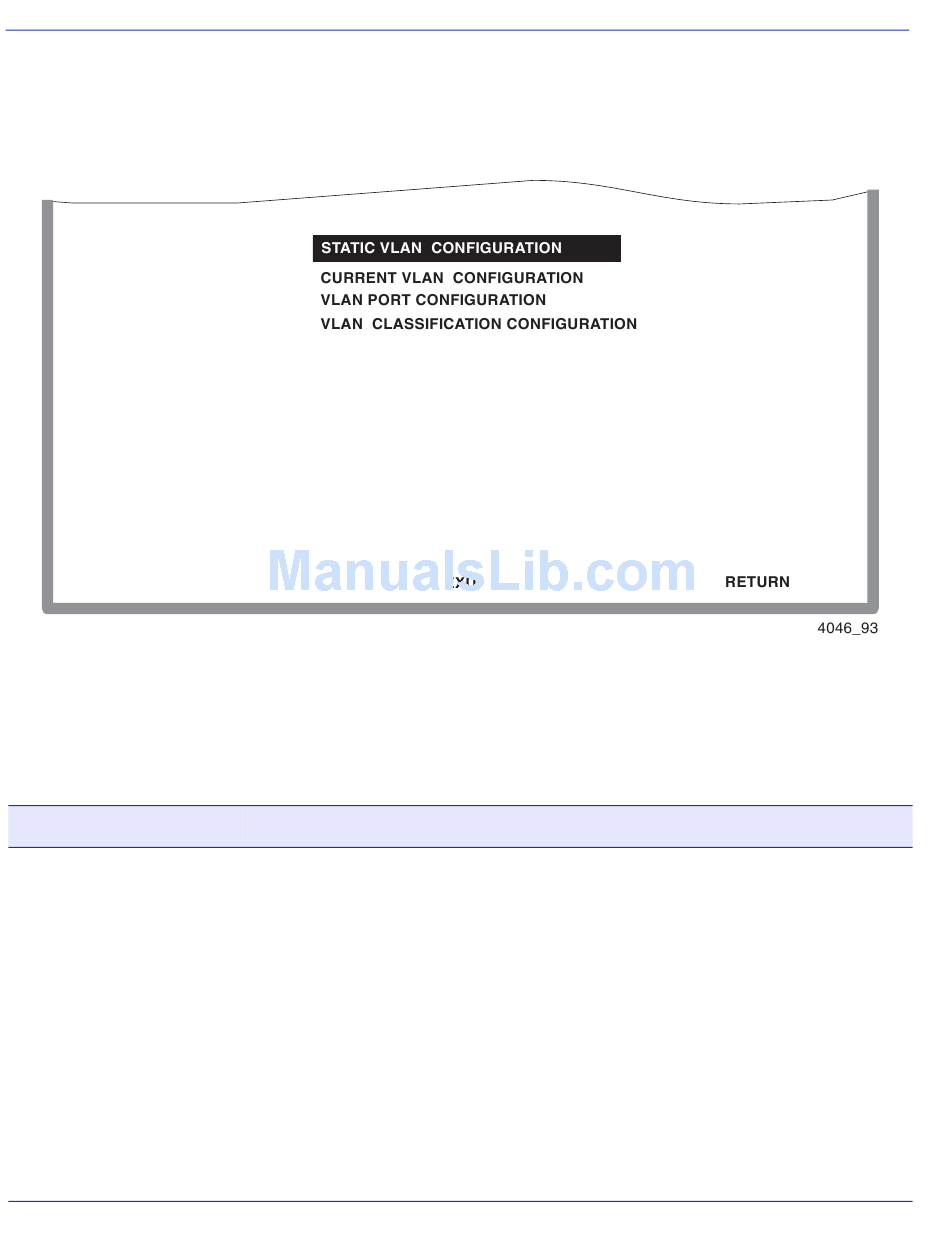

Figure 8-2 802.1Q VLAN Configuration Menu Screen
Menu Descriptions
Refer to
Table 8-1
for a functional description of each menu item.
Table 8-1 802.1Q VLAN Configuration Menu Screen Menu Item Descriptions
Menu Item
STATIC VLAN
CONFIGURATION
8-4
802.1Q VLAN Configuration Menu Screens
Screen Function
Used to view, add, name, enable, or disable static VLANs within the
switch module, and also display the Filter Database ID (FDB ID)
associated with each VLAN. This screen also allows you to access the
Static VLAN Egress Configuration screen.
The Static VLAN Egress Configuration screen enables you to set one
or more ports associated with a VLAN to transmit frames according to
an egress setting (UNTAGGED, TAGGED, or NO).
For more information on the Static VLAN Configuration screen, refer
to
Section
8.3.
For more information on the Static VLAN Egress Configuration
screen, refer to
Section
8.4.
