Link Aggregation Screen (802.3ad Main Menu Screen)
6.8.2.1

802.3ad Aggregator Details Screen

When to Use
To see the current parameter details of the Aggregator Instance selected on the 802.3ad Aggregator
screen described in
How to Access
Use the arrow keys to highlight the line containing the Aggregator of interest on the 802.3ad
Aggregator screen and press ENTER. The 802.3ad Aggregator Details screen,
displays.
Screen Example

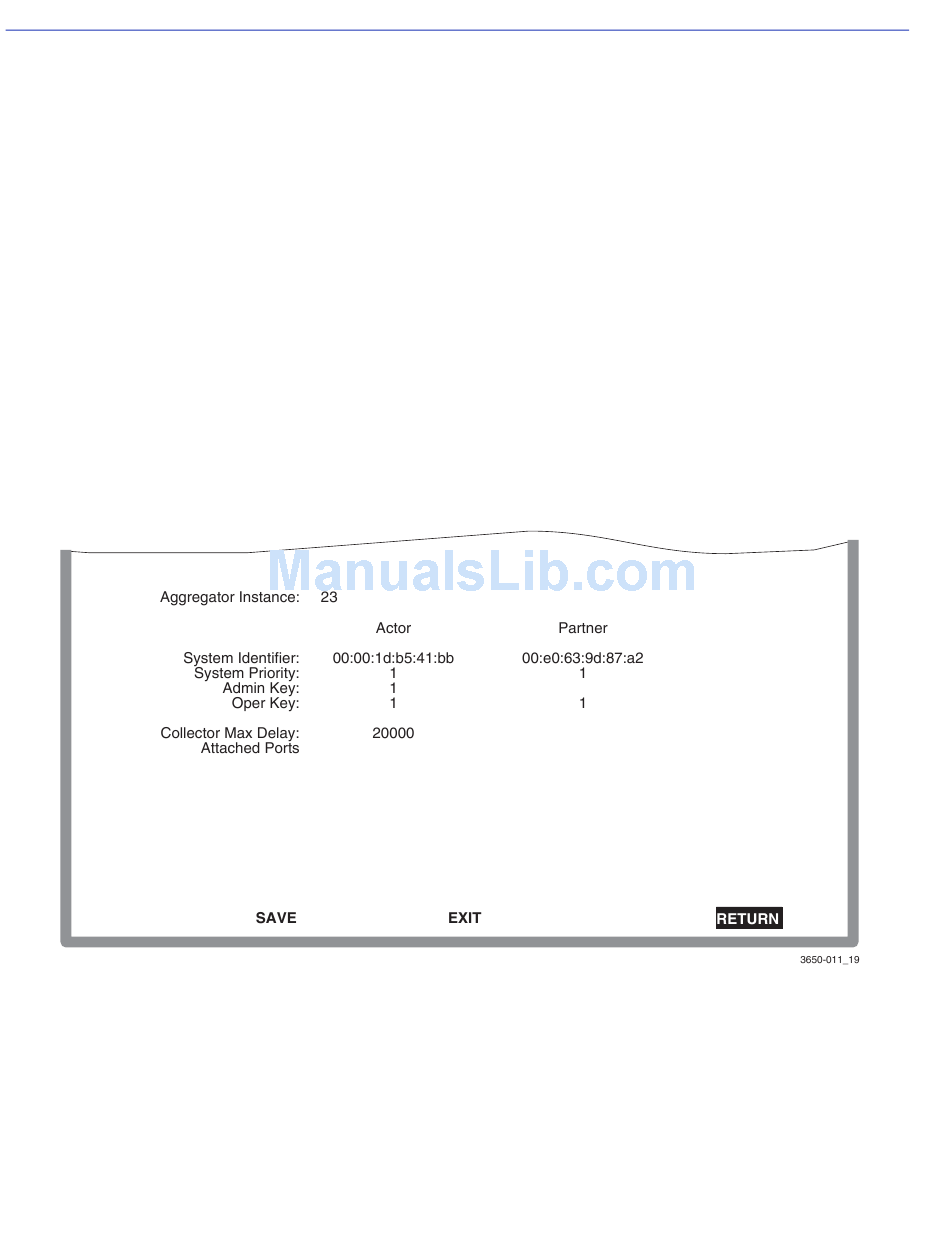

Figure 6-13 802.3ad Aggregator Details Screen
Field Descriptions
Refer to Table 6-12
6-42 Port Configuration Menu Screens
Section 6.8.2.
for a functional description of each screen field.
Figure 6-13,
