Avaya Communication Server 1000M Single Group Manual page 93

Mini-Carrier Remote Fundamentals

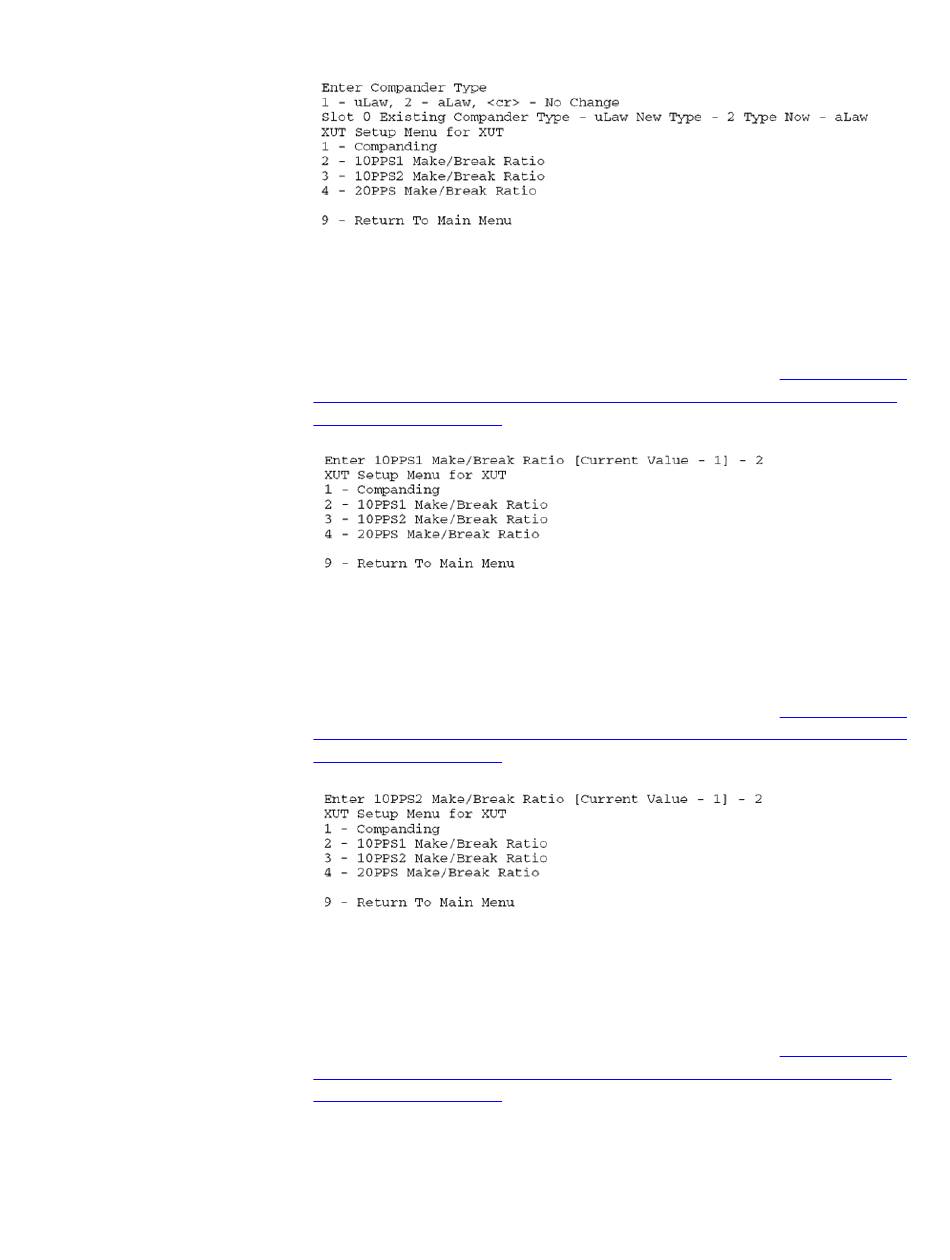

Figure 44: SET ESAM: PHONE PARAMETERS: XUT
PARAMETERS:COMPANDING screen
b. 10PPS1 Make/Break Ratio — This variation of the SET ESAM:XUT
PARAMETERS command allows the user to change the 10PPS1 Make/
Break Ratio from its default of 0. Its display is similar to
ESAM: PHONE PARAMETERS: XUT PARAMETERS:10PPSI MAKE/
BREAK RATIO screen
Figure 45: SET ESAM: PHONE PARAMETERS: XUT PARAMETERS:10PPSI
MAKE/BREAK RATIO screen
c. 10PPS2 Make/Break Ratio — This variation of the SET ESAM:XUT
PARAMETERS command allows the user to change the 10PPS2 Make/
Break Ratio from its default of 0. Its display is similar to
ESAM: PHONE PARAMETERS: XUT PARAMETERS: 10PPS2 MAKE/
BREAK RATIO screen
Figure 46: SET ESAM: PHONE PARAMETERS: XUT PARAMETERS:
10PPS2 MAKE/BREAK RATIO screen
d. 20PPS Make/Break Ratio — This variation of the SET ESAM:XUT
PARAMETERS command allows the user to change the 20PPS Make/
Break Ratio from its default of 0. Its display is similar to
ESAM: PHONE PARAMETERS: XUT PARAMETERS:20PPS MAKE/
BREAK RATIO screen
on page 93.
on page 93.
on page 94.
Host MMI interface
Figure 45: SET
Figure 46: SET
Figure 47: SET
March 2013 93
