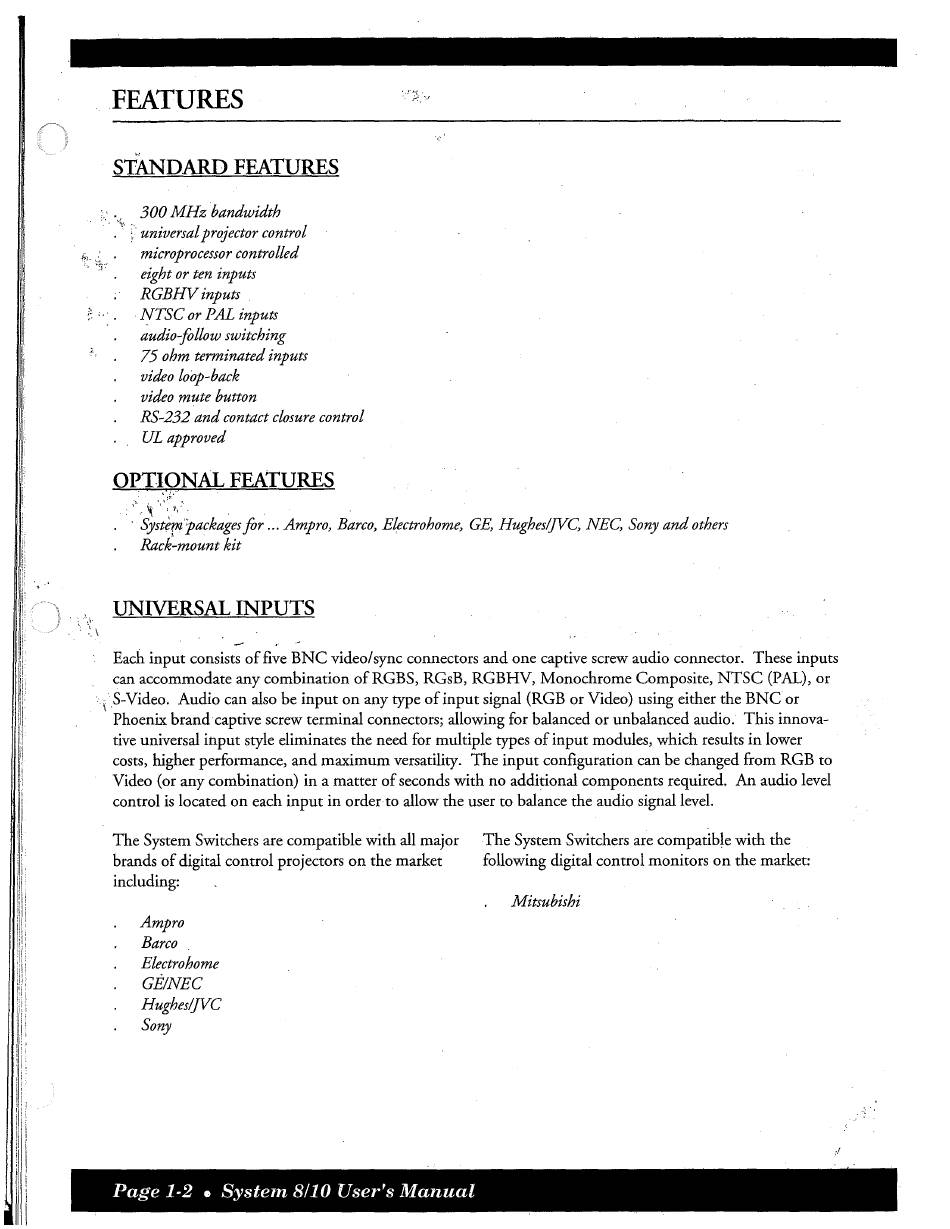

FEATURES
STANDARD FEATURES
300 MHz bandwidth
· · ."'' ( universal projector control
microprocessor controlled
eight or ten inputs
RGBHV inputs
f!TSC or PAL inputs
audio-follow switching
75 ohm terminated inputs
video loop-back
video mute button
RS-232 and contact closure control
UL approved
OPTIONAL FEATURES
,-
..
_
~
·--:
.,,:-.
· Systep<t'packages for ... Ampro, Barco, Electrohome, GE, Hughesl]VC, NEC, Sony and others
Rack-mount kit
UNIVERSAL INPUTS
Each input consists of five BNC video/sync connectors and one captive screw audio connector. These inputs
can accommodate any combination ofRGBS, RGsB, RGBHV, Monochrome Composite, NTSC (PAL), or
1 _S-Video. Audio can also be input on any type of input signal (RGB or Video) using either the BNC or
Phoenix brand captive screw terminal connectors; allowing for balanced or unbalanced audio. This innova-
tive universal input style eliminates the need for multiple types of input modules, which results in lower
costs, higher performance, and maximum versatility. The input configuration can be changed from RGB to
Video (or any combination) in a matter of seconds with no additional components required. An audio level
control is located on each input in order to allow the user to balance the audio signal level.
The System Switchers are compatible with all major
brands of digital control projectors on the market
including:
Ampro
Barco
Electro home
GE/NEC
Hughesl]VC
Sony
Page 1-2 • System 8/10 User's Manual
The System Switchers are compatible with the
following digital control monitors on the market:
Mitsubishi
