AMPRO (continued)
·•·;--
Ampro Connection - Multiple Switchers / Multiple Projectors
PROJECTOR ADDRESS #00
_· _ · _ · ~ · £:+i - ,.;;,~~>
O
El
!OCIIIlllillllii
t
nl
·
!OCIIIlllIIIllii
I
--
- I
i!IIIIlllIIIllii
.
-=----~
I
[ ' : 'f -
_l_J
--'
! .
I
__LJ
PROJECTOR ADDRESS #01
PROJECTOR ADDRESS #02
Ampro projectors have
duplex RS-232 communica-
tions, allowing multiple
projectors to be addressed and
controlled by one controller.
Each projector has a separate
switcher to provide source
selection. Switchers and
projectors must have corre-
sponding unit numbers for
proper system operation ...
that is, projector #00 receives
input from switcher #0 I,
projector #01 from switcher
#02, etc., see Fig6-10.

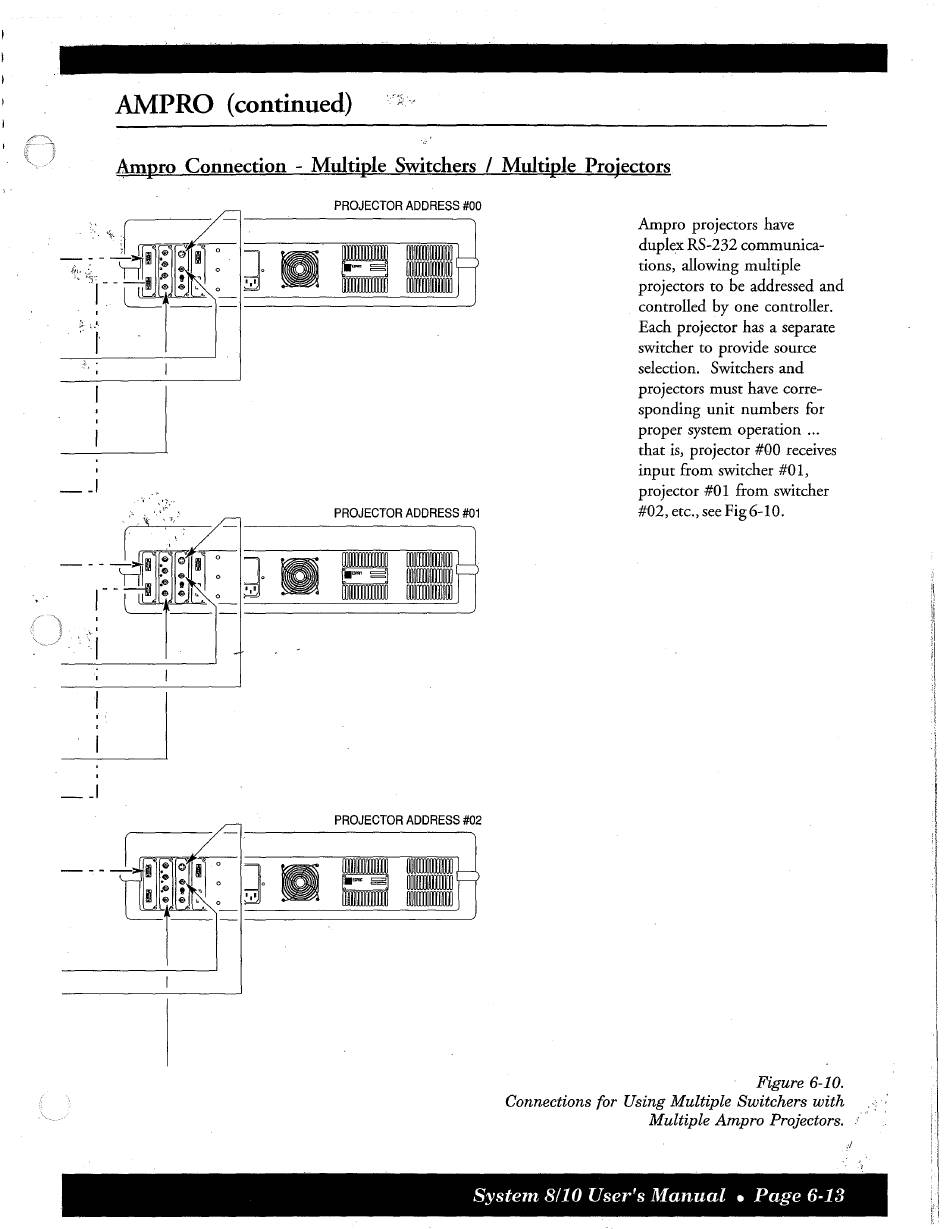

Figure 6-10.
Connections for Using Multiple Switchers with
Multiple Ampro Projectors.
System 8/10 User's Manual • Page 6-13
