The analog connections can be either FXO or FXS:
FXO ports connect to analog trunk lines from the Public Switched
■
Telephone Network (PSTN).
FXS ports connect to analog telephones, fax machines, analog
■
modems, and door intercoms/openers.
The V6000 platform can be used with additional external gateways to
support further FXO or FXS connections, or T1/E1 PSTN lines at the same
site.
The VCX IP Telephony and IP Messaging applications and the Media
Gateway are separate functional units housed in the same chassis. The
applications and the Media Gateway must be configured separately.

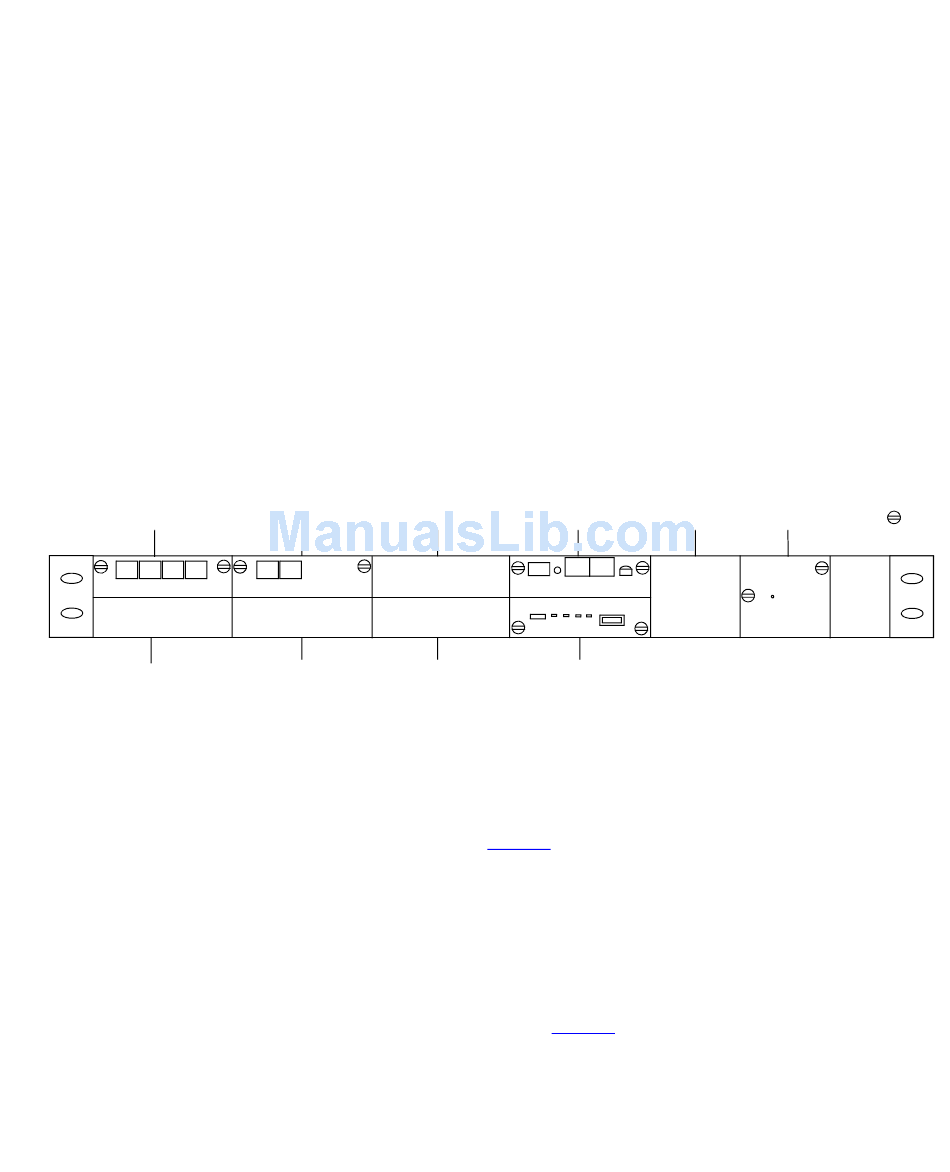

Figure 1 V6000 Front Panel
1
2
7
8
Item
1
2
3
4
5
6
7
8
9
10
3
9
Description
Four port FXS module
Two port FXO module
Expansion slot (FXO or FXS)
CPU module (see Figure 2
Expansion slot (power)
Power module
Expansion slot (FXO or FXS)
Expansion slot (FXO or FXS)
Expansion slot (FXO or FXS)
Connections module (see
Gateway Installation
5
4
10
for an expanded view)
Figure 3 for an expanded view)
