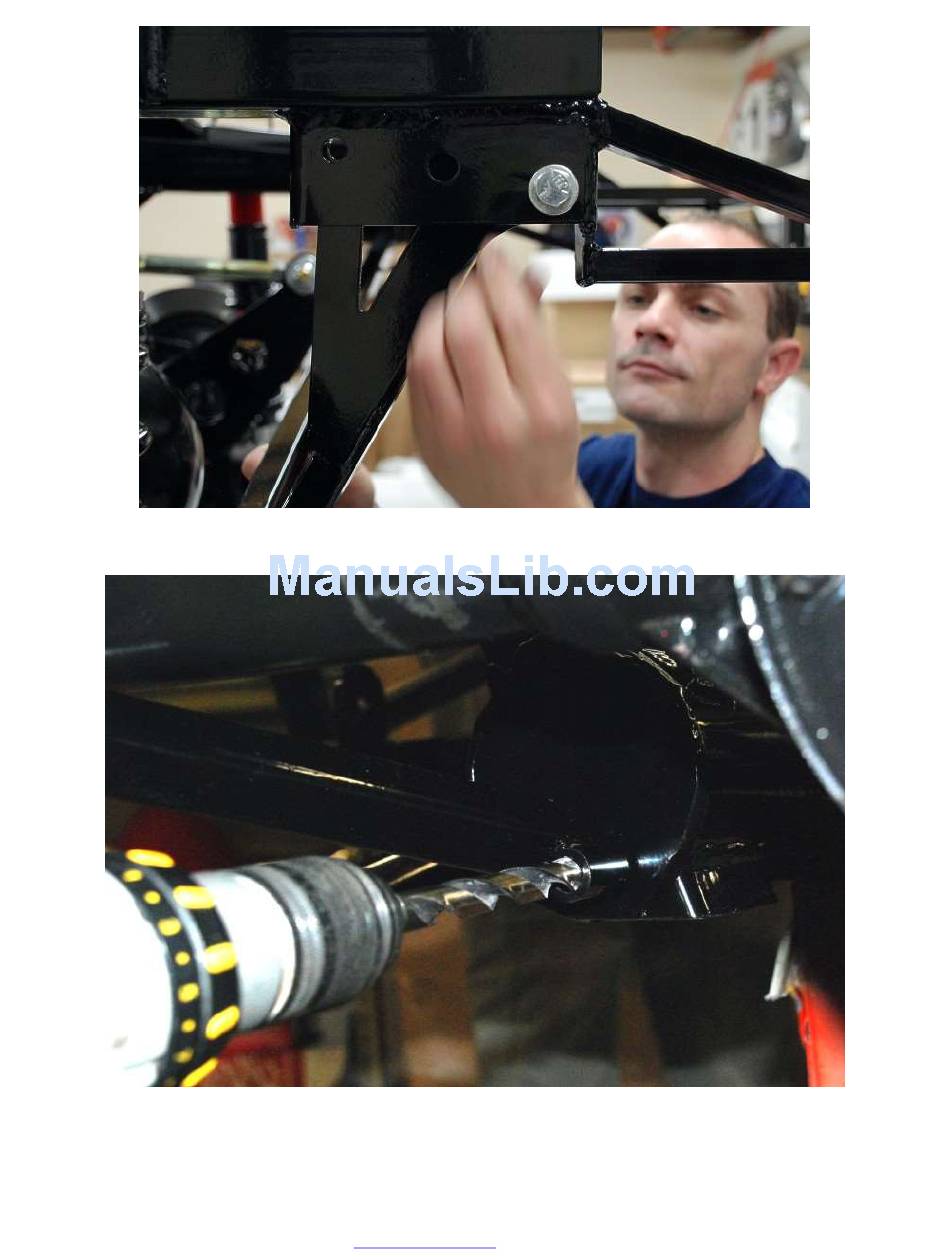

With the axle jacked up, attach the Panhard Bar frame mount to the inside of the quad shock brackets, the

forward leg will attach to the back of the angled 2"x 3" tube. Do not tighten the quad shock bracket bolts yet.

For the front mount, use a ½" drill bit and drill through the sleeve on the mount. Make sure before drilling that

the hole is away from the side of the 2"x 3" tube so that a nut can be attached on the back of the bolt from the

bottom of the tube.

Install the ½"-13 x 2.5" bolt and tighten.
