Factory Five Racing MK4 ROADSTER Assembly Manual page 273

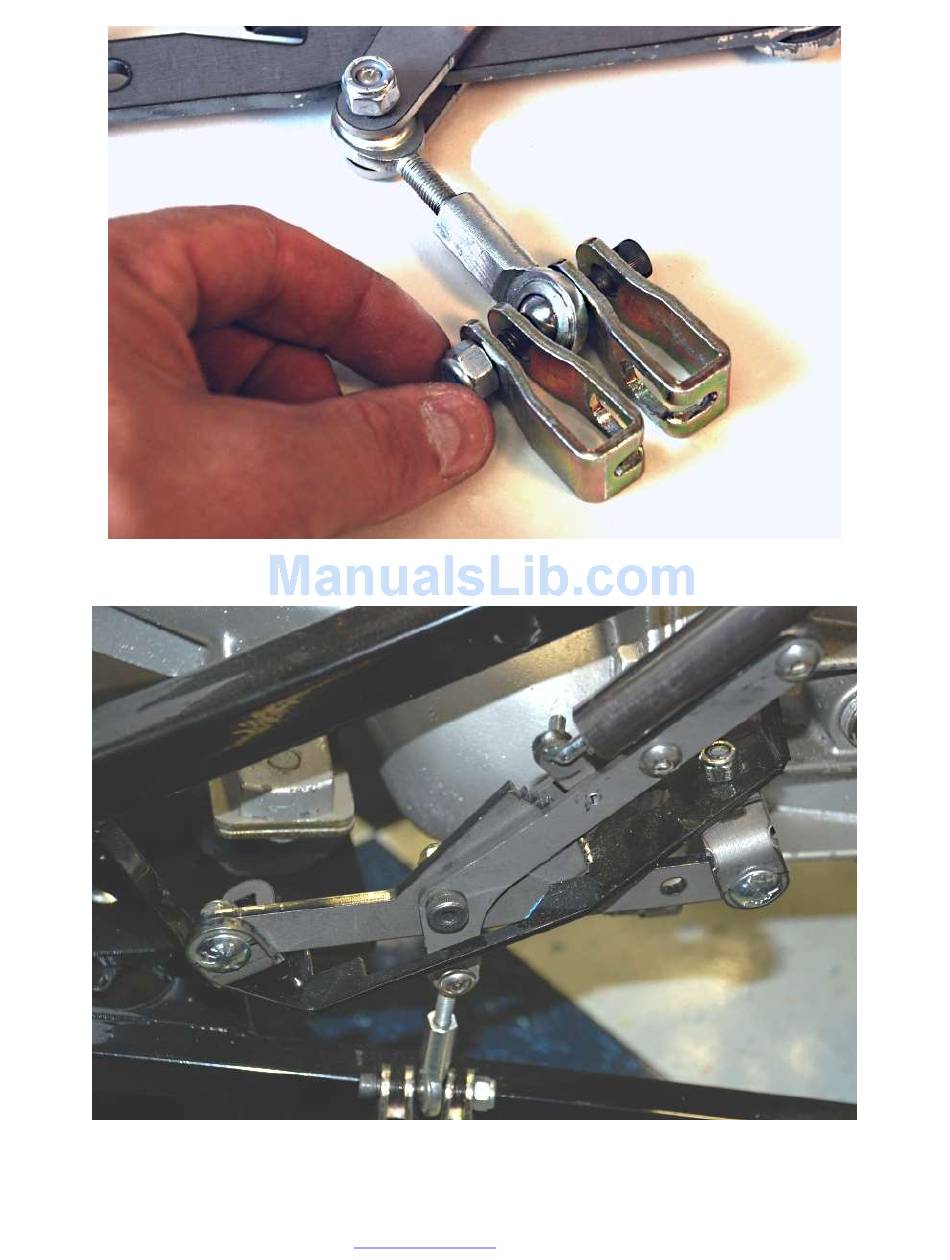

Facing the cable slots towards each other, attach one of the cable clevises to each side of the female rod end
using the ¼"x 1.50" socket head bolt and locknut. Just start the nut for now, do not tighten it.
" carriage bolts. Leave the locknuts loose enough so that the mount
5
Attach the handle to the frame using the /
16
bracket can still slide on the frame mount. The front mount bracket goes under the frame bracket while the rear
goes on top. The fixed gear straddles the frame mount.
272
www.factoryfive.com 508-291-3443
