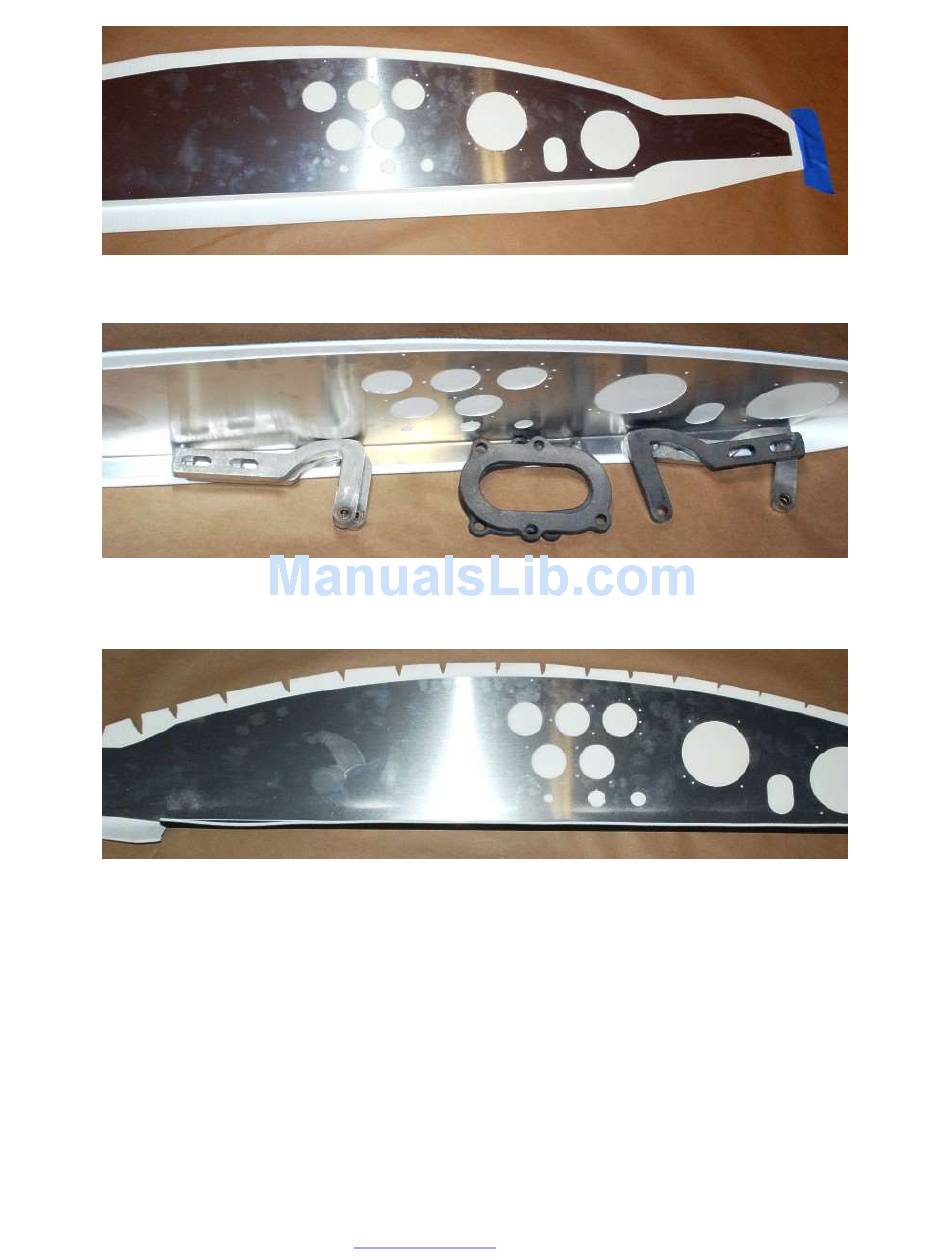

Stick the dash to the pad leaving about an inch border all around the top, the bottom will be bigger for the

flange. Taping the ends of the pad helps to keep it flat.

After giving the front adhesive time to set spray the bottom flange and pad and adhesive them together. This is

a fairly tight corner so hold the dash in position with pressure on the mating surface with some full paint cans or

something else heavy.

Cut the dash pad in angle shaped cuts every 2" (even closer in the corners) up to about ¼" from the dash.
