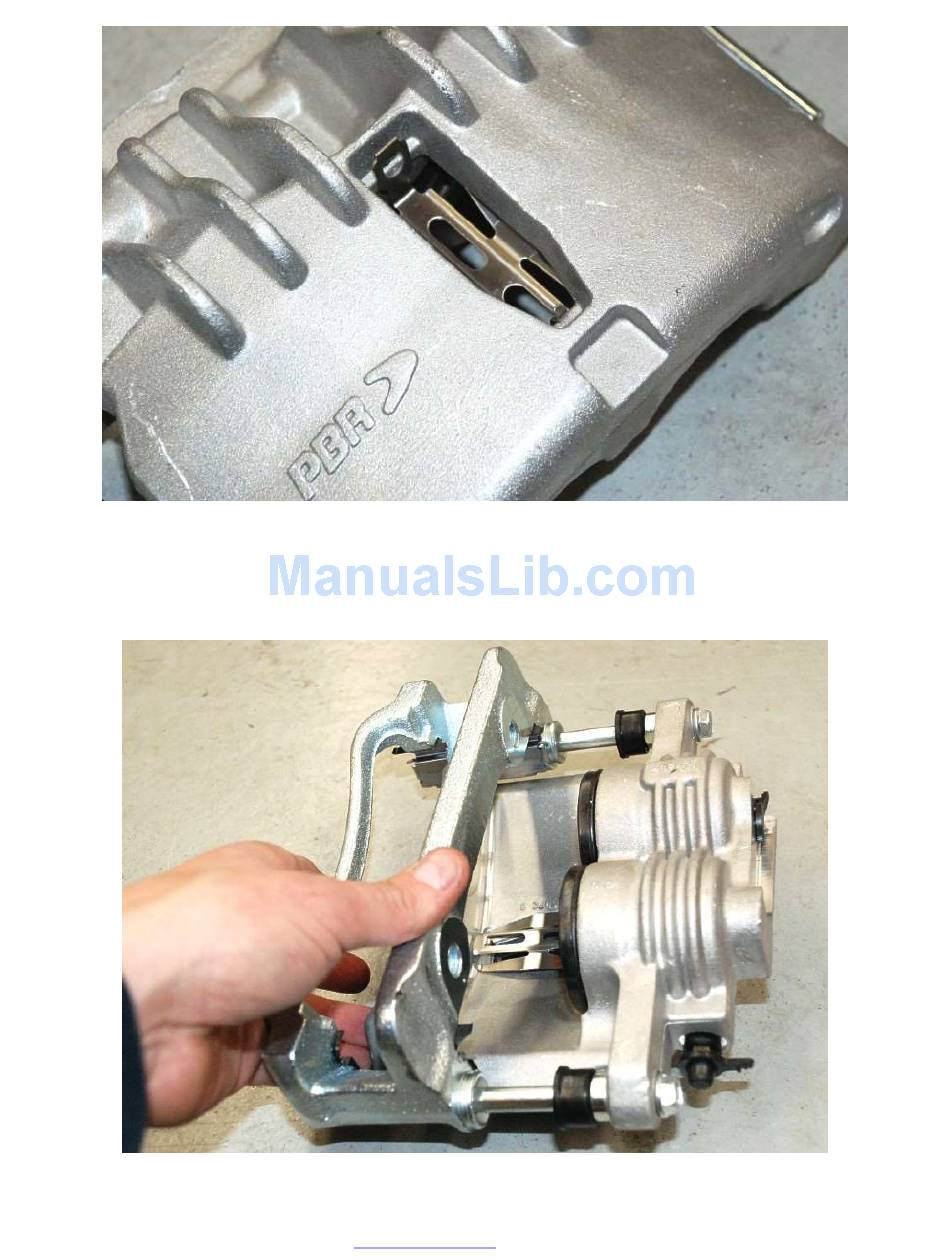

The two clips that are left go in the center of the caliper with the tab sticking up through the center hole. Insert

the clip from the inside of the caliper through the large center hole with the larger tab on the side facing the

pistons then press down on the outer part of the clip so the small clip goes through the large hole and clips on.

Grease the slide pins using the supplied grease.

Slide the caliper hanger onto the caliper.
