Table 2-26 Sip Related Configuration Parameter - Tadiran Telecom TGW4 SERIES User Configuration Manual

User Configuration Manual
SIP Related Configuration Parameter

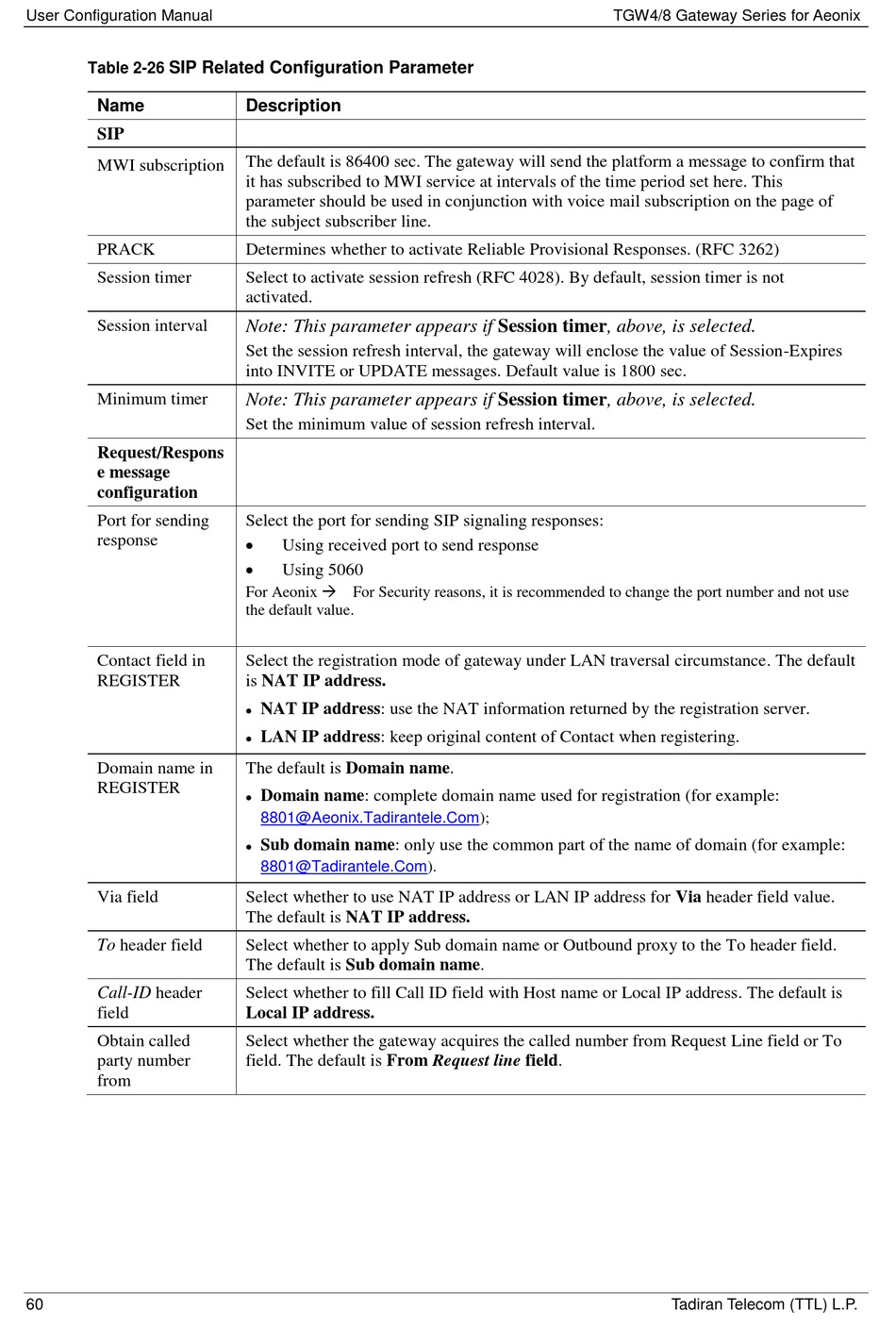

Table 2-26
Name
SIP
MWI subscription
PRACK
Session timer
Session interval
Minimum timer
Request/Respons
e message
configuration
Port for sending
response
Contact field in
REGISTER
Domain name in
REGISTER
Via field
To header field
Call-ID header
field
Obtain called
party number
from
60
Description
The default is 86400 sec. The gateway will send the platform a message to confirm that
it has subscribed to MWI service at intervals of the time period set here. This
parameter should be used in conjunction with voice mail subscription on the page of
the subject subscriber line.
Determines whether to activate Reliable Provisional Responses. (RFC 3262)
Select to activate session refresh (RFC 4028). By default, session timer is not
activated.
Note: This parameter appears if Session timer, above, is selected.
Set the session refresh interval, the gateway will enclose the value of Session-Expires
into INVITE or UPDATE messages. Default value is 1800 sec.
Note: This parameter appears if Session timer, above, is selected.
Set the minimum value of session refresh interval.
Select the port for sending SIP signaling responses:

Using received port to send response

Using 5060
For Aeonix  For Security reasons, it is recommended to change the port number and not use
the default value.
Select the registration mode of gateway under LAN traversal circumstance. The default
is NAT IP address.
NAT IP address: use the NAT information returned by the registration server.

LAN IP address: keep original content of Contact when registering.

The default is Domain name.
Domain name: complete domain name used for registration (for example:

8801@Aeonix.Tadirantele.Com);
Sub domain name: only use the common part of the name of domain (for example:

8801@Tadirantele.Com).
Select whether to use NAT IP address or LAN IP address for Via header field value.
The default is NAT IP address.
Select whether to apply Sub domain name or Outbound proxy to the To header field.
The default is Sub domain name.
Select whether to fill Call ID field with Host name or Local IP address. The default is
Local IP address.
Select whether the gateway acquires the called number from Request Line field or To
field. The default is From Request line field.
TGW4/8 Gateway Series for Aeonix
Tadiran Telecom (TTL) L.P.
