TGW4/8 Gateway Series for Aeonix

6.3.4 How to Manually Perform Switchover

The Switchover button provides a means to manually switchover the call traffic from the current SIP
server to the next available SIP server.
Step1 Click the Basic > SIP tab.
Step2 Click Switchover button, the gateway performs switchover to the next available server in
sequence based on the SIP server list.
Step3 The Active SIP server field displays the current active SIP server IP address.

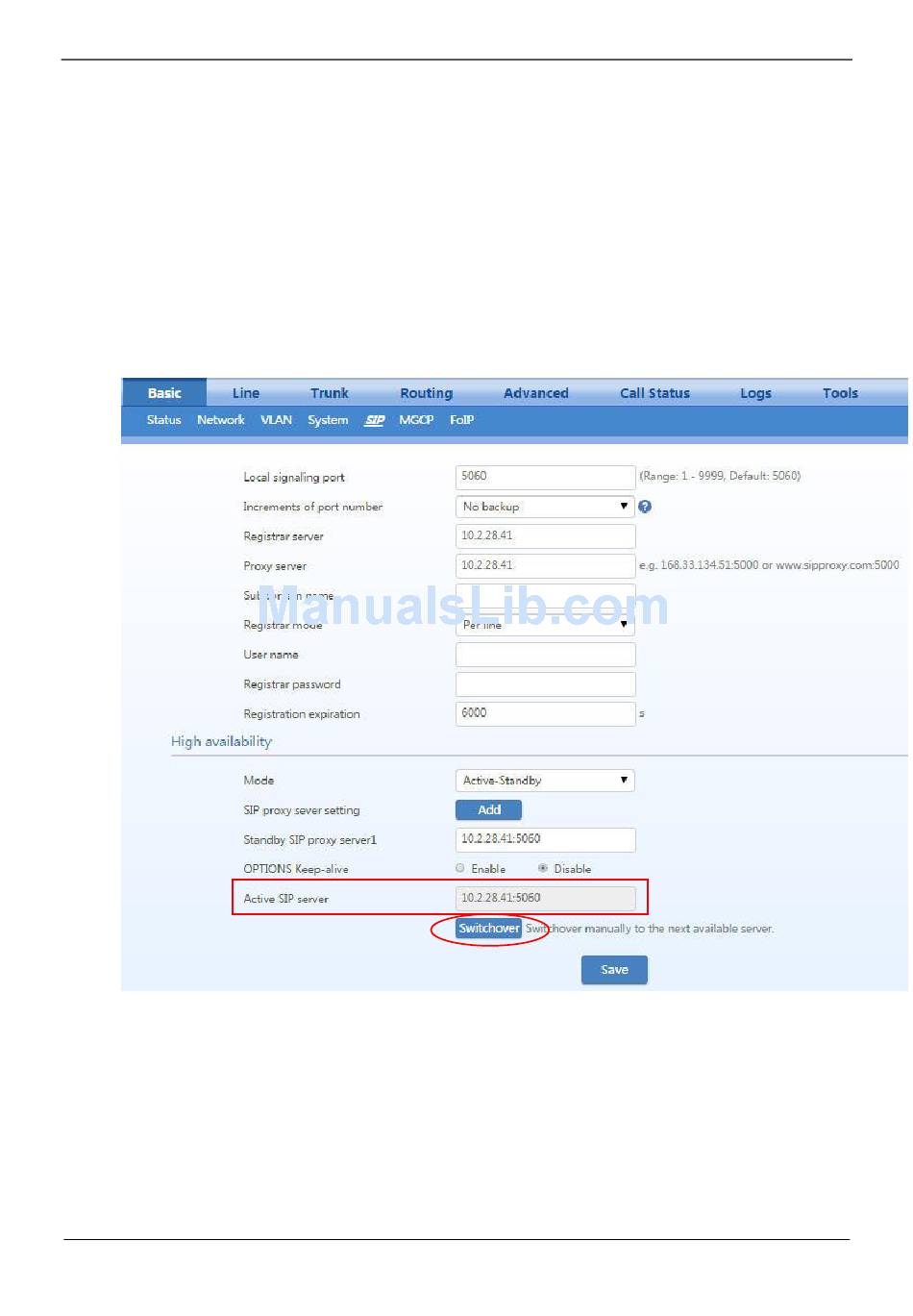

Page to Switchover Manually
Figure 6-28
