TGW4/8 Gateway Series for Aeonix

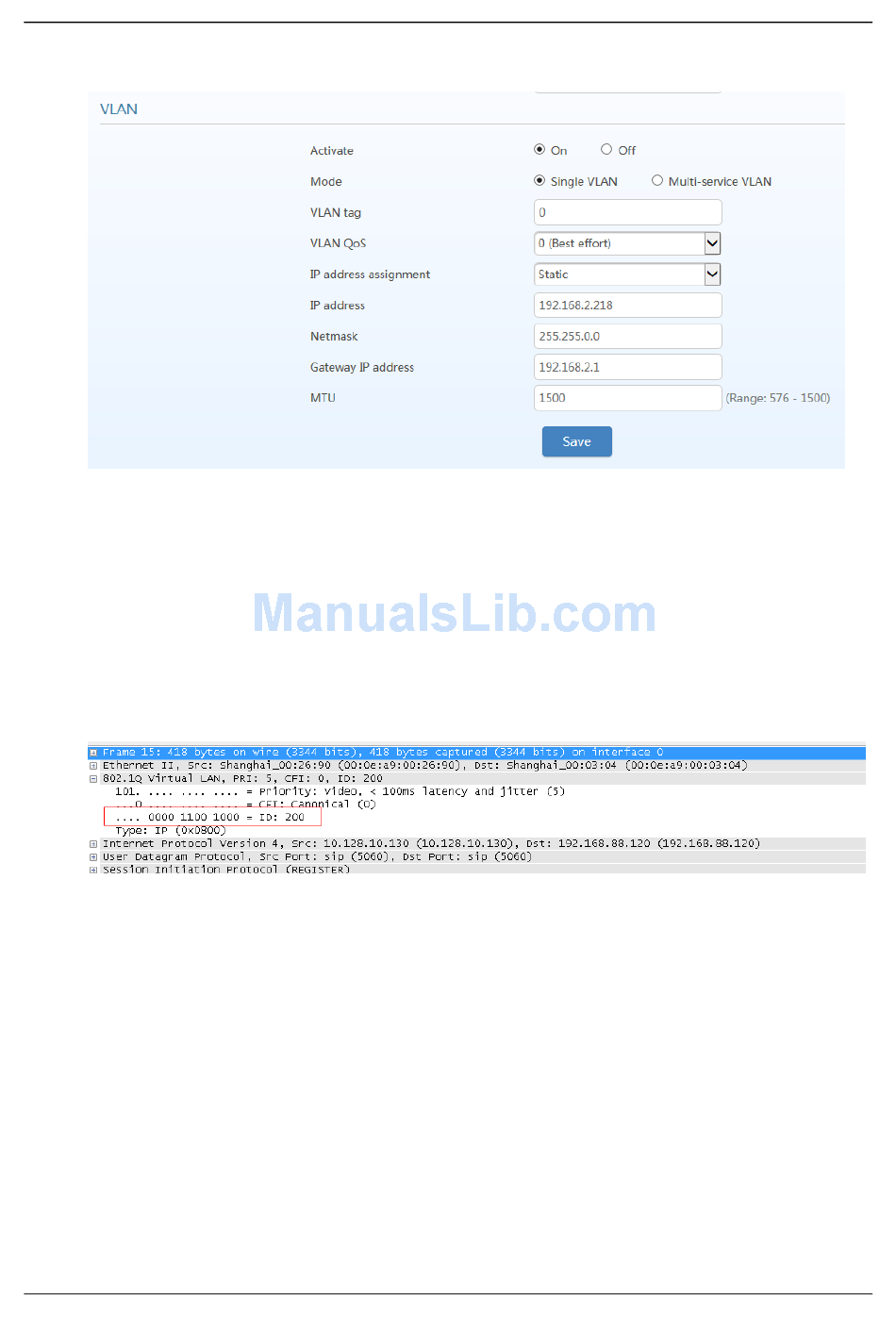

Configuring the single VLAN
Figure 5-3
Example of Single VLAN
Configure the TGW to work in single VLAN mode with a corresponding VLAN tag of 200, and restart
the TGW. Check that all data packets sent by the TGW carry a VLAN ID 200, as shown in Figure 5-4.
For details about a captured packet, see SingleVlan.pcapng in 5.3 Packet Capture Files.
A Data Packet Carrying a Corresponding VLAN Tag in the Single VLAN Mode
Figure 5-4
Tadiran Telecom (TTL) L.P.
High Availability Configuration Guide
105
