TGW4/8 Gateway Series for Aeonix
On the web interface, click the Basic > VLAN tab, and ensure that the VLAN function is set to On,
and Mode is set to Multi-service VLAN. Select Mode 2 for Voice VLAN, and specify VLAN tags
for SIP and RTP/T.38.

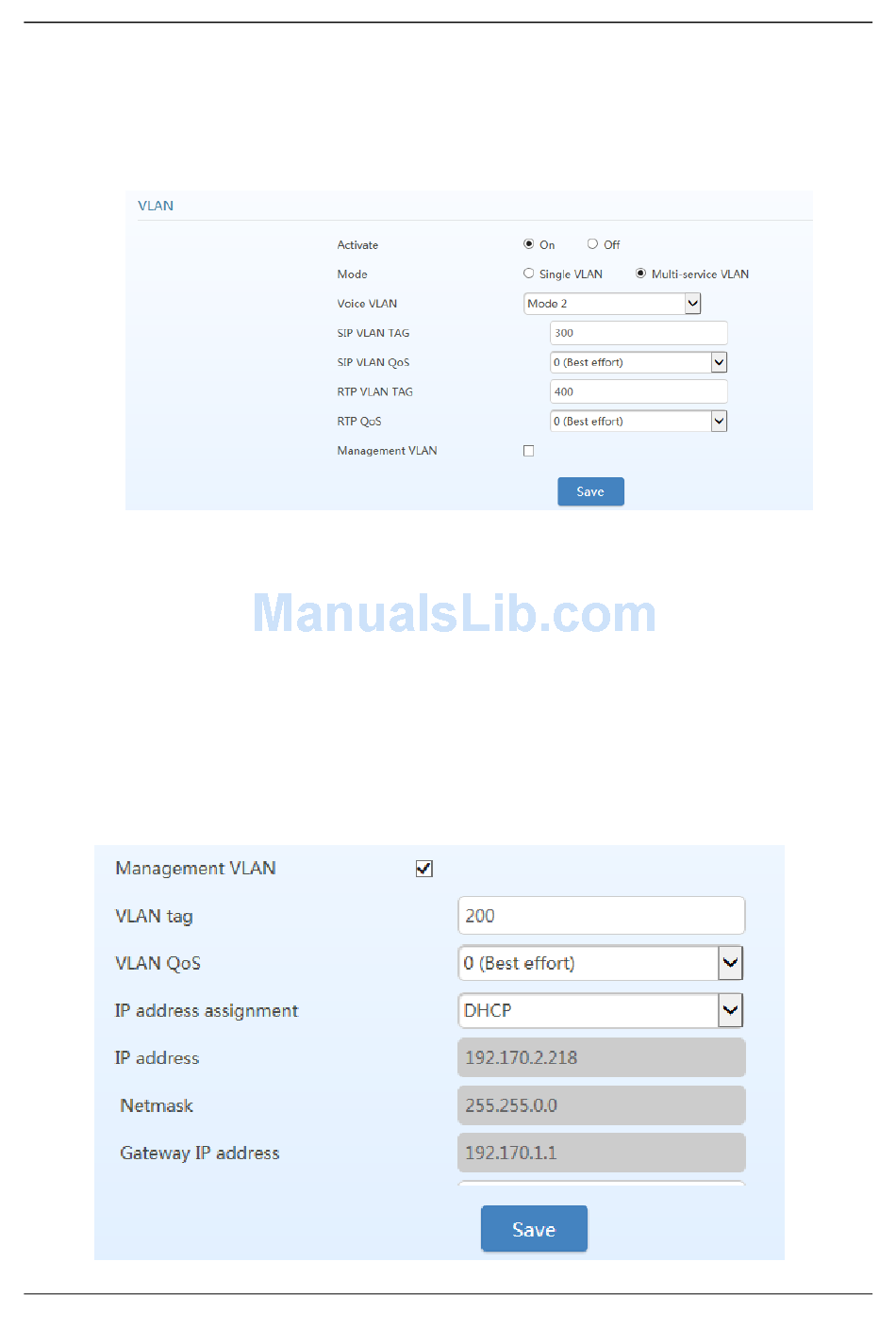

Configuring Voice VLAN to Work in Mode 2
Figure 5-6
Configuring Management VLAN
The TGW includes VLAN tags configured in the management VLAN: HTTP, Telnet, TR069, and
SNMP, in data packets of the four service types.
On the web interface, click the Basic > VLAN tab, and ensure that the VLAN function is set to On
and Mode is set to Multi-service VLAN. Select Management VLAN, set the VLAN tag of the
management service, and specify network information such as IP address.
Configuring Management VLAN
Figure 5-7
