High Availability Configuration Guide

6.3.2 Set Standby SIP Servers

Step0 If a domain name was entered in the Registrar server field, Step3 above,
skip to Configuring the Domain Name of the Primary Server, on next page.
Configuring the IP Address of Standby SIP Servers
A maximum of five servers can be added
To configure the IP addresses of the standby SIP servers:
Step1 Click Add.
Step2 In the Standby SIP proxy server n field enter the IP address of the standby SIP server.
Repeat Step1 and Step2 for the next standby server, up to five standby servers.
Step3
Step4 Click Save.
Step5 Skip to Set the Failover Condition, on page 122.

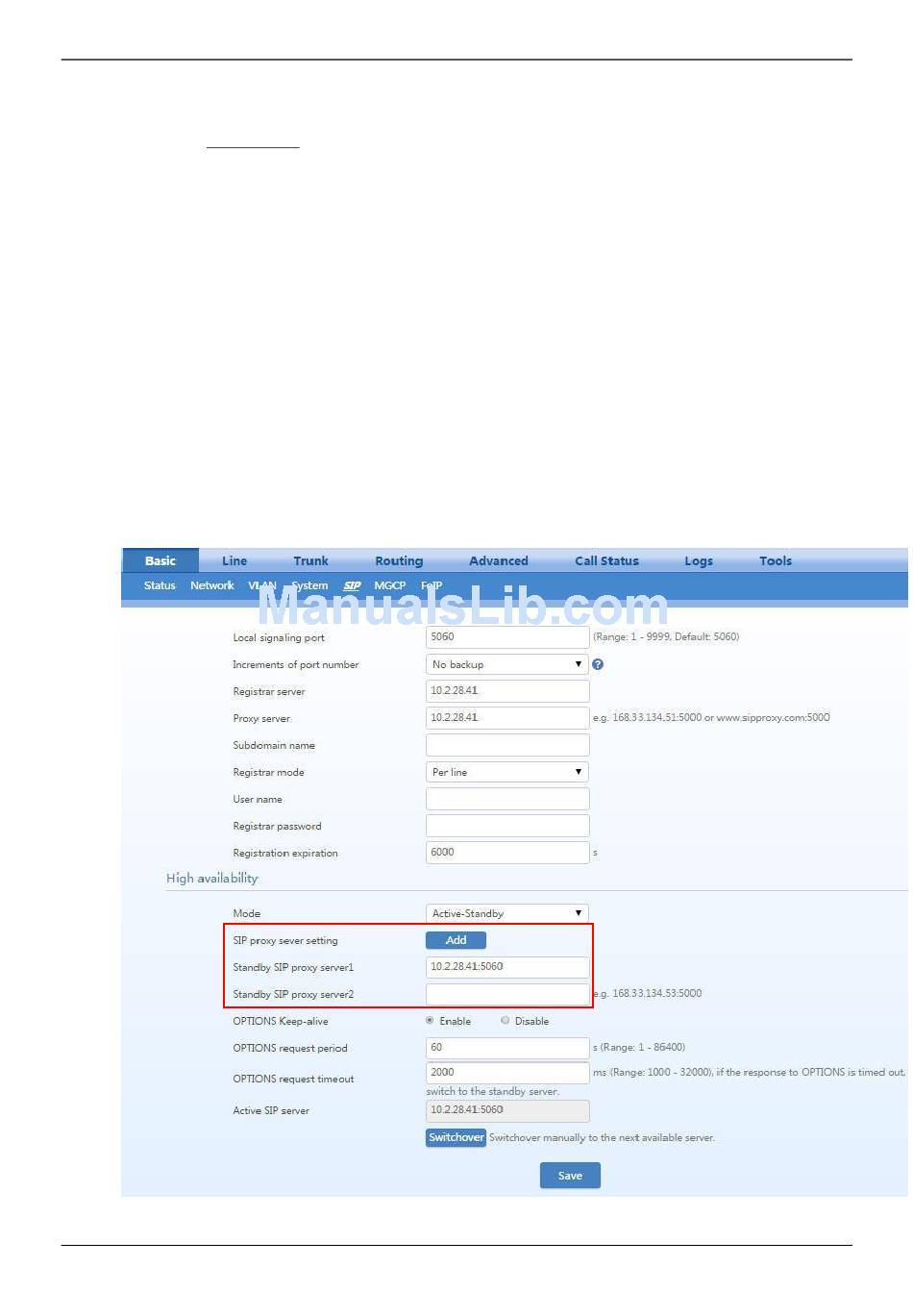

Page to set standby servers
Figure 6-23
For detailed information, see 2.3.6 High Availability Configuration on page 21.
