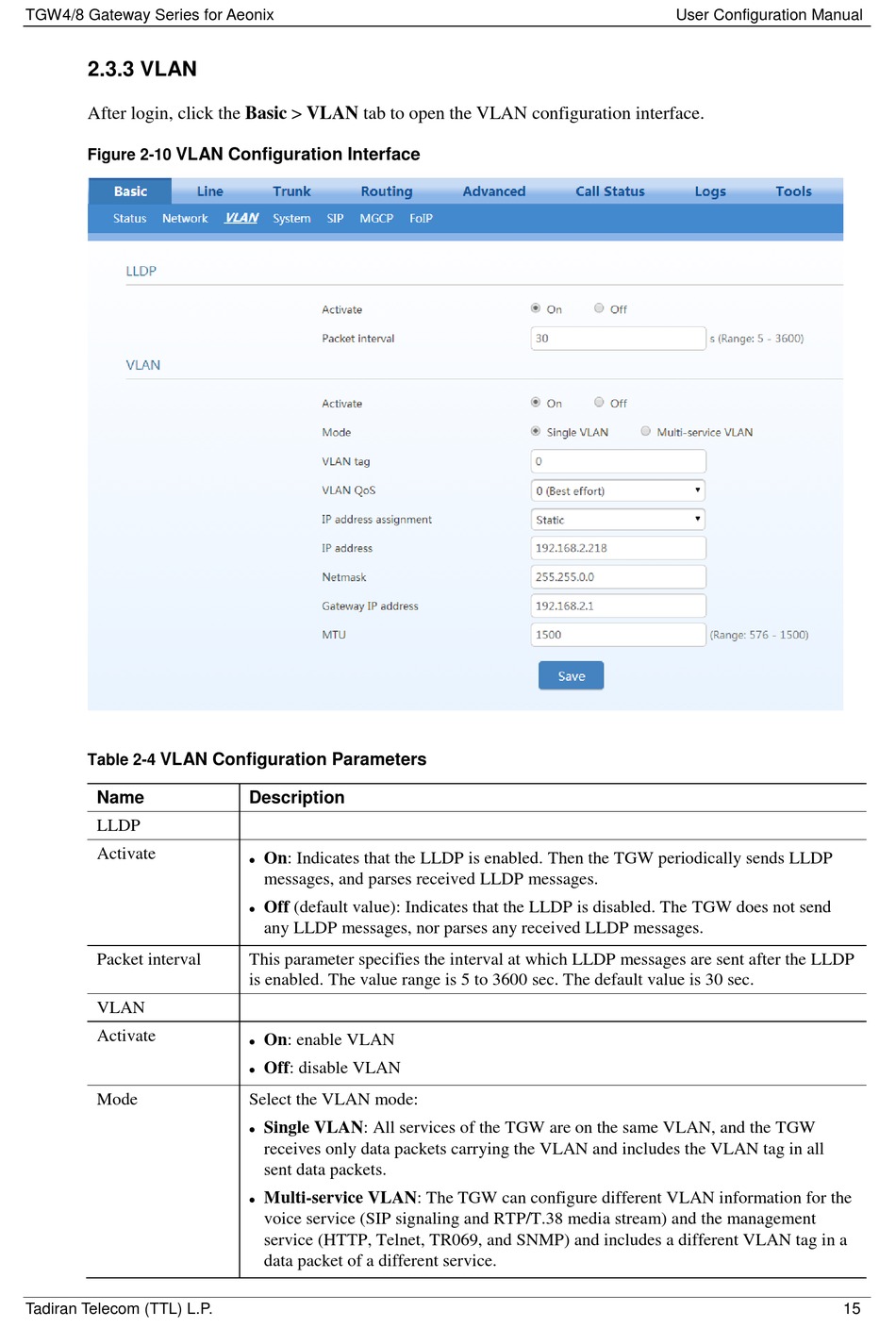

2.3.3 VLAN

After login, click the Basic > VLAN tab to open the VLAN configuration interface.
VLAN Configuration Interface
Figure 2-10
VLAN Configuration Parameters
Table 2-4
Name
LLDP
Activate
Packet interval
VLAN
Activate
Mode
Tadiran Telecom (TTL) L.P.
Description
On: Indicates that the LLDP is enabled. Then the TGW periodically sends LLDP

messages, and parses received LLDP messages.
Off (default value): Indicates that the LLDP is disabled. The TGW does not send

any LLDP messages, nor parses any received LLDP messages.
This parameter specifies the interval at which LLDP messages are sent after the LLDP
is enabled. The value range is 5 to 3600 sec. The default value is 30 sec.
On: enable VLAN

Off: disable VLAN

Select the VLAN mode:
Single VLAN: All services of the TGW are on the same VLAN, and the TGW

receives only data packets carrying the VLAN and includes the VLAN tag in all
sent data packets.
Multi-service VLAN: The TGW can configure different VLAN information for the

voice service (SIP signaling and RTP/T.38 media stream) and the management
service (HTTP, Telnet, TR069, and SNMP) and includes a different VLAN tag in a
data packet of a different service.
