User Configuration Manual
3.3 FXO Trunk Line – Basic Configuration (TGW8-2G)
1. Open the Aeonix Web Admin.
2. Add a new trunk
a. In the navigation pane, select Administration > Trunks > Add Trunk, and then select
the trunk type as SIP Trunk / Gateway.
b. Define the Trunk ID fields.
In the first field (before the @ sign), enter the trunk name as the line number.
In the second field (after the @ sign), enter the name of the domain to which the trunk is
connected.
c. Click the Configuration tab.

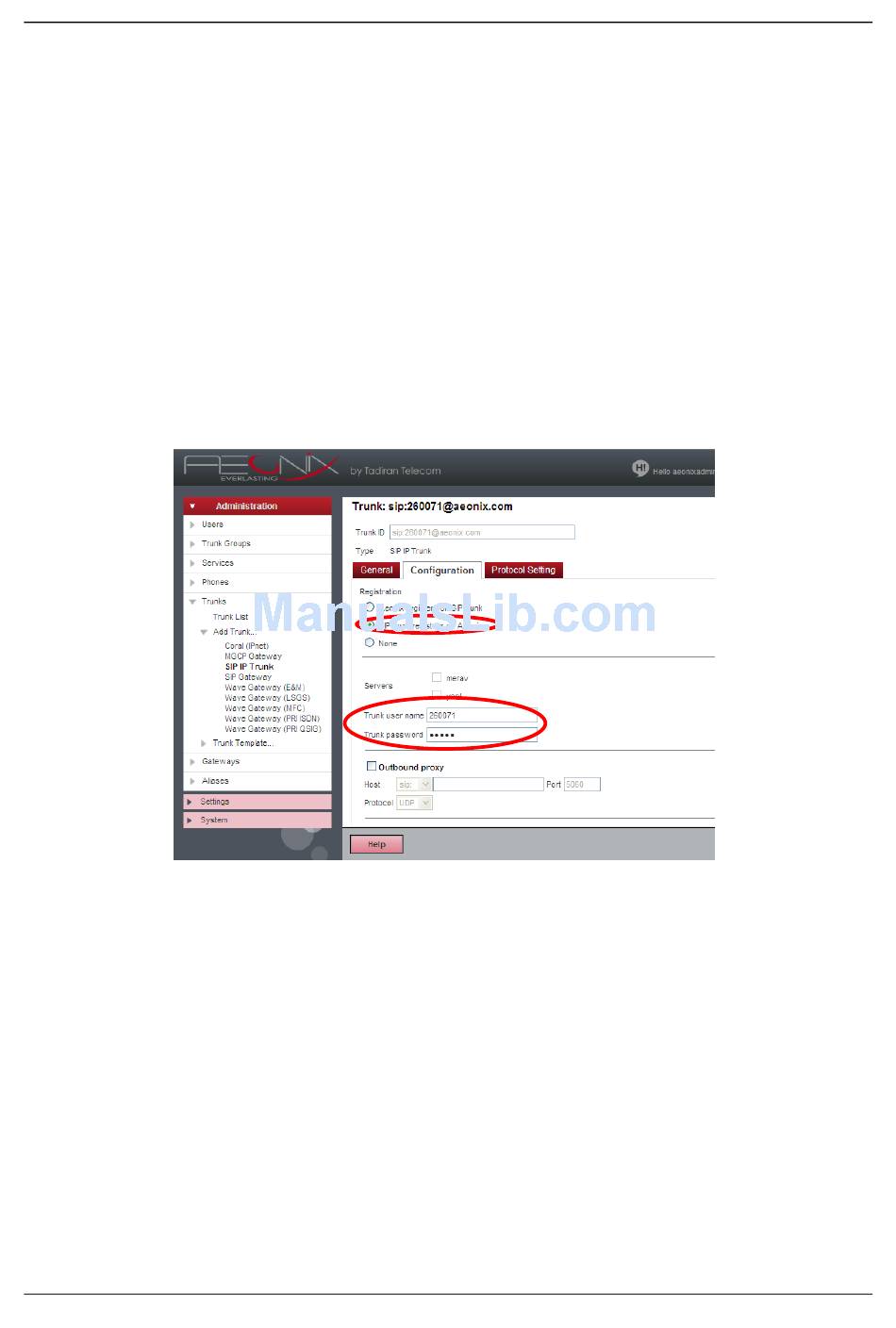

Aeonix Trunk Page
Figure 3-2
(d) In the Registration section, select the SIP trunk registers on Aeonix check box.
(e) In Trunk user name box, enter same name as was entered in
Section 2 .3.5 SIP Configuration - User name . See T able 2-8 on page 20.
(f) In Trunk password box, enter same password as was entered in
Section 2 .3.5 SIP Configuration - Registrar password . See T able 2-8 on page 20.
3. Repeat step 2 for all FXO trunks in the TGW gateway.
4. Define a Trunk Group and add to it all FXO trunks in the system.
(a) In the navigation pane, select Administration > Trunk Group.
(b) To define a new trunk group, click Add Trunk Group
(c) To add FXO trunks to the group, click the Members tab.
(d) Verify that the FXO trunks were added correctly; Verify that the FXO trunks are
working, as indicated by a green circle on the trunk group. Also verify in the gateway
that the FXO lines are registered, see Call Status on page 71.
Tadiran Telecom (TTL) L.P.
TGW4/8 Gateway Series for Aeonix
90
