High Availability Configuration Guide

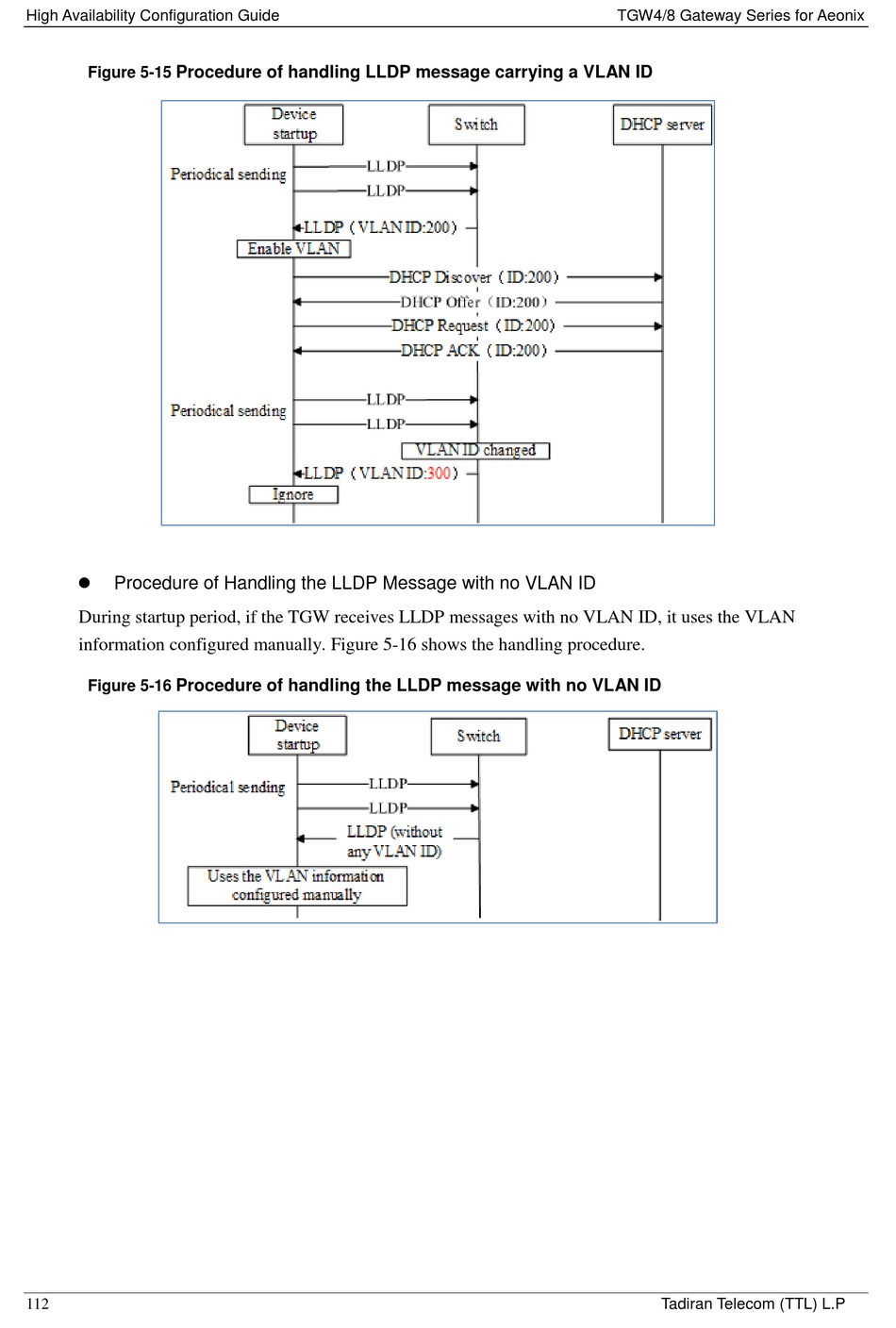

Procedure of handling LLDP message carrying a VLAN ID
Figure 5-15

Procedure of Handling the LLDP Message with no VLAN ID
During startup period, if the TGW receives LLDP messages with no VLAN ID, it uses the VLAN
information configured manually. Figure 5-16 shows the handling procedure.
Procedure of handling the LLDP message with no VLAN ID
Figure 5-16
112
TGW4/8 Gateway Series for Aeonix
Tadiran Telecom (TTL) L.P
