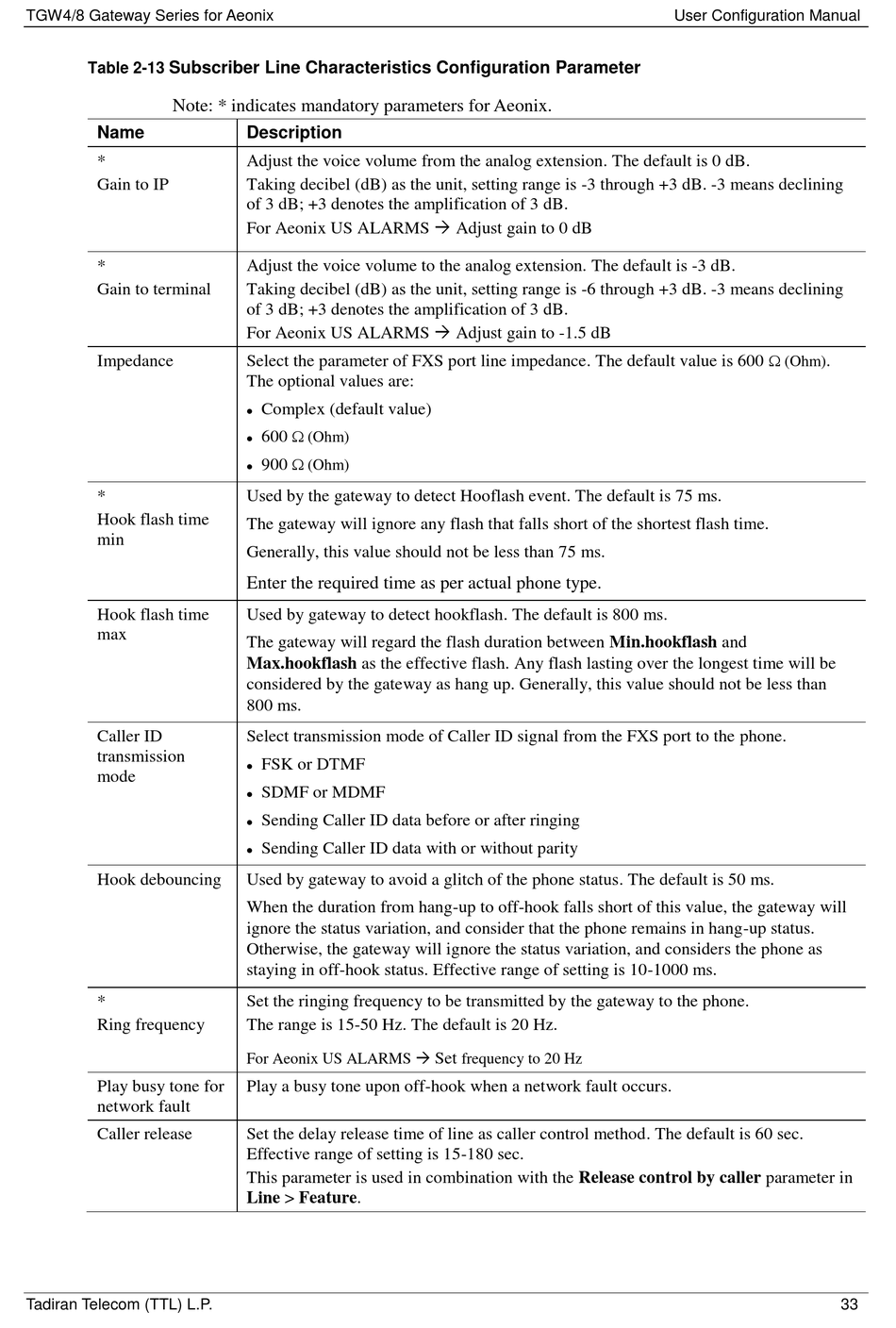

Subscriber Line Characteristics Configuration Parameter
Table 2-13
Note: * indicates mandatory parameters for Aeonix.
Name
*
Gain to IP
*
Gain to terminal
Impedance
*
Hook flash time
min
Hook flash time
max
Caller ID
transmission
mode
Hook debouncing
*
Ring frequency
Play busy tone for
network fault
Caller release
Tadiran Telecom (TTL) L.P.
Description
Adjust the voice volume from the analog extension. The default is 0 dB.
Taking decibel (dB) as the unit, setting range is -3 through +3 dB. -3 means declining
of 3 dB; +3 denotes the amplification of 3 dB.
For Aeonix US ALARMS  Adjust gain to 0 dB
Adjust the voice volume to the analog extension. The default is -3 dB.
Taking decibel (dB) as the unit, setting range is -6 through +3 dB. -3 means declining
of 3 dB; +3 denotes the amplification of 3 dB.
For Aeonix US ALARMS  Adjust gain to -1.5 dB
Select the parameter of FXS port line impedance. The default value is 600
The optional values are:
Complex (default value)

 (Ohm)
600

 (Ohm)
900

Used by the gateway to detect Hooflash event. The default is 75 ms.
The gateway will ignore any flash that falls short of the shortest flash time.
Generally, this value should not be less than 75 ms.
Enter the required time as per actual phone type.
Used by gateway to detect hookflash. The default is 800 ms.
The gateway will regard the flash duration between Min.hookflash and
Max.hookflash as the effective flash. Any flash lasting over the longest time will be
considered by the gateway as hang up. Generally, this value should not be less than
800 ms.
Select transmission mode of Caller ID signal from the FXS port to the phone.
FSK or DTMF

SDMF or MDMF

Sending Caller ID data before or after ringing

Sending Caller ID data with or without parity

Used by gateway to avoid a glitch of the phone status. The default is 50 ms.
When the duration from hang-up to off-hook falls short of this value, the gateway will
ignore the status variation, and consider that the phone remains in hang-up status.
Otherwise, the gateway will ignore the status variation, and considers the phone as
staying in off-hook status. Effective range of setting is 10-1000 ms.
Set the ringing frequency to be transmitted by the gateway to the phone.
The range is 15-50 Hz. The default is 20 Hz.
For Aeonix US ALARMS 
Play a busy tone upon off-hook when a network fault occurs.
Set the delay release time of line as caller control method. The default is 60 sec.
Effective range of setting is 15-180 sec.
This parameter is used in combination with the Release control by caller parameter in
Line > Feature.
Set
frequency to 20 Hz
