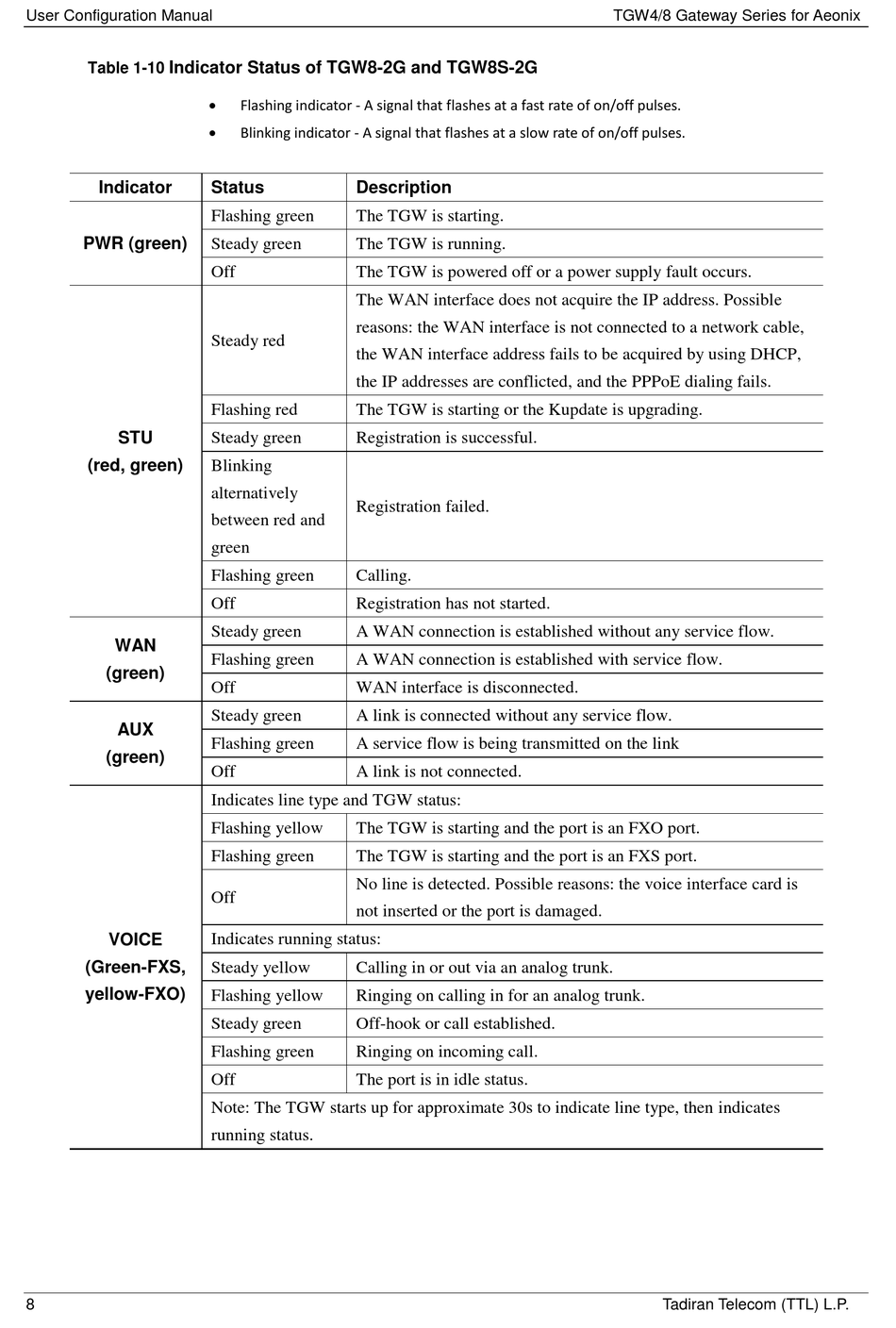

Indicator Status of TGW8-2G and TGW8S-2G
Table 1-10
Indicator
PWR (green)
STU
(red, green)
WAN
(green)
AUX
(green)
VOICE
(Green-FXS,
yellow-FXO)
8
Flashing indicator - A signal that flashes at a fast rate of on/off pulses.
Blinking indicator - A signal that flashes at a slow rate of on/off pulses.
Status
Description
Flashing green
The TGW is starting.
Steady green
The TGW is running.
Off
The TGW is powered off or a power supply fault occurs.
The WAN interface does not acquire the IP address. Possible
reasons: the WAN interface is not connected to a network cable,
Steady red
the WAN interface address fails to be acquired by using DHCP,
the IP addresses are conflicted, and the PPPoE dialing fails.
Flashing red
The TGW is starting or the Kupdate is upgrading.
Steady green
Registration is successful.
Blinking
alternatively
Registration failed.
between red and
green
Flashing green
Calling.
Off
Registration has not started.
Steady green
A WAN connection is established without any service flow.
Flashing green
A WAN connection is established with service flow.
Off
WAN interface is disconnected.
Steady green
A link is connected without any service flow.
Flashing green
A service flow is being transmitted on the link
Off
A link is not connected.
Indicates line type and TGW status:
Flashing yellow
The TGW is starting and the port is an FXO port.
Flashing green
The TGW is starting and the port is an FXS port.
No line is detected. Possible reasons: the voice interface card is
Off
not inserted or the port is damaged.
Indicates running status:
Steady yellow
Calling in or out via an analog trunk.
Flashing yellow
Ringing on calling in for an analog trunk.
Steady green
Off-hook or call established.
Flashing green
Ringing on incoming call.
Off
The port is in idle status.
Note: The TGW starts up for approximate 30s to indicate line type, then indicates
running status.
