2.5.2 Trunk Features (TGW8-2G)

Only a gateway with FXO ports can display this interface.
After login, click the Trunk > Trunk tab to open the Trunk configuration interface.

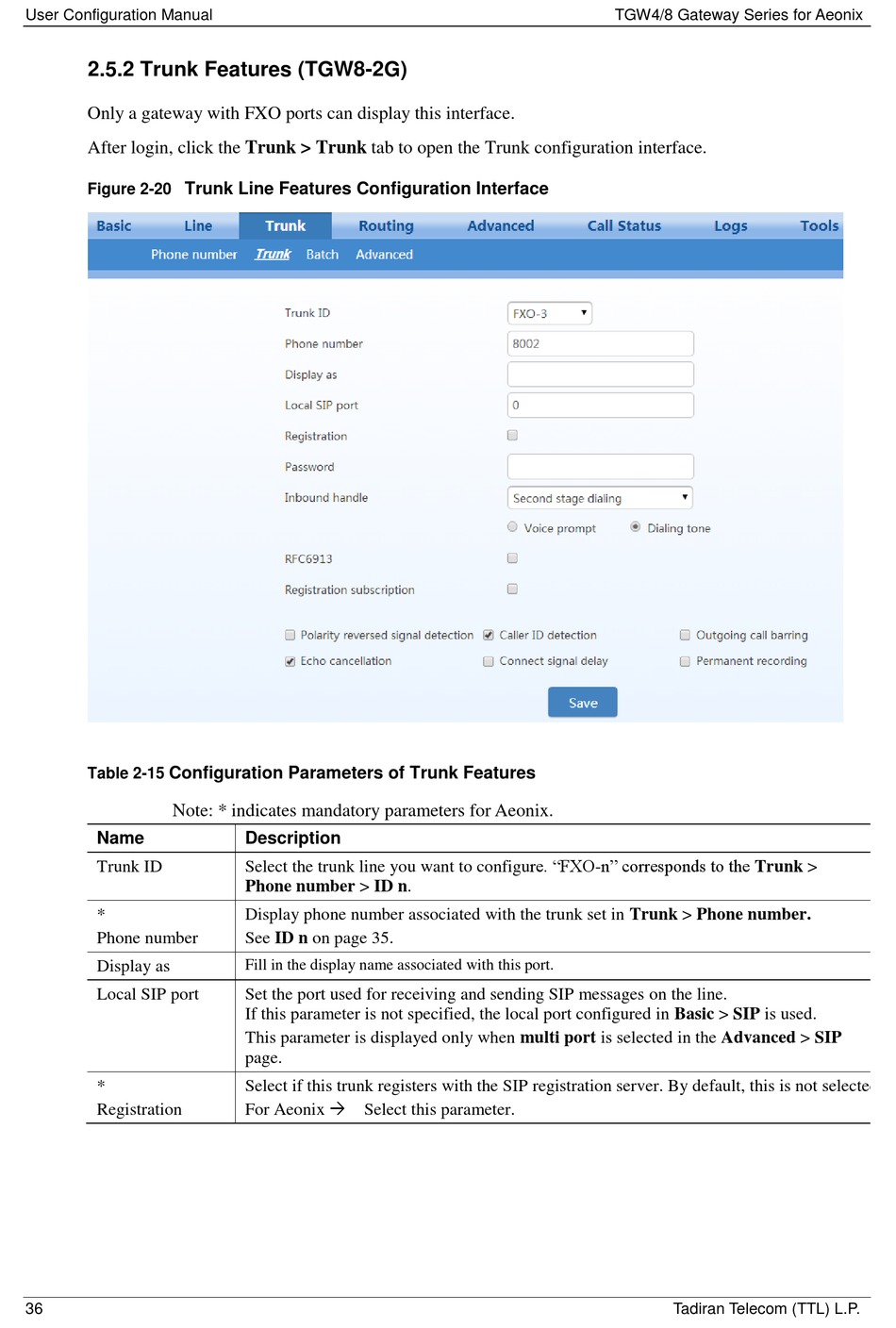

Trunk Line Features Configuration Interface
Figure 2-20
Configuration Parameters of Trunk Features
Table 2-15
Note: * indicates mandatory parameters for Aeonix.
Name
Trunk ID
*
Phone number
Display as
Local SIP port
*
Registration
36
Description
Select the trunk line you want to configure. "FXO-n" corresponds to the Trunk >
Phone number > ID n.
Display phone number associated with the trunk set in Trunk > Phone number.
See ID n on page 35.
Fill in the display name associated with this port.
Set the port used for receiving and sending SIP messages on the line.
If this parameter is not specified, the local port configured in Basic > SIP is used.
This parameter is displayed only when multi port is selected in the Advanced > SIP
page.
Select if this trunk registers with the SIP registration server. By default, this is not selected.
For Aeonix  Select this parameter.
