User Configuration Manual

2.6.2 Routing Table

After login, click the Routing > Routing Table tab to open the Routing table configuration interface.
* For Aeonix US ALARMS 

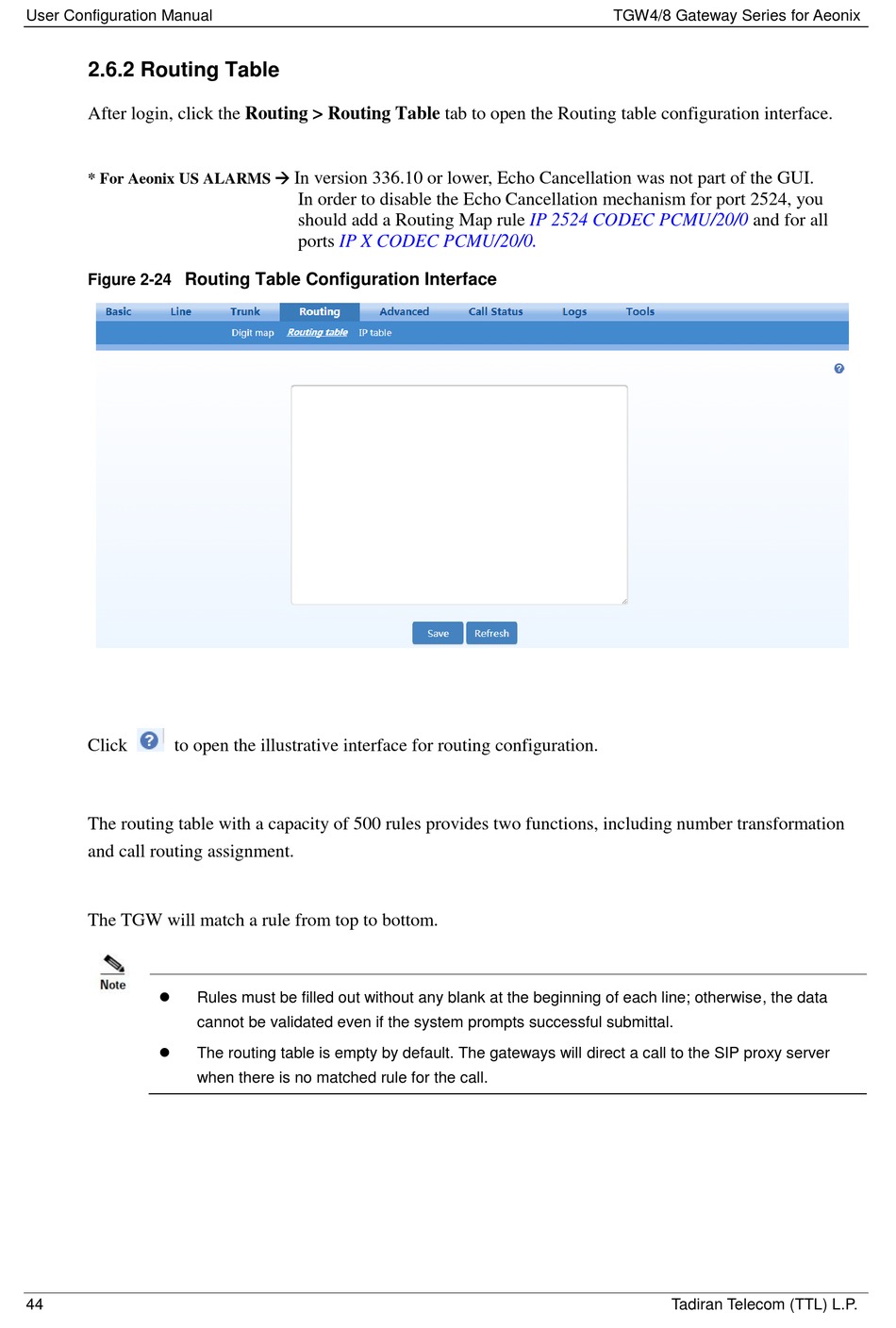

Routing Table Configuration Interface
Figure 2-24
Click to open the illustrative interface for routing configuration.
The routing table with a capacity of 500 rules provides two functions, including number transformation
and call routing assignment.
The TGW will match a rule from top to bottom.


44
In version 336.10 or lower, Echo Cancellation was not part of the GUI.
In order to disable the Echo Cancellation mechanism for port 2524, you
should add a Routing Map rule
ports IP X CODEC PCMU/20/0.
Rules must be filled out without any blank at the beginning of each line; otherwise, the data
cannot be validated even if the system prompts successful submittal.
The routing table is empty by default. The gateways will direct a call to the SIP proxy server
when there is no matched rule for the call.
TGW4/8 Gateway Series for Aeonix
IP 2524 CODEC PCMU/20/0
Tadiran Telecom (TTL) L.P.
and for all
