Transfer Charger Output; Duplex Motor Forward Rotation Check; Duplex Motor Reverse Rotation Check - Sharp AR-M207 Service Manual

Main Sub
code code
08 06

Transfer charger output

When this simulation is executed, the machine shifts to the following mode select window, and the list of the
modes to be outputted is displayed.
Select an output mode with 10-key and press [OK] key or [START] key, and the transfer charger output is
made for about 30sec in the specified mode.
(Mode selection window)
Sim8-6 TC OUTPUT
1:NML_A
2:NML_B
3:SML_A
Window display
1:NML_A
2:NML_B
3:SML_A
4:SML_B
* The back is not displayed when DUPEX setting is OFF.
* Small size paper is Letter R (A4R) width or below. When an output is completed, the machine shifts to the
mode select window.
[CA] key: Exits the simulation mode.
[Interruption] key: Interrupts the output operation, and shifts to the sub code input window.
09 01

Duplex motor forward rotation check

Used to check the duplex motor rotation.
The duplex motor is rotated in the normal direction (paper exit direction) for 30sec.
After completion of the process, the machine shifts to the sub code input window.
(Execution start window)
Sim9-1 DMF CHECK
PRESS OK KEY EXEC
[CA] key: Exits the simulation mode.
[Interruption] key: Interrupts the output operation, and shifts to the sub code input window.
02

Duplex motor reverse rotation check

Used to check the duplex motor reverse rotation.
The duplex motor is rotated in the reverse direction for 30sec.
After completion of the process, the machine shifts to the sub code input window.
(Execution start window)
Sim9-2 DMR CHECK
PRESS OK KEY EXEC
[CA] key: Exits the simulation mode.
[Interruption] key: Interrupts the output operation, and shifts to the sub code input window.

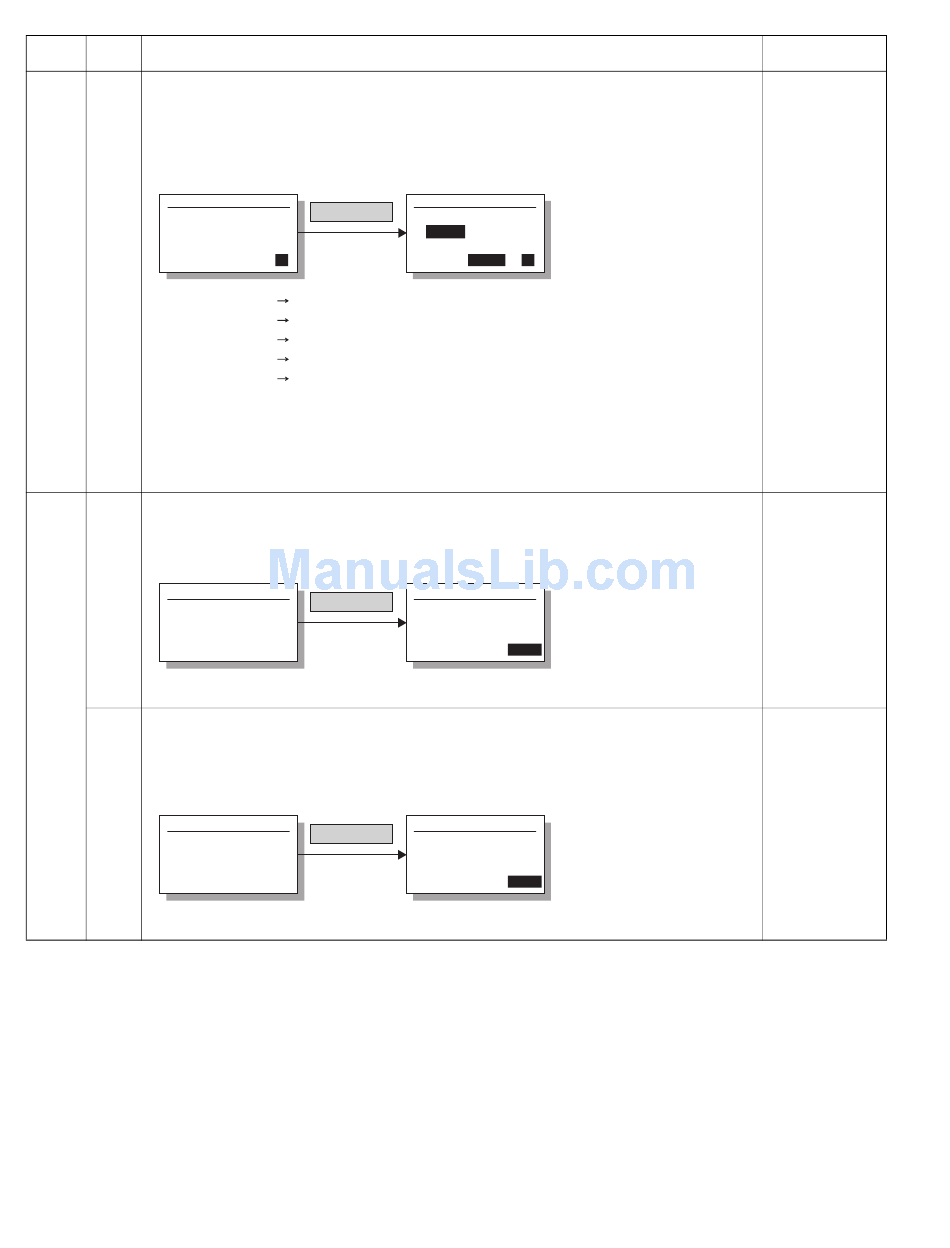

(Execution window)
OK/START Key
4:SML_B
5:BYPASS
EXEC 2
Output mode
Normal size width (front)
Normal size width (back)
Small size width (front)
Small size width (back)
(Execution window)
OK/START Key
(Execution window)
OK/START Key
AR-M207 M165 M162 SIMULATIONS 7-11
Contents
Sim8-6 TC OUTPUT
1:NML_A 4:SML_B
2:NML_B 5:BYPASS
3:SML_A
EXEC 2
Sim9-1 DMF CHECK
EXEC
Sim9-2 DMR CHECK
EXEC
Remark
