[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

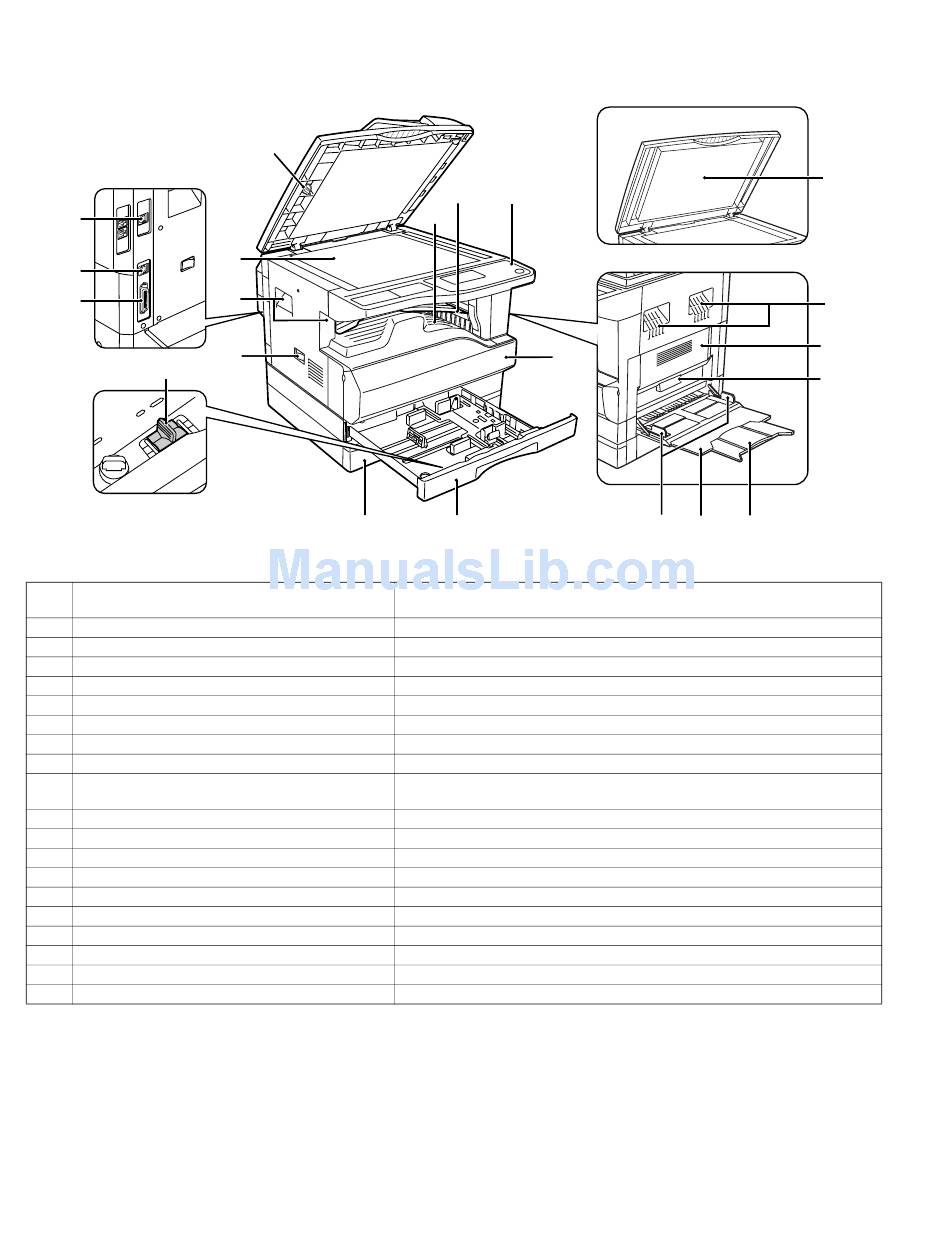

1. Appearance

1
2
3
4
1 USB 2.0 port (USB-2)
(when the dual function board is installed)
2 USB 1.1 port (USB-1)
3 Parallel port
4 Charger cleaner
5 Glass cleaner
6 Document glass
7 Handles
8 Power switch
9 Center tray
10 Upper tray (when the job separator tray kit is installed) Received faxes (when the fax option is installed) and print jobs are delivered to this
11 Operation panel
12 Front cover
13 Tray 1
14 Tray 2
15 Document cover (when installed)
16 Side cover
17 Side cover handle
18 Bypass tray guides
19 Bypass tray
20 Bypass tray extension
5
6
7
8
14
Connect to your computer to this port to use the printer and scanner functions.
Connect to your computer to this port to use the printer and scanner functions.
Connect to your computer to this port to use the printer function.
Use to clean the transfer charger.
Use to clean the original scanning glass.
Place an original that you wish to scan face down here.
Use to move the machine.
Press to turn the machine power on and off.
Copies and printed pages are output to this tray.
tray.
Contains operation keys and indicator lights.
Open to remove paper misfeeds or replace the toner cartridge.
Tray 1 can hold approximately 250 sheets of copy paper (64 g/m²).
Tray 2 can hold approximately 250 sheets of copy paper (64 g/m²).
Open to make a copy from the document glass.
Open to remove misfed paper.
Pull to open the side cover.
Adjust to the width of the paper when using the bypass tray.
Special paper (heavy paper or transparency film) can be fed from the bypass tray.
Pull out when feeding large paper such as 11" x 17" and 8-1/2" x 14" (A3 and B4).
AR-M207 M165 M162 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-1
10 11
9
12
13
15
7
16
17
18 19 20
