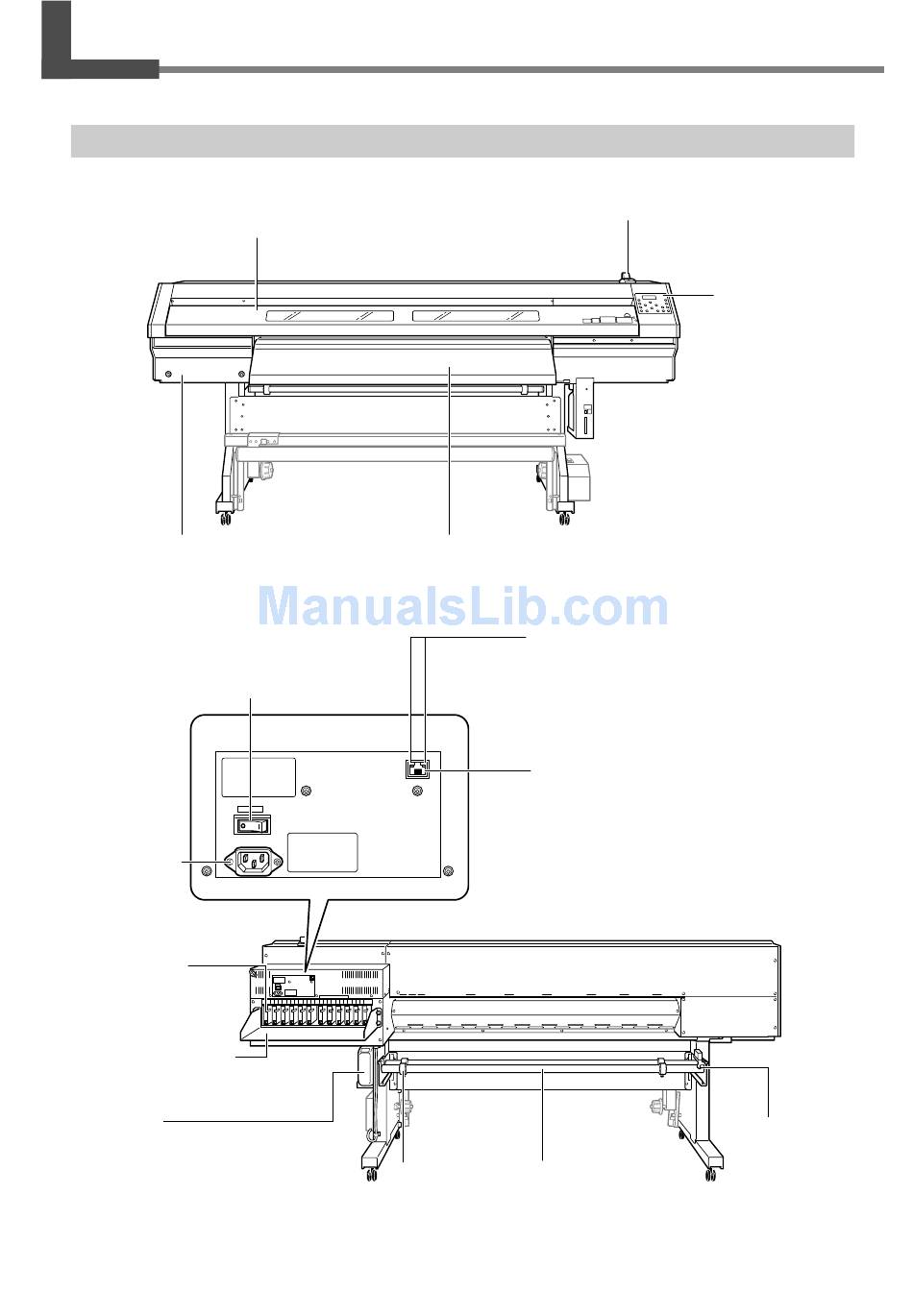

1-2 Part Names and Functions

Printer Unit/Dryer

Front Cover
Be sure to close this when
you perform outputting.
Maintenance Cover
You remove this when you per-
form cleaning the print head.
Main Power Switch
P o w e r - c o r d
Connector
This supplies power
to the printer.
Cartridge Slots
This is where ink cartridges are
installed.
Ink-cartridge tray
Drain Bottle
This collects drained ink and
other such fluids.
Loading Lever
You operate this when you
load media.
Dryer
This heats the media to hasten
ink-drying.
Link Indicator
These LEDs indicate the network-connection sta-
tus. The green link LED lights up when connected
reliably. While receiving data, the yellow status
LED flashes.
Ethernet Connector
This is used to connect the
printer to a network.
Stopper Shaft
Operation Panel
You use this to perform
various operations.
P.25 "Operation panel"
Brake
This helps to ensure
stable media feed.
Chapter 1 Introduction 23
