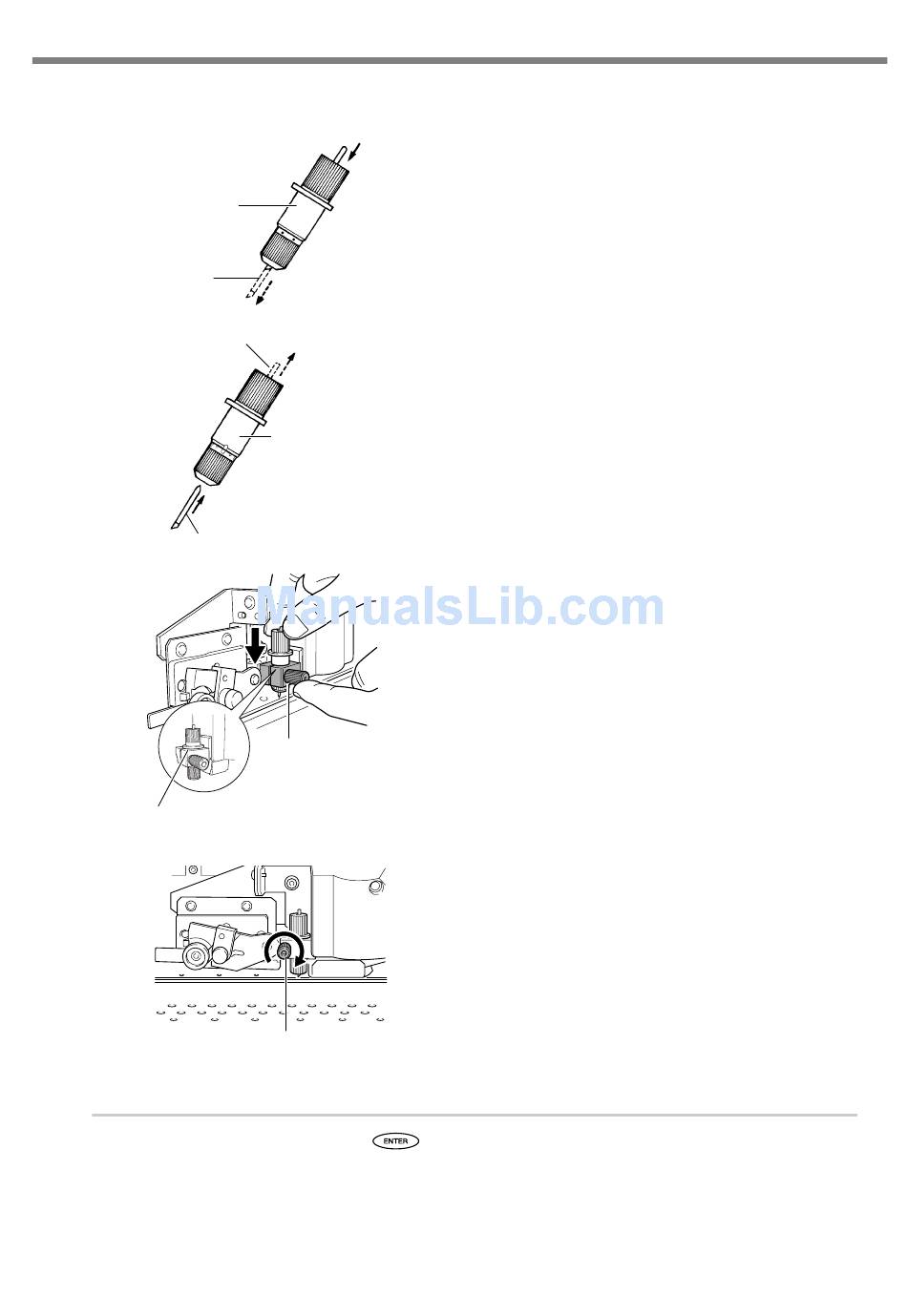

Blade holder
Old blade
Push-pin
˜
New blade
Insert until the collar is
flush with the surface.
š
3.
Quit the [REPLACE KNIFE] menu.
Close the front cover, and press
Remove the old blade.
Press this pin
Install a new blade.
It snaps into place with
an audible click.
Blade holder
Reinstall the blade holder.
If installed without supporting the screw in this way, cutting quality
may become poor.
Screw
Tighten the screw.
Tug the blade holder upward to make sure it does not come loose.
Screw
.
5-4 Replacing Consumable Parts
Chapter 3 Maintenance and Adjustment
75
