6.8.1

Welding torch connection

Item Symbol Description
1
2
3
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert central plug of the welding torch into the central connector and screw together with crown nut.
• Lock connecting nipples of the cooling water tubes into place in the corresponding rapid-action closure
couplings:
Return, red, to rapid-action closure coupling, red (coolant return) and
Return, blue, to rapid-action closure coupling, blue (coolant supply).
For the PHOENIX 330, the coolant hoses are connected directly to the cooling module.
• Insert the welding current plug on the combi torch into the "-" welding current connection socket and
lock by turning to the right.
• Insert the welding current plug on the welding torch into the welding current connection socket and
lock by turning to the right.
• Insert cable plug on the workpiece lead into the welding current socket "+" and lock by turning to the
right.
Item No.: 099-005073-EWM01
0
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
Connection socket, "-" welding current
• MIG/MAG welding:
• MMA welding:
• TIG welding:
Connection socket, "+" welding current
• MMA welding:
• TIG welding:
3
2

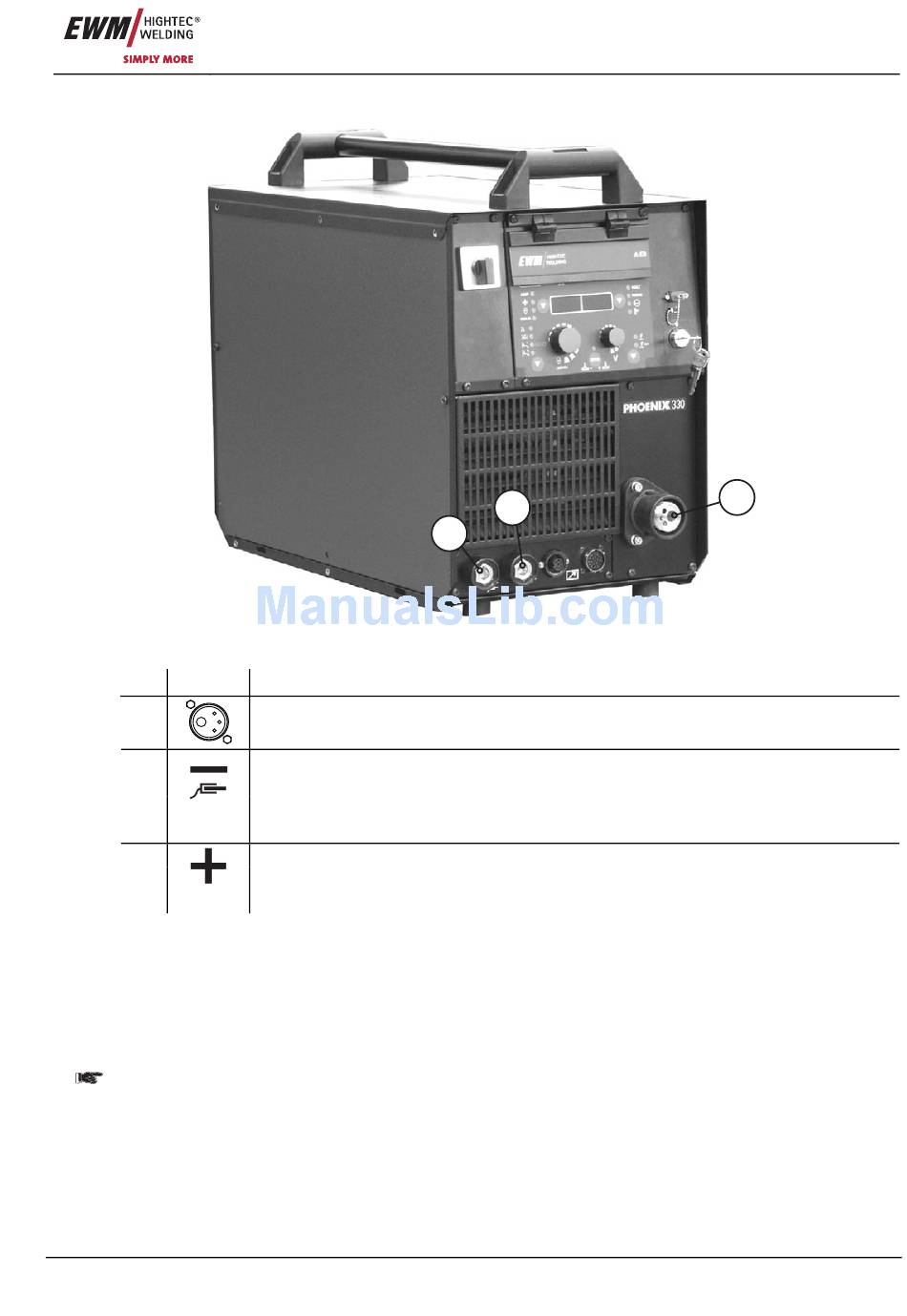

Figure 6-9
Workpiece connection
Workpiece or electrode holder connection
Welding current connection for welding torch
Workpiece or electrode holder connection
Workpiece connection
Commissioning
TIG welding
