6.7.3

Fixing of the pin reel (adjustment of the pre-tensioning)

As the spool brake at the same time also secures the wire spool retainer, the following working
steps are to be carried out for every spool change and before every adjustment of the spool
brake.
Item Symbol Description
1
2
3
• Loosen the Allen screw of the securing and braking unit till the screw comes out of the thread in the
spool holder retainer (but do not screw it out completely to prevent losing it).
• Pre-tension the securing and braking unit in the spool holder retainer by making at least 4 complete
turns of the Allen screw (4 x 360°) in the clockwise direction.
Item No.: 099-005073-EWM01
0
Securing and braking unit
Allen screw

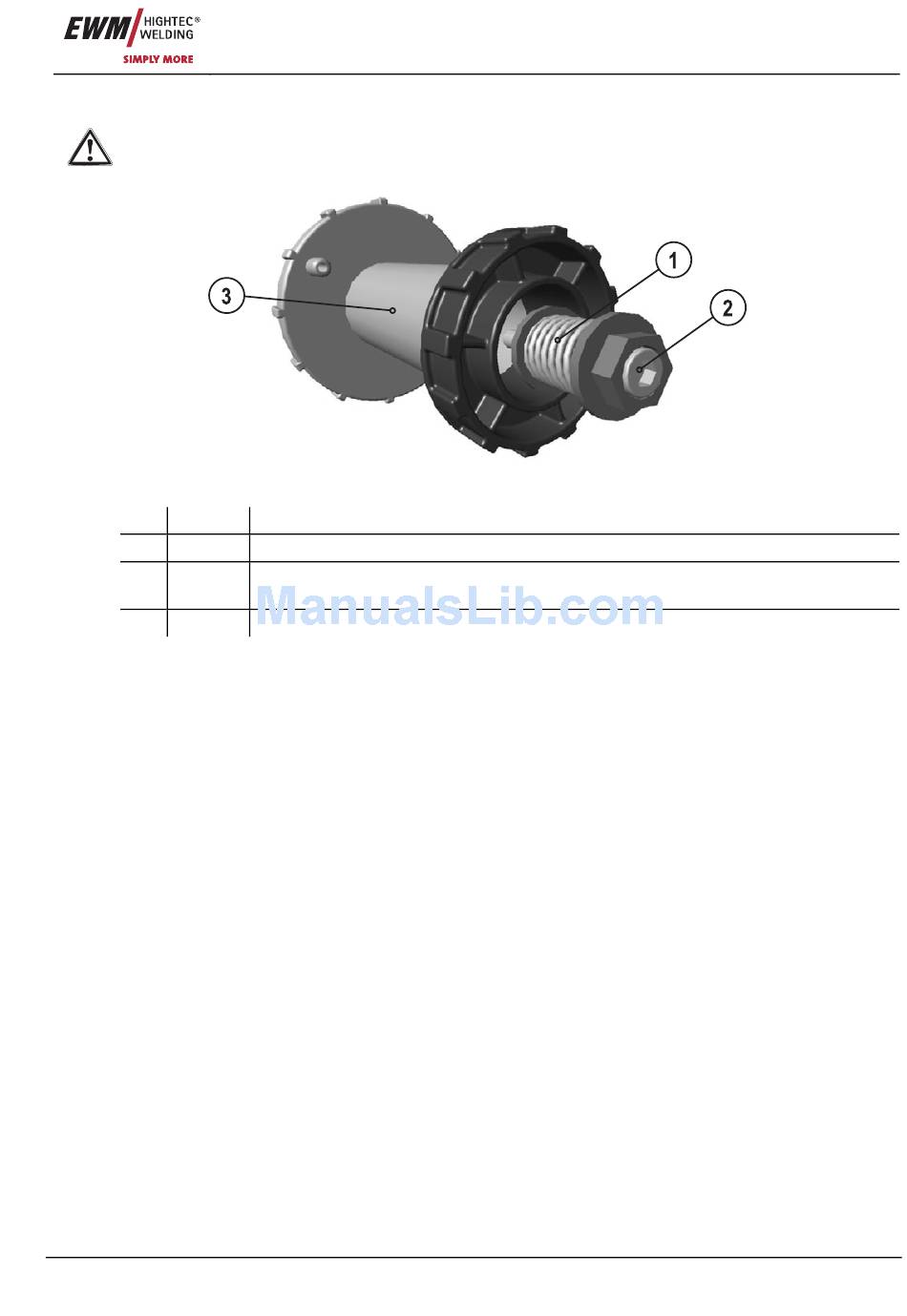

Securing the wire spool retainer and adjustment of the spool brake
Spool holder retainer
Figure 6-4
