Functional characteristics
MIG/MAG welding

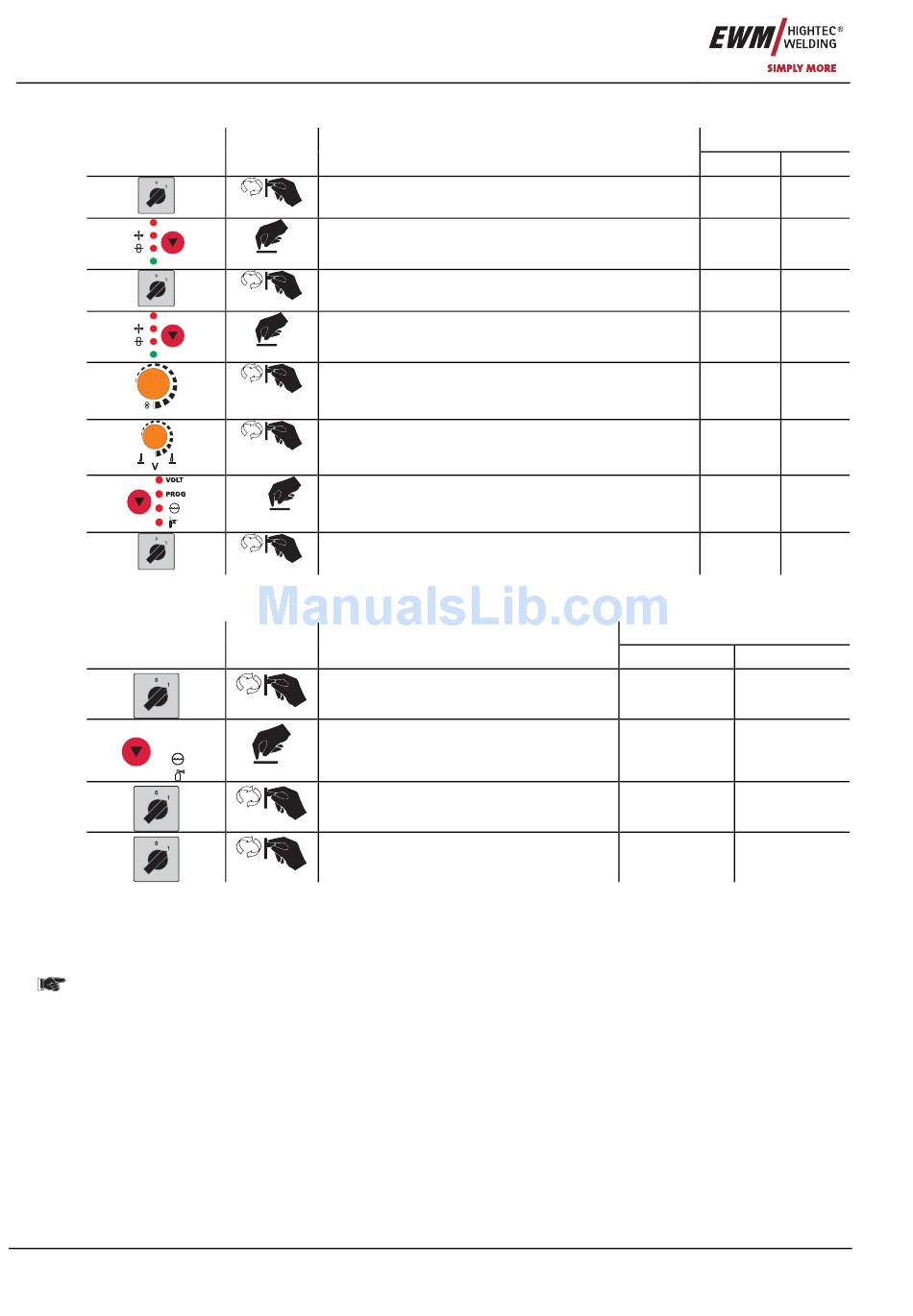

5.2.11.2 Selecting, changing and saving parameters

Operating
element
AMP
HOLD
AMP
HOLD
m/min

5.2.11.3 Reset to factory settings

It is possible to reset all special parameters back to the factory settings.
Operating
Element
VOLT
PROG

5.2.11.4 Ramp time for wire inching (P1)

The wire inching starts with a speed 1.0 m/min for 2 secs. It is subsequently increased to a ramp function
to 6.0 m/min. The ramp time can be set between two ranges.

5.2.11.5 Program "0", releasing the program block (P2)

In previous versions of the M3.70/M3.71 control system the block is dependent on the key switch
setting. With this version a block will only be effective when the locked status is active.
The program P0 (Potentiometer program) is blocked. The operation is possible only with P1...P15.

5.2.11.6 Display mode torch power control (P3)

The display of the torch power control shows program number or Up-Down setting in the normal
condition. It can be switched over to a blinking display. Then the program number and the welding type
(normal/pulse) are displayed alternately in the program operation. In Up-Down operation the Up-Down
settings and the Up-Down symbol are displayed alternately.
50
Action Result
Switch off the welding machine
Keep the key button pressed
Switch on welding machine
Release the key button
Parameter selection
(see list of special parameters)
Parameter setting
(see list of special parameters)
Saving the special parameters
1 x
Switch of the welding machine and restart in order
to put the modifications into effect
Action Result
Switch off the welding machine
Press and hold button
Switch on the welding machine
Switch welding machine off and back
on again to activate the changes
Display
Left Right
- -
- -
- -
P 1 Value
P 1-x, Value
SCH
P x Value
PHO 371
- -
Display
left right
- -
- -
t1 on
- -
Item No.: 099-005073-EWM01
