EWM PHOENIX 333 PROGRESS PULS forceArc Operating Instructions Manual page 15

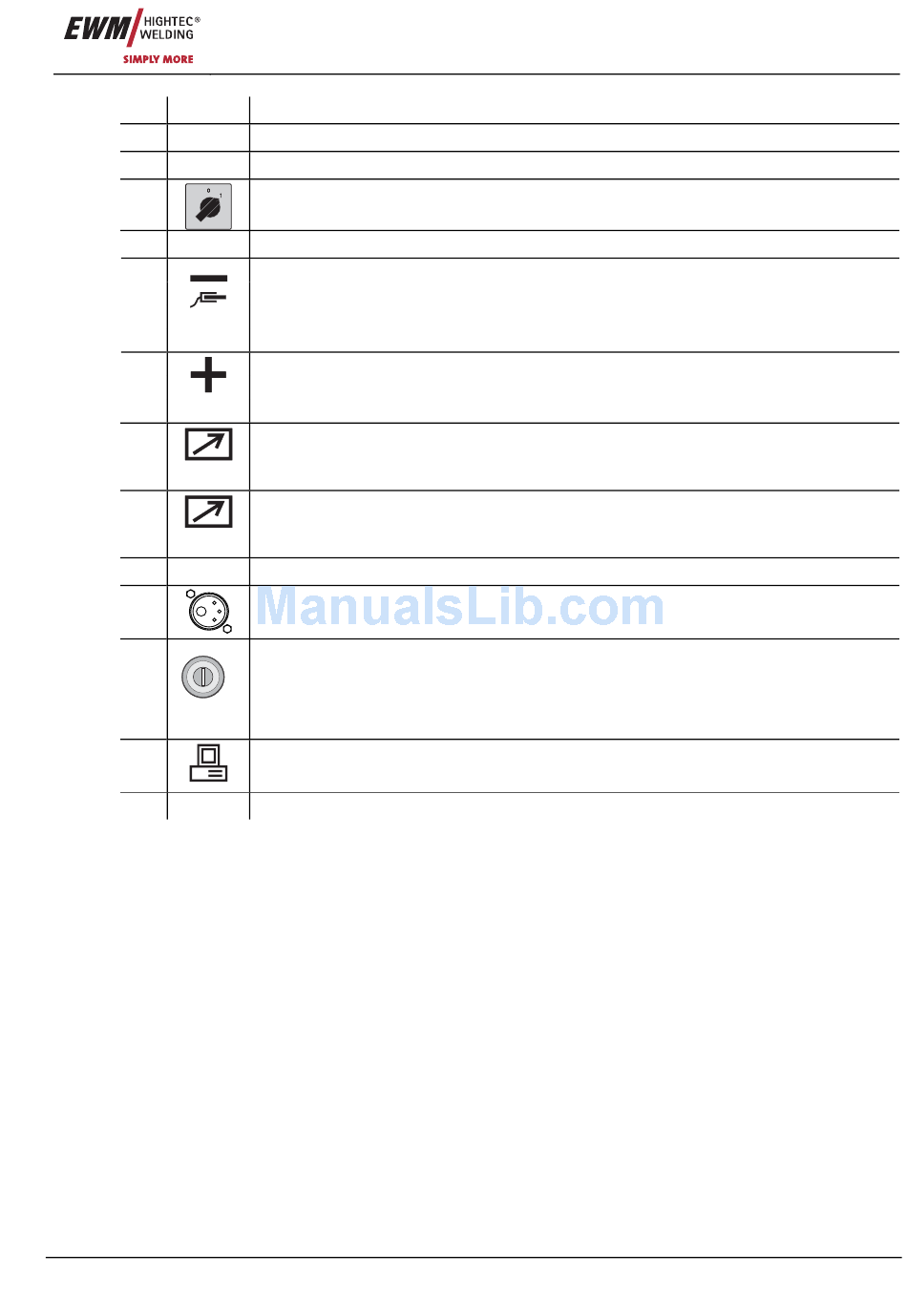

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
0
11
12
PC INT
13
Item No.: 099-005073-EWM01
0
Transport bar
Carrying handle
Main switch, machine on/off
Cooling air inlet
Connection socket, "-" welding current
• MIG/MAG welding:
• MMA welding:
• TIG welding:
Connection socket, "+" welding current
• MMA welding:
• TIG welding:
7-pole connection socket (digital)
For connecting digital accessory components (remote control, welding torch control
lead, etc.)
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, intermediate drive, etc.)
Rubber feet
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
Key switch for protection against unauthorised use
1 Position "1" > changes possible,
Position "0" > changes not possible.
Please take note of chapter "Key switch"
PC interface, serial (D-SUB connection socket, 9-pole), optional
Control / Operating elements (see chapter Function specification)
Workpiece connection
Workpiece or electrode holder connection
Welding current connection for welding torch
Workpiece or electrode holder connection
Workpiece connection
Machine description
PHOENIX 333 PROGRESS KG
15
