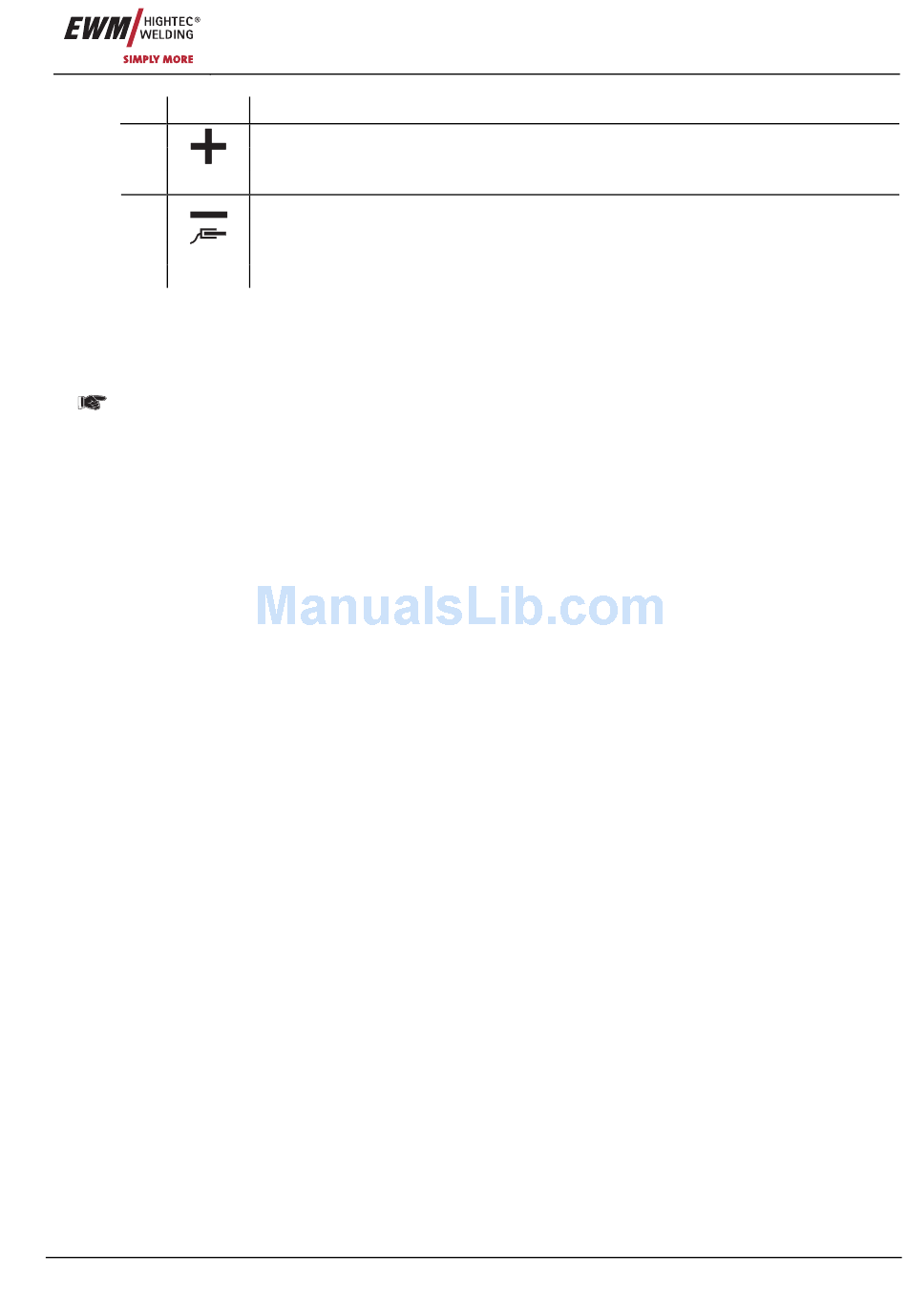

Item Symbol Description
1
2
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
Item No.: 099-005073-EWM01
0
Connection socket, "+" welding current
• MMA welding:
• TIG welding:
Connection socket, "-" welding current
• MIG/MAG welding:
• MMA welding:
• TIG welding:
Workpiece or electrode holder connection
Workpiece connection
Workpiece connection
Workpiece or electrode holder connection
Welding current connection for welding torch
Commissioning
MMA welding
