5.
Attach the speaker wires to the captive screw connector —
ATTENTION:
Do not tin the wire leads before installing into the
connector. Tinned wires are not as secure in the connector and
could be pulled out.
ATTENTION : Ne pas étamer les conducteurs avant de les insérer
dans le connecteur. Les câbles étamés ne sont pas aussi bien fixés
dans le connecteur et pourraient être retirés.
Number of Wires per
Connection Point
1
2
4

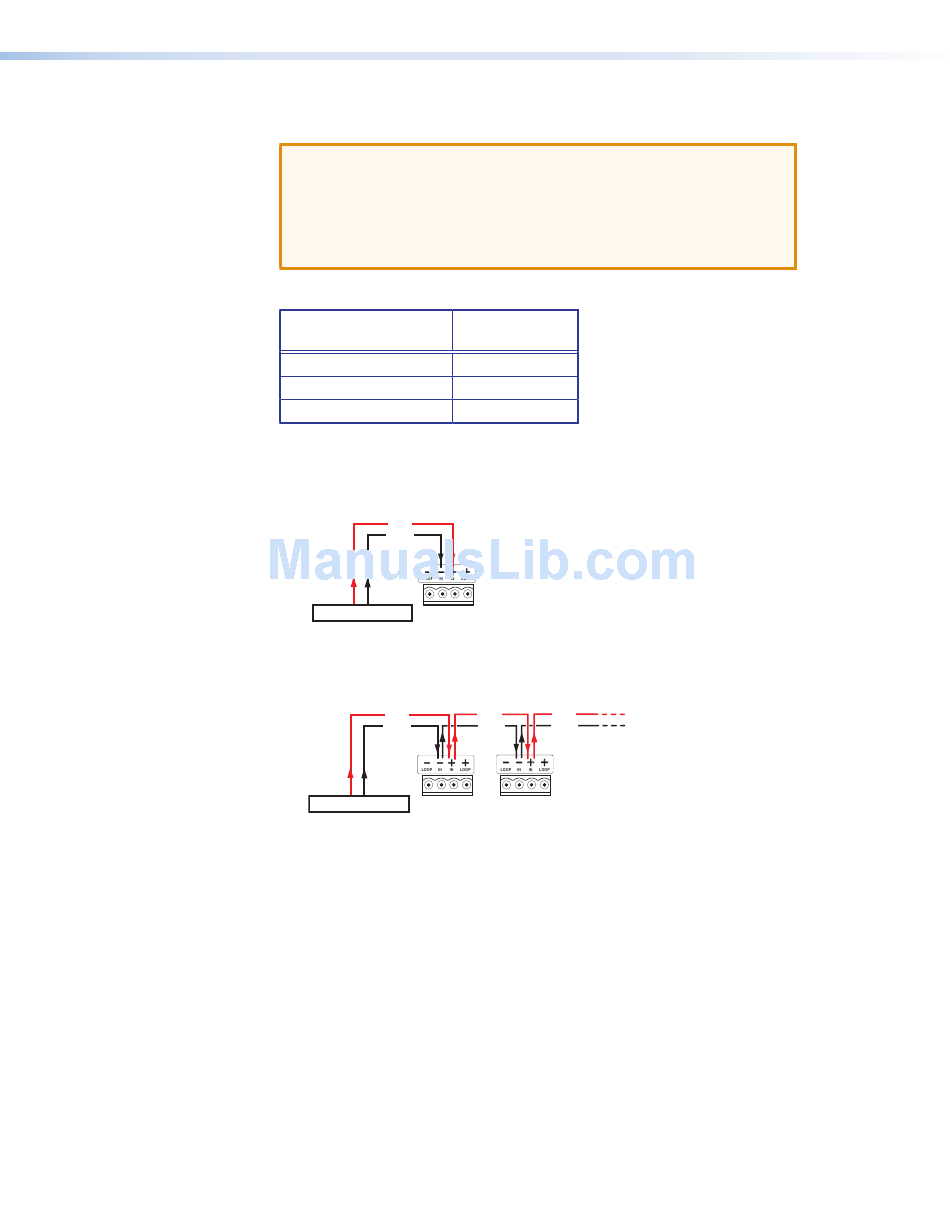

Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:
Wiring a Single Speaker: Connect the wires to the captive screw connectors of
•
the speaker as shown in figure 36. Be sure to tighten the screws.
(Red)
(Black)
Power Amplifier
Speaker 1
Wiring a Single Speaker
Figure 36.
Wiring a Single Speaker
Wiring Multiple Speakers in Parallel: Connect the wires to the captive screw
•
connectors of the speakers, as shown in figure 37. Be sure to tighten the screws.
(Red)
(Black)
Power Amplifier
Speaker 1
Wiring Multiple Speakers in Parallel
Figure 37.
Wiring Multiple Speakers in Parallel
In the parallel configuration, all of the speakers downstream of the one being
tested continue to function even when it is disconnected. This is especially useful in
installations where the system can never be completely down, such as in a hospital
setting.
Maximum Wire
Gauge
12 AWG
16 AWG
18 AWG
(Red)
(Red)
(Black)
(Black)
Speaker 2
CS 26T Plus and CS 120P User Guide • Installation
25
