User Manual
SM 26 • Setup Guide
NOTE:
Unless otherwise stated, mounting hardware is not included.
This setup guide contains installation information about the Extron SpeedMount
NOTE:
Installation and service must be performed by authorized personnel only.

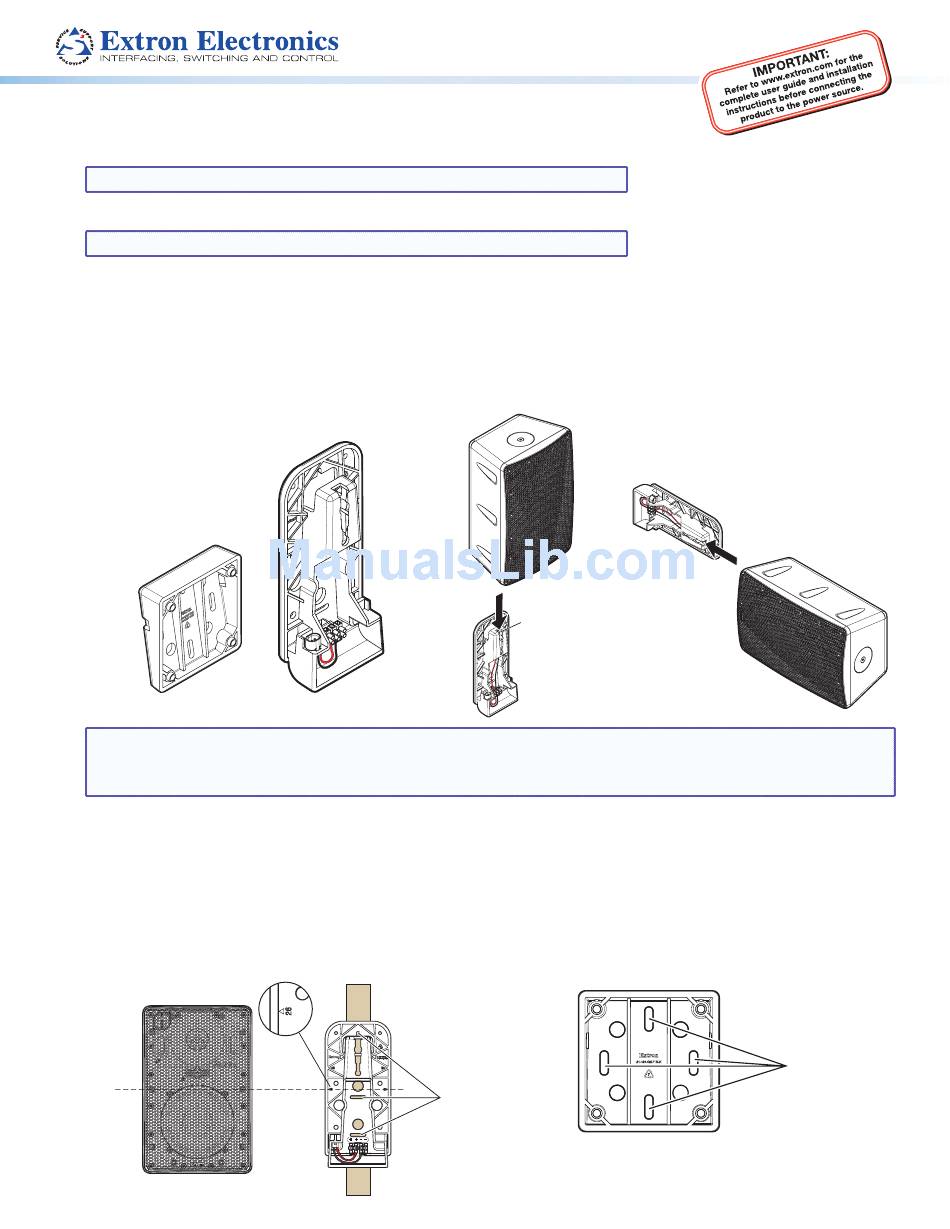

Installing the Speaker Mounting Plate
The SM 26 speaker comes with a flat mounting plate and an adapter for positioning the speaker 10° up, down, left, or right.
•
0° mounting plate — The flat (0°) mounting plate allows the speaker to be mounted flat on a suitable surface.
•
10° mounting adapter — The 10° mounting adapter allows the speaker to be installed at a 10 degree angle so that the
speaker can be pointed up, down, left, or right from an elevated position by rotating the adapter.
The mounting plate can be installed vertically or
horizontally as shown below right.
10° Mounting Adapter
NOTES:
•
Observe all applicable building codes and local ordinances when installing the speaker.
•
If mounting the SM 26 with the yoke mount, see the Yoke Mount Setup Guide.
Mounting to a Wall Stud
Locate the wall stud where the mounting plate will be installed.
1.
If using the 10° mounting adapter, position the adapter over the wall stud according to how the speaker will be angled and
2.
mark the positions of the pilot holes. See the figure below right for mounting hole locations.
If not using the adapter, position the mounting plate against the wall. The #26 arrow molded into the mounting plate indicates
the vertical midpoint of the SM 26 speaker when it is mounted on a wall stud. While positioning the mounting plate on the
wall, mark the location of two pilot holes using the holes indicated below.
SM26 Speaker
0° Mounting Plate
Stud
Mounting
Holes
+
+
–
–
33-0000-01 Rev. Ax1
LOOP
IN
IN
LOOP
SM 26 speaker.
®
Catch Tab
Vertical Mounting
Product Category
Horizontal Mounting
Mounting
Holes
1
Advertisement
Related Manuals for Extron electronics SM 26
Summary of Contents for Extron electronics SM 26
-
Page 1: Installing The Speaker Mounting Plate
Installation and service must be performed by authorized personnel only. Installing the Speaker Mounting Plate The SM 26 speaker comes with a flat mounting plate and an adapter for positioning the speaker 10° up, down, left, or right. • 0° mounting plate — The flat (0°) mounting plate allows the speaker to be mounted flat on a suitable surface. - Page 2 SM 26 • Setup Guide (Continued) NOTE: A speaker wire access hole (see the following figures) must also be cut in the wall. Mark that hole location now with the mounting plate positioned on the wall while ensuring that the wall stud does not interfere with the wire routing and that the mounting plate hides the access hole.
-
Page 3: Attaching A Secondary Support Cable
Attaching the Speaker to the Mounting Plate ATTENTION: By default, the SM 26 speaker is shipped unlocked. When mounting the speaker to the mounting plate, be sure that the speaker is unlocked. Failure to place the speaker in the unlocked position prior to mounting the speaker will result in damage to the speaker lock... -
Page 4: Using The Security Key To Lock And Unlock The Speaker
Failure to place the speaker in the unlocked position will result in damage to the speaker lock mechanism should an attempt be made to mount the speaker. By default, the SM 26 speaker is shipped unlocked. Removing the Speaker from the Mounting Plate To remove the speaker from the mounting plate, you must unlatch the locking mechanism.
