b.
Attach each tape strip starting from the outer side of the CS 120P metal baffle, up
and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown in figure 9.

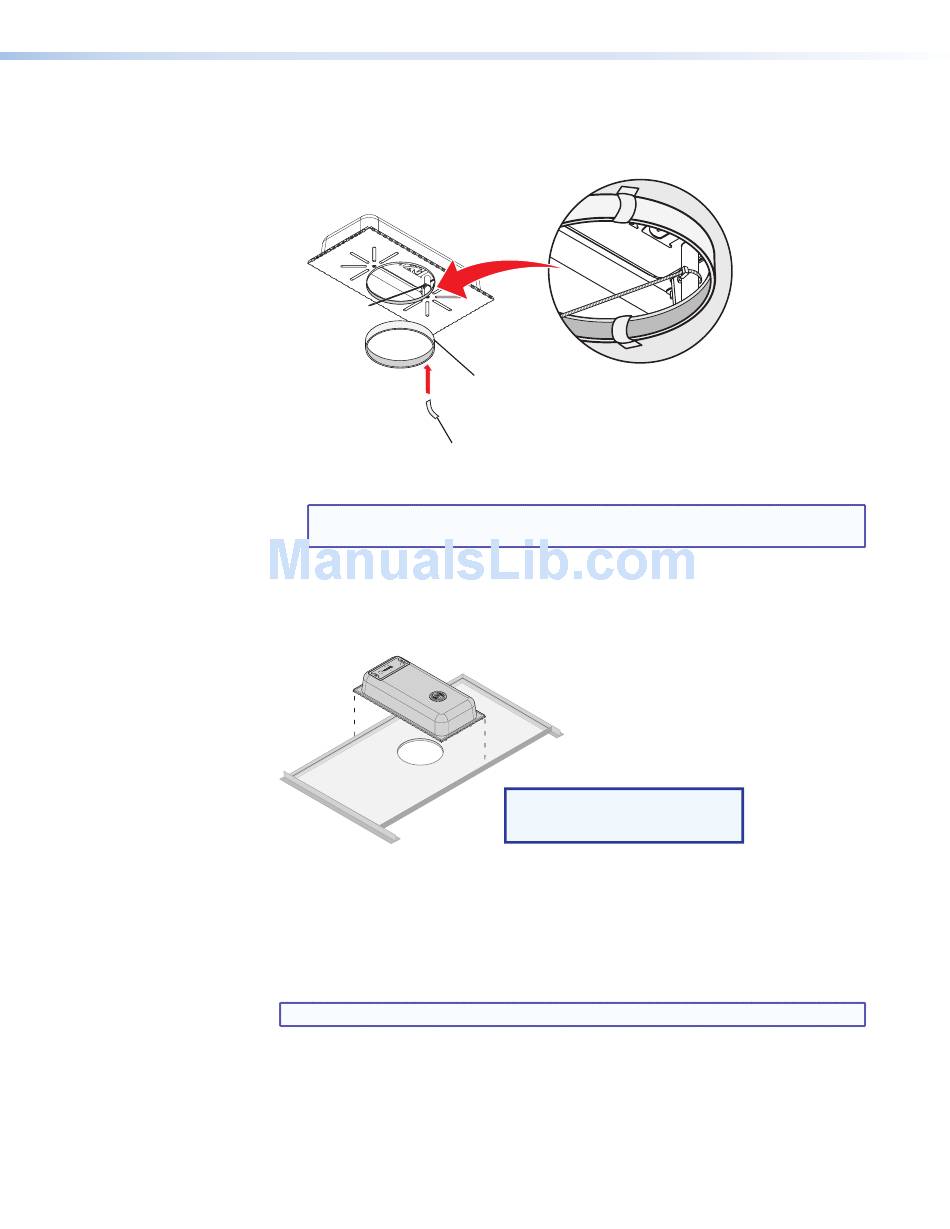

Figure 9. Attach Four Tape Strips to the Baffle and Port Ring Adapter
NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised
edges.
12. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile grid so
that the CS 120P is safely supported on the two short edges. Ensure that the hole in
the tile is aligned with the hole in the CS 120P (see figure 10).
Fig: Mounting the PRE
Figure 10. Mounting the CS 120P in a 2" x 4" (600 mm x 1200 mm) Ceiling
Grid
13. Route the speaker wires — Route the speaker wires through the ceiling tile hole.
14. Remove the speaker grille — Carefully remove the grille from the front of the
CS 26T Plus.
NOTE: Grille hooks are provided for grille removal, if needed.
strips
Fiberglass Tile Adapter
x 4 Tape
NOTE: 2' x 2' (600 mm x 600 mm)
grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.
CS 26T Plus and CS 120P User Guide • Installation 8
