SM 26 • Setup Guide

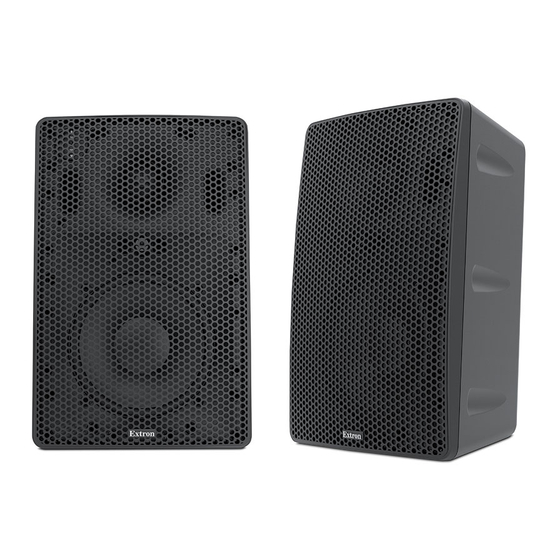

This setup guide contains installation information about the Extron SM 26 speaker.

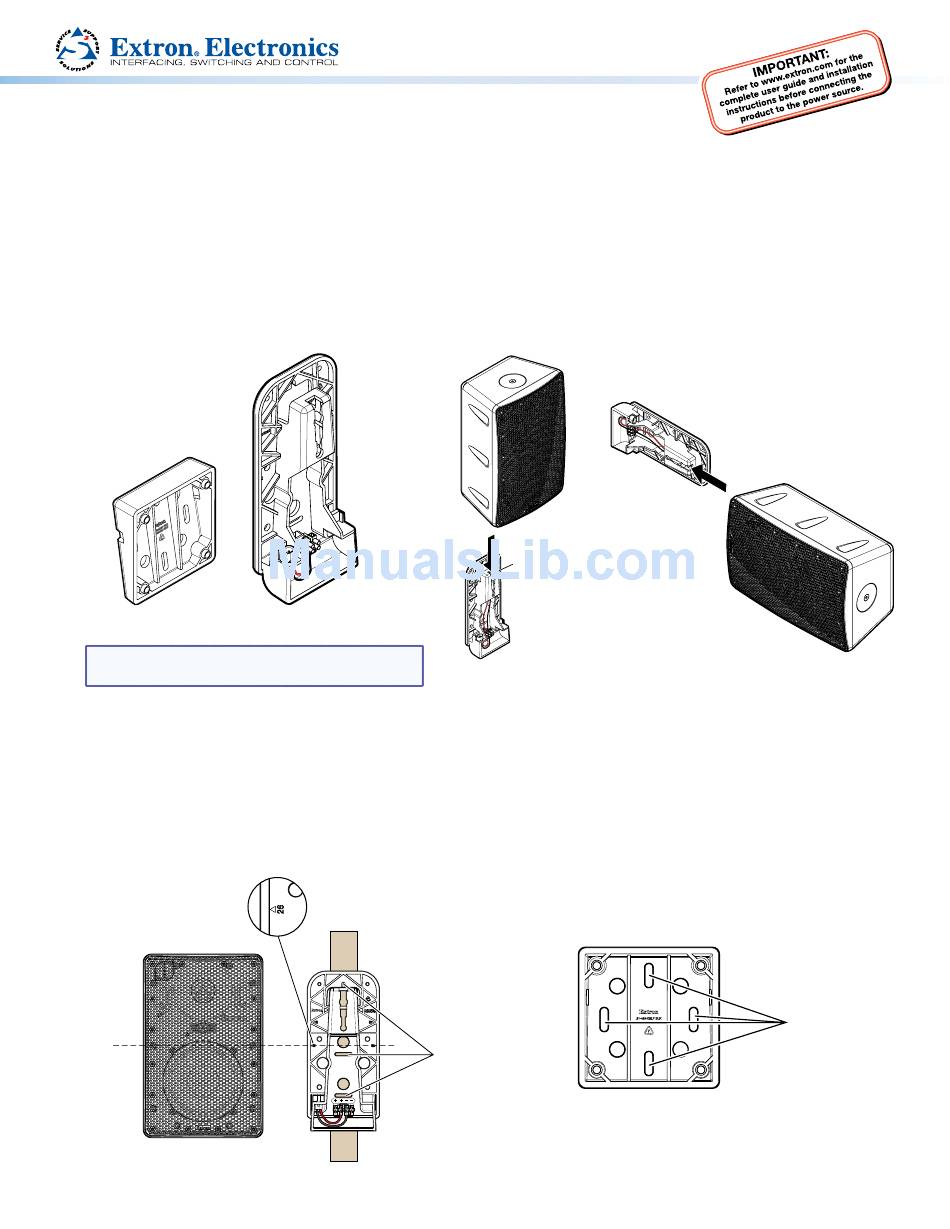

Installing the Speaker Mounting Plate

The SM 26 speaker comes with a flat mounting plate and an adapter for positioning the speaker 10° up, down, left, or right.
•
0° mounting plate — The flat (0°) mounting plate allows the speaker to be mounted flat on a suitable surface.
•
10° mounting adapter — The 10° mounting adapter allows the speaker to be installed at a 10 degree angle so that the
speaker can be pointed up, down, left, or right from an elevated position by rotating the adapter.
The mounting plate can be installed vertically or horizontally as shown below right.
10° Mounting Adapter
NOTE:
Observe all applicable building codes and
local ordinances when installing the speaker.

Mounting to a Wall Stud

Locate the wall stud where the mounting plate will be installed.
1.
If using the 10° mounting adapter, position the adapter to the wall stud according to how the speaker will be angled and mark
2.
the positions of the pilot holes. See the figure below right for mounting hole locations.
If not using the adapter, position the mounting plate against the wall. The #26 arrow molded into the mounting plate indicates
the vertical midpoint of the SM 26 speaker when it is mounted on a wall stud. While positioning the mounting plate on the
wall, mark the location of two pilot holes using the holes indicated below.
SM26 Speaker
0° Mounting Plate
Stud
Mounting
Points
+
+
–
–
33-0000-01 Rev. Ax1
LOOP
IN
IN
LOOP
Catch Tab
Vertical Mounting
Product Category
Horizontal Mounting
Mounting
Holes
1
