In this configuration, all of the speakers downstream of the one being tested are
disconnected from the signal when it is disconnected. This is useful for
troubleshooting in three ways:
The system is sectioned for easier troubleshooting.
•
The source signal can be tested by connecting to the inner + (IN) and – (IN)
•
terminals of the captive screw connector, as shown in figure 16.
Red Wire (+) from Amplifier
Amplifier
Black Wire (-) from Amplifier
Signal Test Points

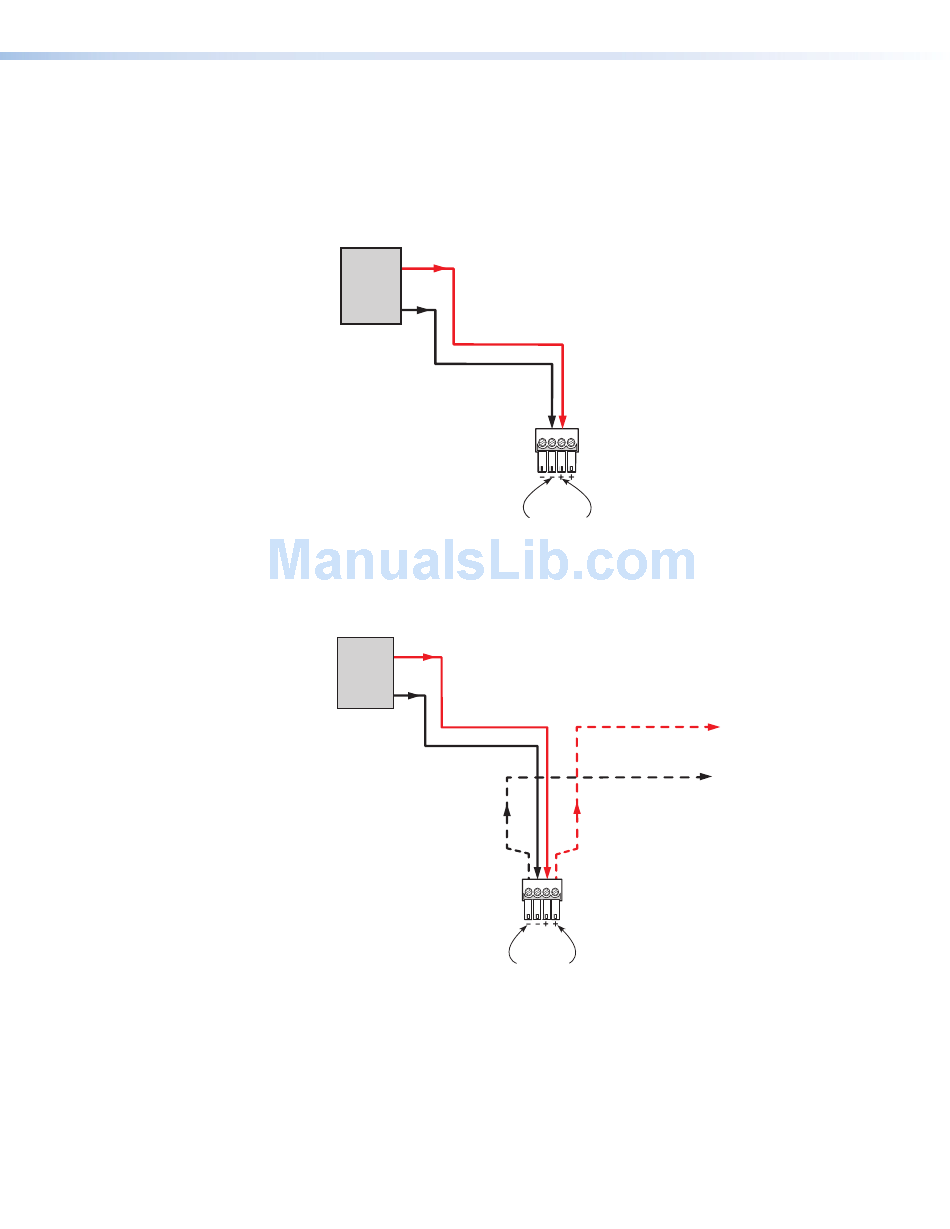

Figure 16. Signal Test Points — Loop-through Configuration
The impedance of the speakers downstream of the one being tested can be
•
measured while the system is on by connecting to the outer (LOOP) terminals
of the captive screw connector, as shown in figure 17.
Red Wire (+) from Amplifier
Amplifier
Black Wire (-) from Amplifier
Impedance Test Points
Figure 17. Impedance Test Points — Loop-through Configuration
Test Points
Test Points
CS 26T Plus and CS 120P User Guide • Installation
To next speaker(s)
11
