Using speaker wires without a conduit:
a. Secure the cable clamp adapter (included) to the cover plate.
b. Insert the wires through the clamp and cover plate, as shown in figure 7.
c. Tighten the clamp screws.

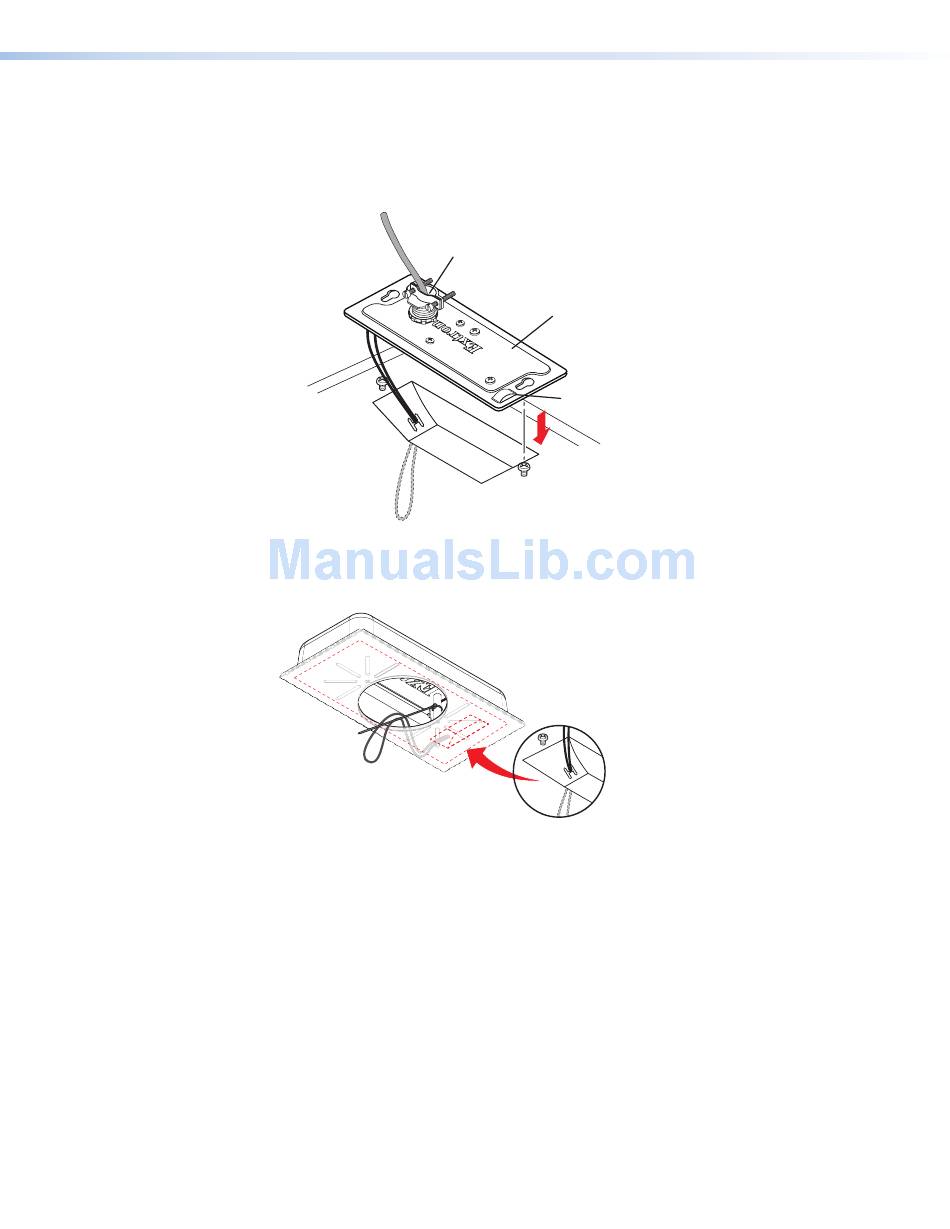

Figure 7. Routing the Cables Without a Conduit
9. Wire the CS 120P — Route the wires through the H-shaped opening in the CS 120P.
Be sure to leave sufficient slack.
Figure 8. Route the Wires Through the H-shaped Opening
10. Replace the terminal cover plate — Reinstall the terminal cover plate onto the
CS 120P and tighten the two screws that were previously loosened.
11. If the CS 120P is NOT being installed in a 1-inch (2.5 cm) thick fiberglass ceiling
tile, discard the fiberglass tile adapter and proceed to
If the CS 120P is being installed in a 1-inch (2.5 cm) thick fiberglass ceiling tile,
install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the
outer side of the lip of the port hole on the CS 120P as follows:
a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches
(10.2 cm) long.
Cable Clamp Adapter
Cover Plate
Seismic Cable Pass
Through Loop
Rear of Enclosure
CS 26T Plus and CS 120P User Guide • Installation
step 12 on the next page.
