17.
Insert the captive screw connector into the four-pole receptacle on the speaker
crossover board, see below.
2" x 4" Ceiling Tile

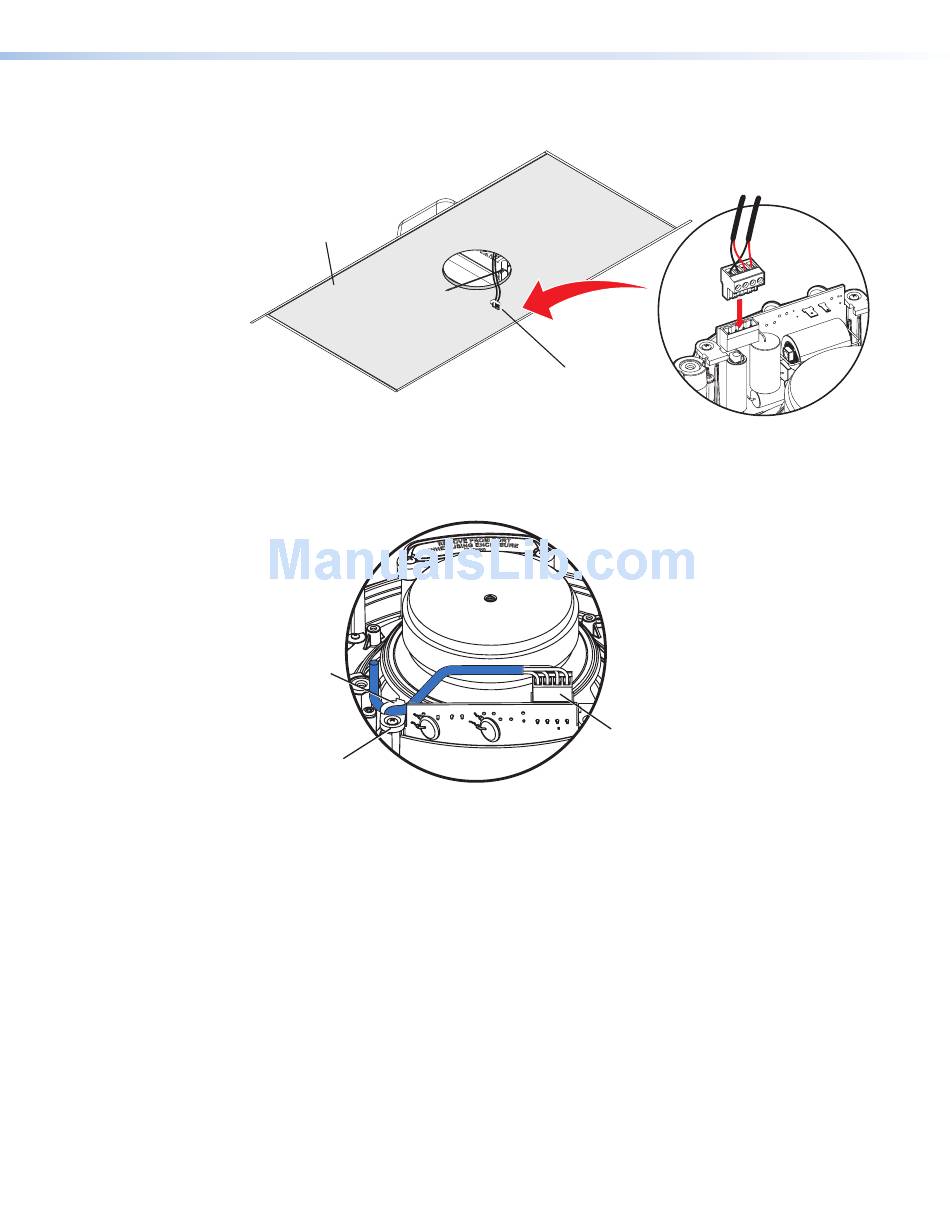

Figure 18.
Connecting the Wire from the CS 120P to the Speaker
18.
Attach the speaker wire to the strain relief tie down point using the provided zip
tie, see below.
Zip Tie
Strain Relief Tab
Figure 19.
Attaching the Speaker Wire to the Strain Relief Point
4 Pole Connector
Captive Screw
Connector
CS 26T Plus and CS 120P User Guide • Installation
12
