4. Cut a hole for the CS 26T Plus speaker. Use the provided cutout template to outline
the hole to be cut in the ceiling tile as described below. (If the ceiling tile will not be
installed during this phase of the installation, skip to
a. Remove the ceiling tile.
b. To find the center of the tile, use a tape measure to measure the space between
two opposite corners, and mark the half-way point.
c. Position the center hole of the cutout template directly over the center of the tile
that you marked in step 4b.
d. Using the provided cutout template, trace a circle on the ceiling tile as follows:
For installations in ceiling tiles that are NOT fiberglass: Trace a circle around
the CS 26T Plus cutout template.
NOTE: The fiberglass tile adapters are not needed and can be discarded.
For installations in 1-inch (2.5 cm) thick fiberglass ceiling tiles with the
CS 120P:
NOTE: A set of fiberglass tile adapters is provided with both the CS 26T Plus
and the CS 120P. Only one set is needed to install the CS 26T Plus with the
CS 120P kit in a 1-inch (2.5 cm) thick fiberglass tile. The adapter works
with 1-inch (2.5 cm) thick fiberglass tile.
i. Place the fiberglass tile adapter around the outer diameter of the template that
was positioned in step 4c.
ii. Trace a circle around the outer diameter of the adapter.
e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling.
5. Remove the adjacent ceiling tile — To facilitate the installation
process, remove the tile adjacent to the ceiling tile where the
CS 26T Plus will be installed.

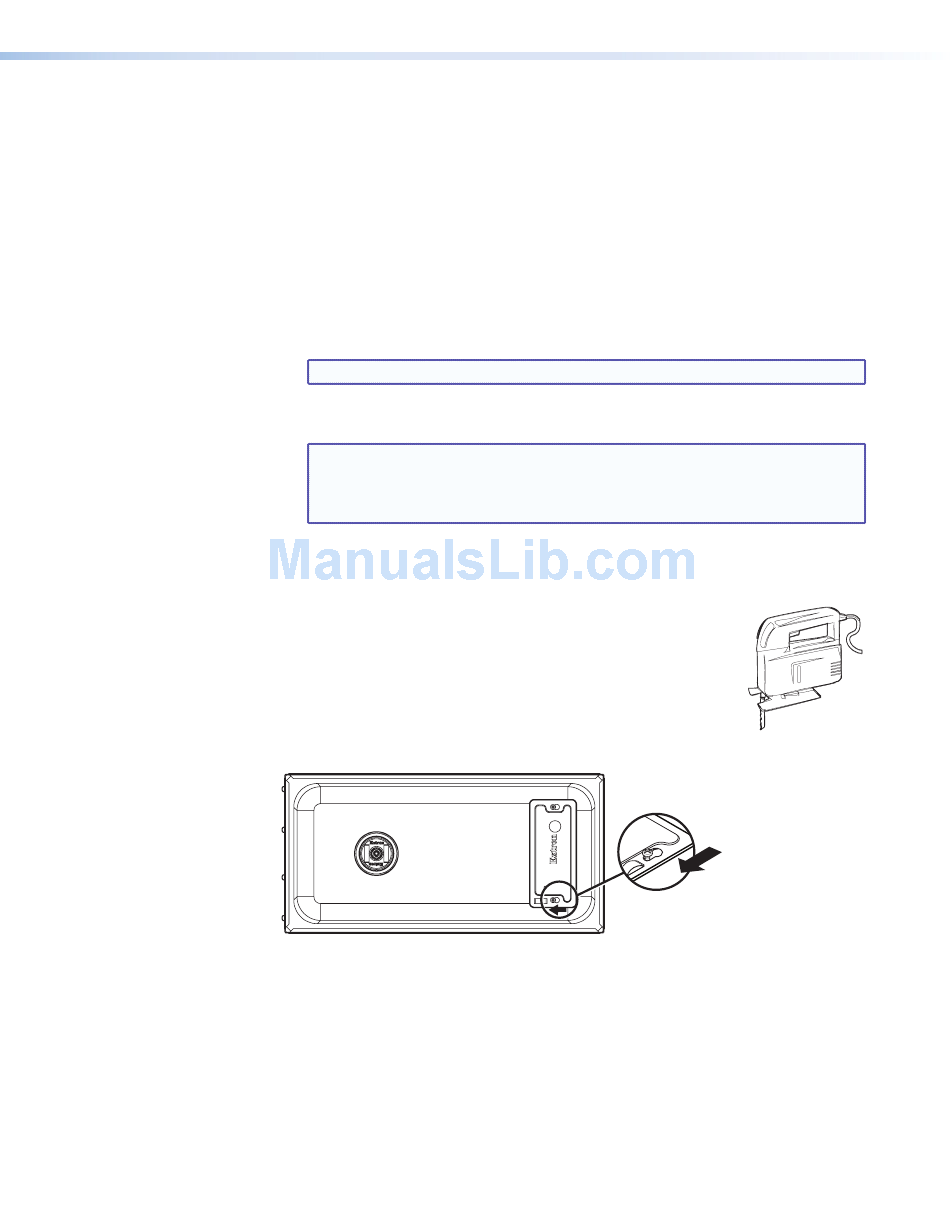

6. Remove the cover plate — Loosen (do not remove) the two
screws on the cover plate and remove it, as shown in figure 29.
Figure 29. Removing the Cover Plate
step 6.)
Cover Plate
CS 26T Plus and CS 120P User Guide • Installation
only
19
