21. Attach secondary support lines — If required, attach all of the secondary support
lines as shown below. Figure 23 shows the open back configuration and figure 24
shows the closed back configuration.
ATTENTION:
• Do not allow any slack in the secondary support line.
• Ne laissez pas de mou au niveau du filin de sécurité secondaire.
Secondary
Support Line

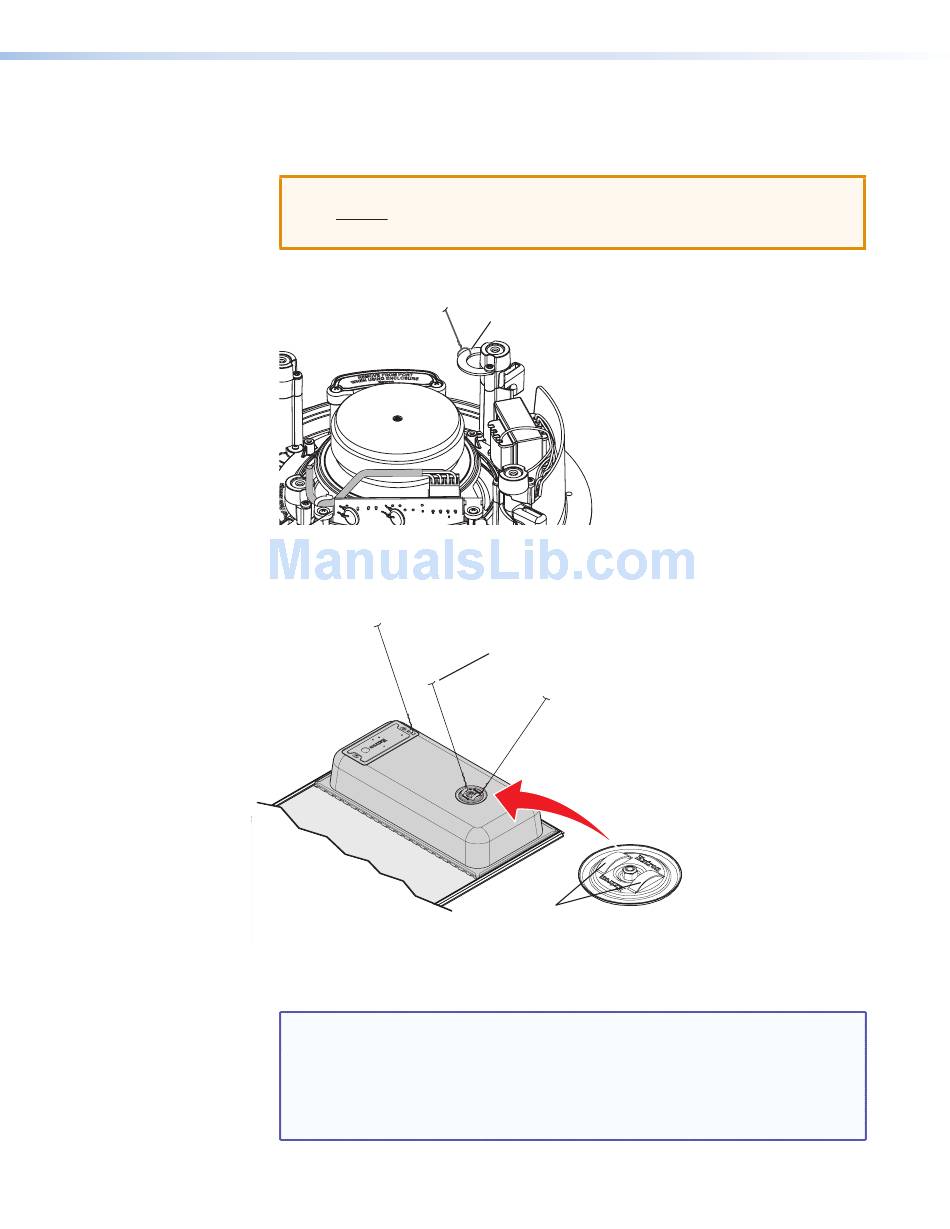

Figure 23. Attaching Secondary Support Lines: Open Back
Figure 24. Attaching Secondary Support Lines: Closed Back
NOTES:
• When placing the CS 120P on a tile grid with a grid face less than 15/16 inch
(24 mm) and no ceiling tile is installed, use the secondary attachment points
as hanger suspension points.
•
Observe all applicable building codes and local ordinances when installing the
speaker.
Secondary
Tie off Point
Anchor ends to suitable
solid secure points within the
permanent building structure.
Secondary Support
Cables (3)
Attach cables here
and secure.
CS 26T Plus and CS 120P User Guide • Installation 15
